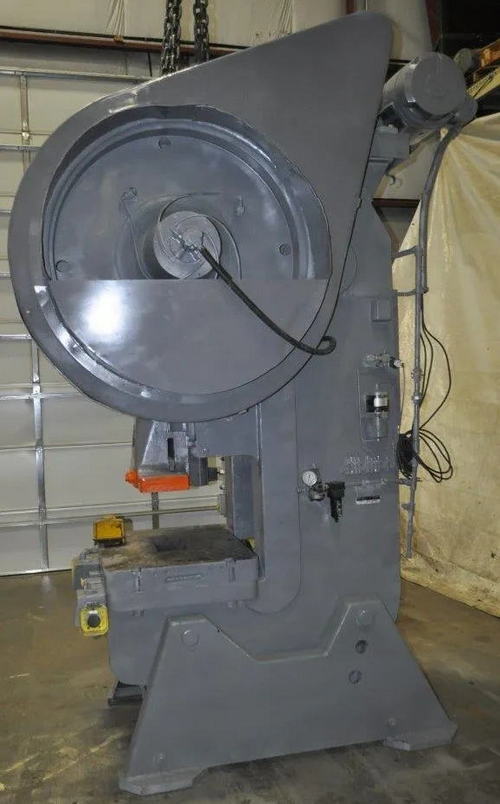

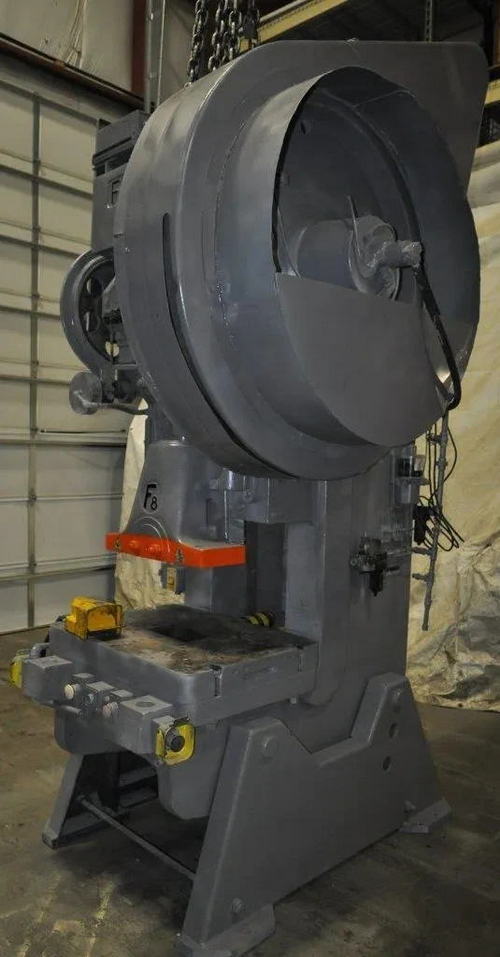

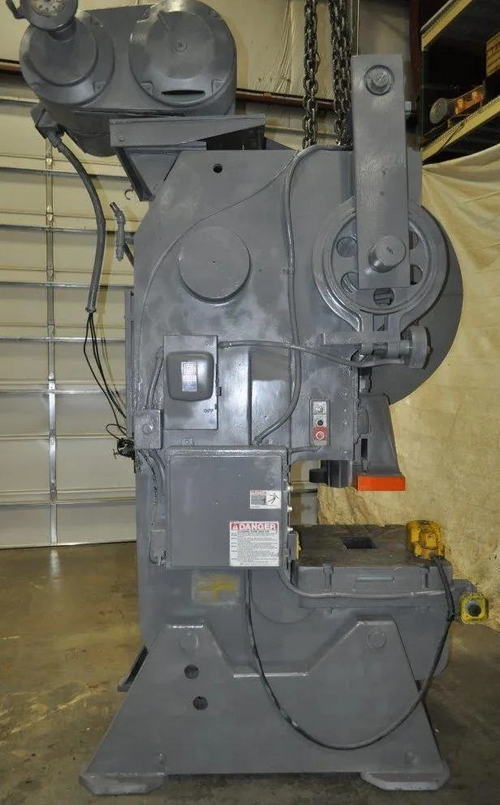

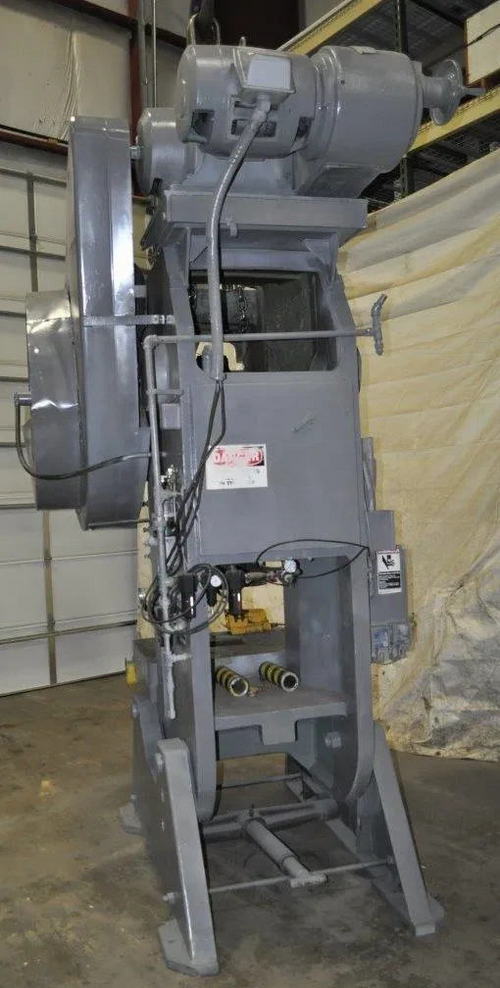

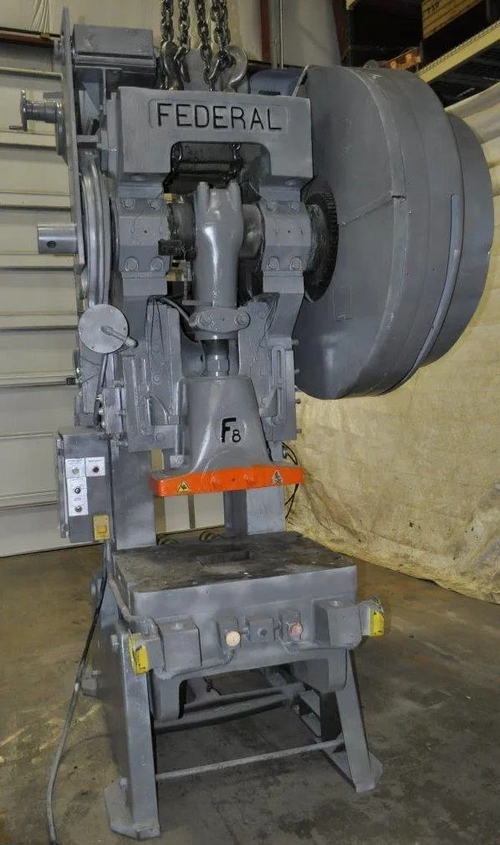

100 Ton FEDERAL OBI Press, 4" Str, 3" Adj, 15.5" SH, 36" x 28" Bed, 50-100 SPM   Our stock number: 53320

100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM

Click on picture below for larger version
100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM
100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM100 Ton FEDERAL OBI Press, 4 Str, 3 Adj, 15.5 SH, 36 x 28 Bed, 50-100 SPM

MODEL NUMBER: 8

SPECIFICATIONS:

Stroke: 4"
Ram Adjustment: 3"
Shut Height: 15.5"

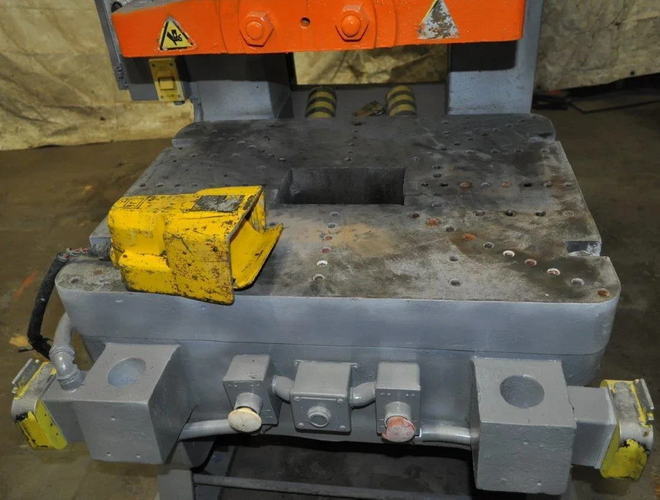

Bed Size: 36" x 28"
Ram Size: 24" x 14"
Throat: 15"
Strokes Per Minute: 50 to 100

EQUIPPED WITH:

Air Clutch
Air Brake
Air Counterbalances

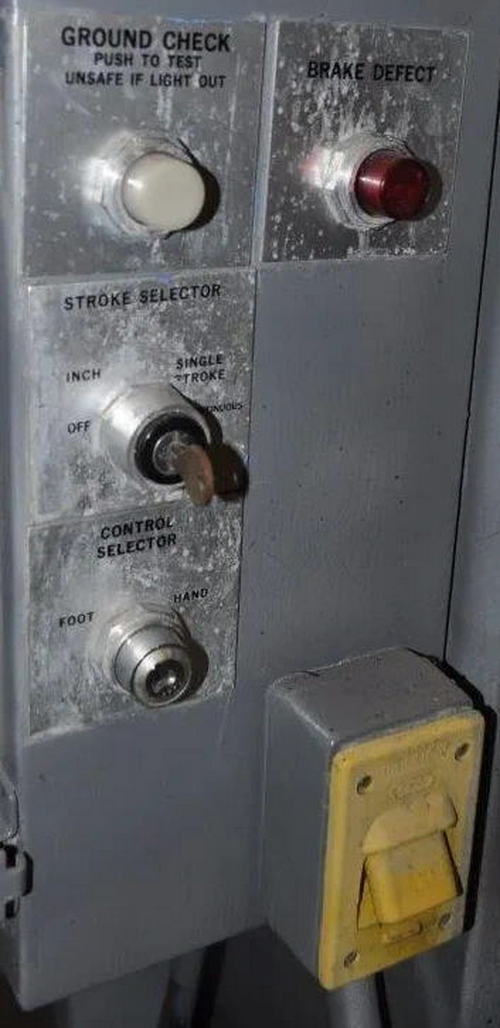

Dual Palm Buttons

OVERALL DIMENSIONS: 65" LR xc 96" x 118" High
WEIGHT: 17,000 Lbs.
