1" MEECO HD01 2R2M Straightening, Sizing and Polishing Machine, (2) 10 HP   Our stock number: 53318

1 MEECO HD01 2R2M Straightening, Sizing and Polishing Machine, (2) 10 HP

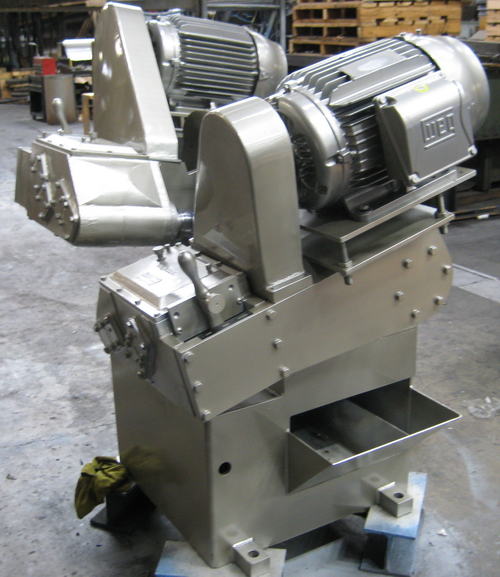

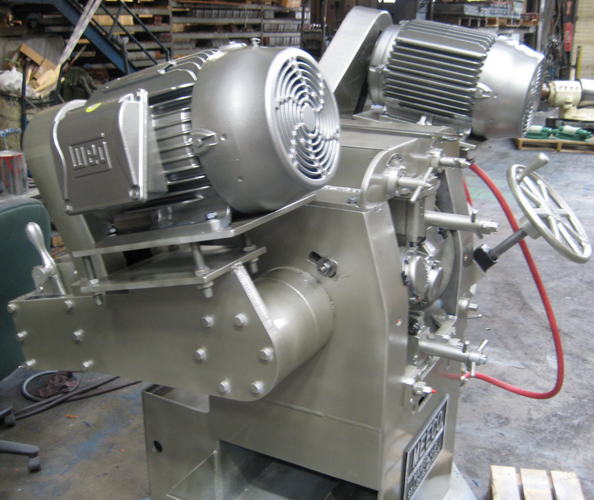

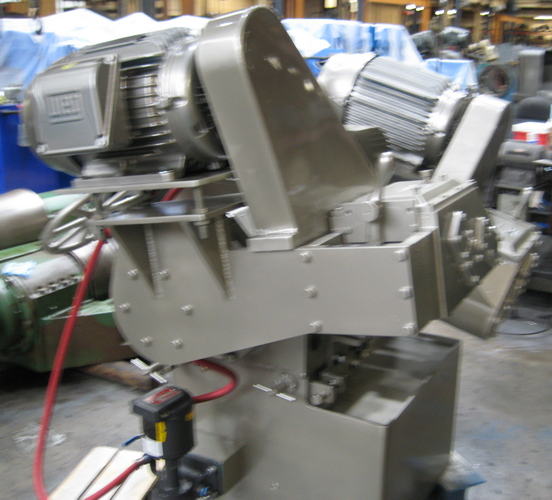

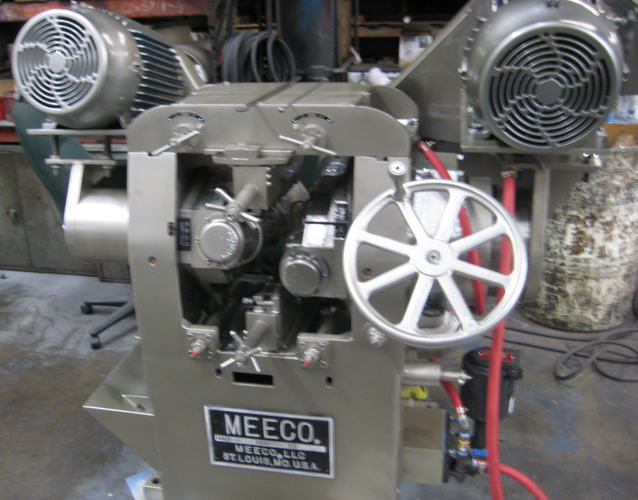

Click on picture below for larger version
1 MEECO HD01 2R2M Straightening, Sizing and Polishing Machine, (2) 10 HP1 MEECO HD01 2R2M Straightening, Sizing and Polishing Machine, (2) 10 HP1 MEECO HD01 2R2M Straightening, Sizing and Polishing Machine, (2) 10 HP

MODEL NUMBER: HD0A 2R2M

SPECIFICATIONS:

Capacity, Mild Steel: 3/16" to 1"

Roll Size: Straight - 7-1/2" L, 5-7/8" Dia., 2-1/4" Bore
Concave - 9" L, 6-1/8" Dia., 2-1/4" Bore

Gear Ratio: 1:1, 1.7:1, 2.3:1

Speed: 25 to 250 FPM

EQUIPPED WITH:

Built-In Coolant System
Machine Mounted Input Guide Tube Holder
Variable Speed Control
Spare HD0A Rolls and Yokes

AVAILABLE AT ADDITIONAL COST:

(6) Sets of Startup Guides, Cast Iron

MOTOR DATA: (2) 10 HP, 1200 RPM
V-Belt Drive For 50, 80, 115 FPM at 17 Degrees
with Automation Direct Controls
