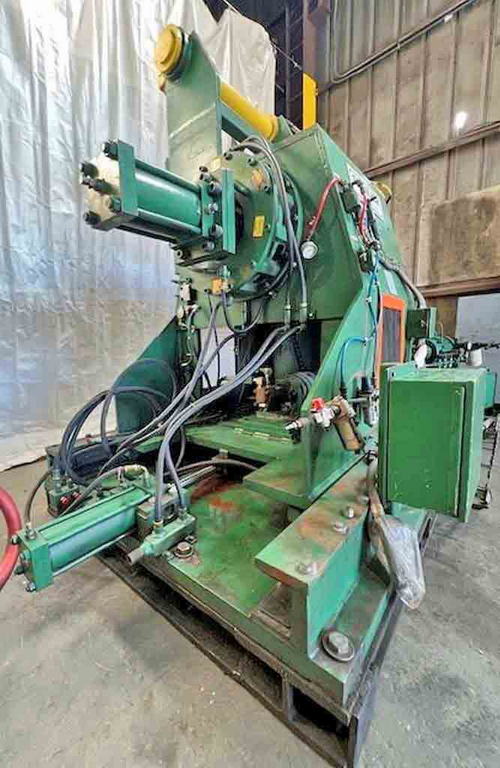

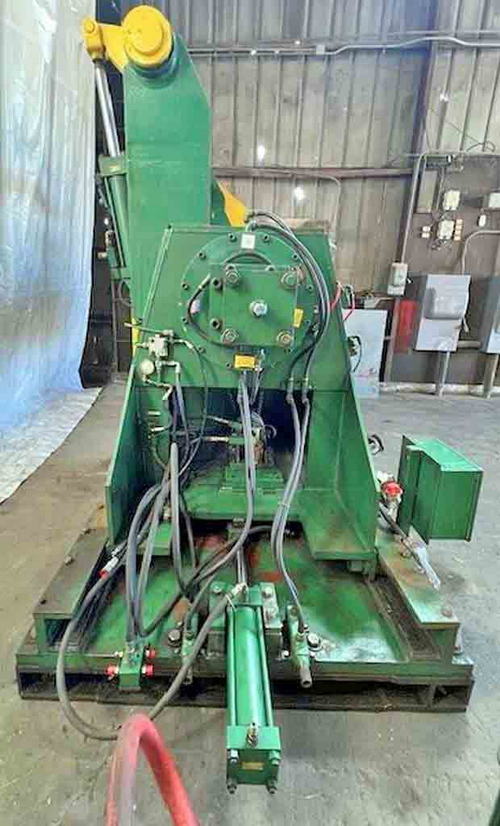

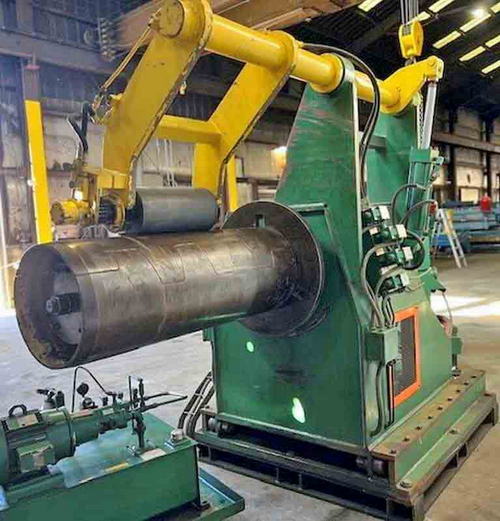

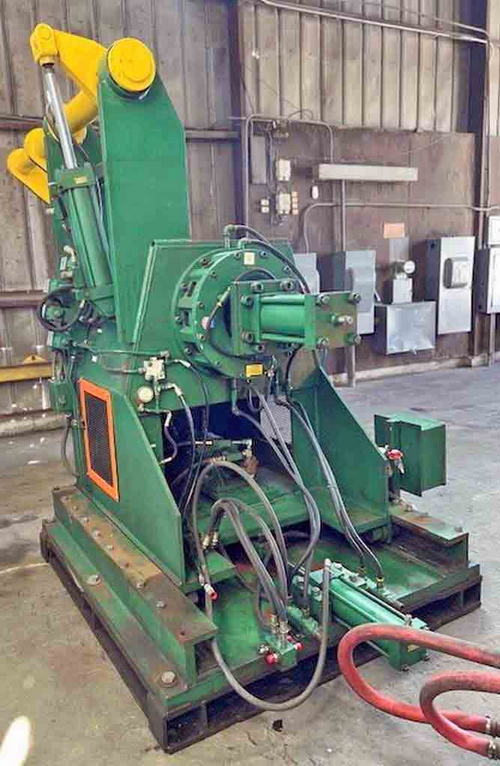

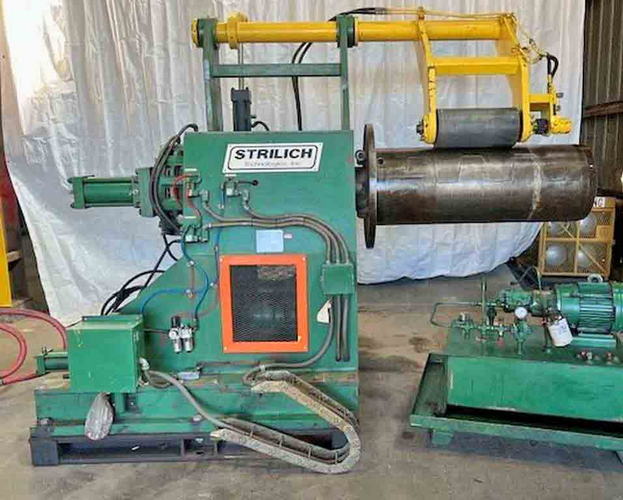

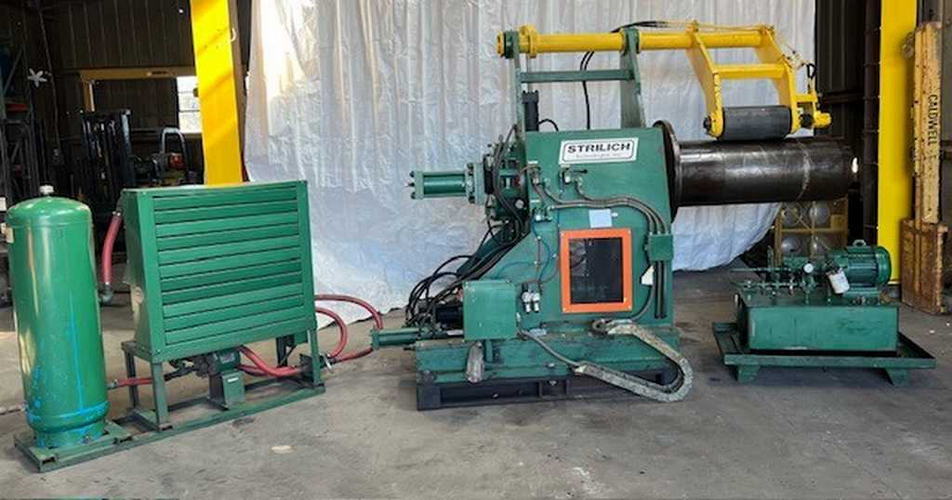

25,000 Lb STRILICH Uncoiler, 18.5" to 24.5" ID, 72" OD, 48" Width   Our stock number: 53296

25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width

Click on picture below for larger version
25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width
25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width25,000 Lb STRILICH Uncoiler, 18.5 to 24.5 ID, 72 OD, 48 Width

SPECIFICATIONS:

Weight Capacity: 25,000 Lbs.
Mandrel Expansion: 18.5" to 24.5"
Coil O.D., Max.: 72"

Main Shaft Diameter: 8.25"

Line Direction: Right-to-Left

EQUIPPED WITH:

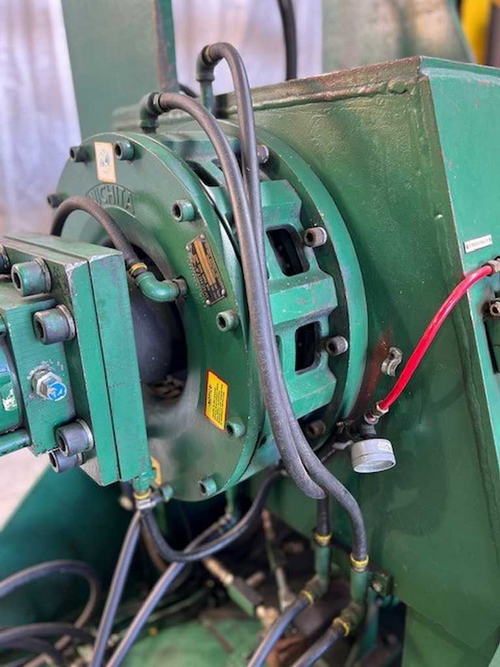

Wichita ATD-118 Kopper Kool

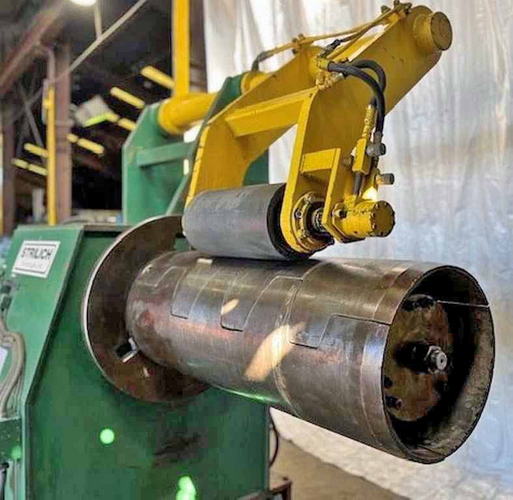

3-Leaf Mandrel
Hydraulic Wedge Type Expansion
Hydraulic Slide Base, 6" Travel
Hydraulic Motor Feed-Up, Chain Drive
Hydraulic Motor Driven Overarm Holddown Roll,
Urethane Covered Roll
50 Gallon Water Cooler with Radiator and Water Pump

MOTOR DATA: 7.5 HP Hydraulic Power Unit

OVERALL DIMENSIONS: 60" x 66" Base
