AGE: 1992
MODEL NUMBER: RT-2000
SPECIFICATIONS:
Tube Diameter: 1/2" to 3"
Wall Thickness: .018" to .125"
Line Speed, Max.: 400 FPM
Power Supply: 480/60/3
Material: Cold Rolled, Aluminum Coated, Mild Steel
Stainless Steel
Yield Strength, Max.: 40,000 PSI
Line Direction: Left-to-Right
ENTRY SYSTEM:
10,000 Lb. KENT Double Uncoiler:
Age: 1995
Model Number: SKD10000ROT95-2837
Coil I.D.: 17.5" to 20.5"
Coil O.D.: 72"
Coil Width, Max.: 12"
Hydraulic Driven
Hydraulic Unit
Shear & End Welder:
Strip Width, Max.: 9"
On Sliding Track

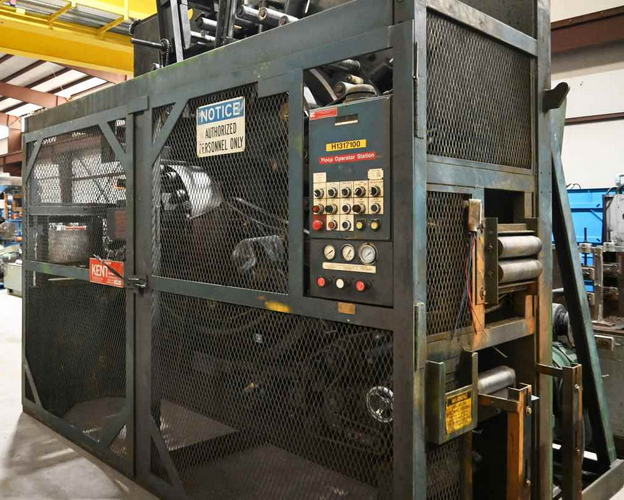

12" KENT Vertical Floop:
Model Number: R229E-RE
Strip Width, Max.: 12"
Drive Panel

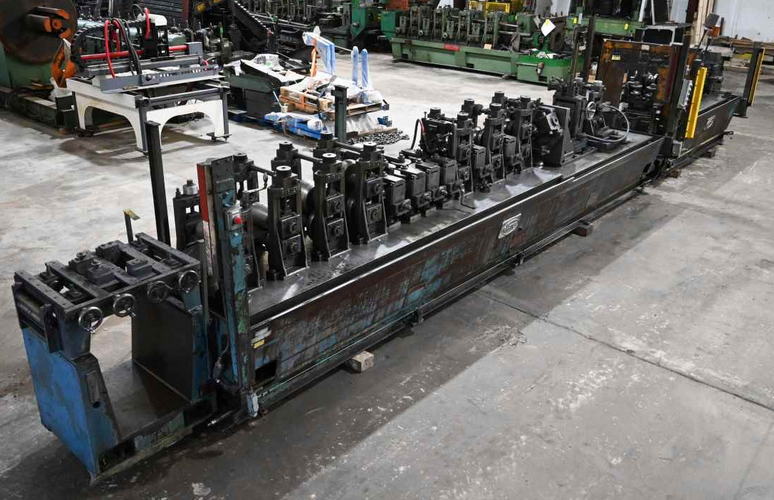

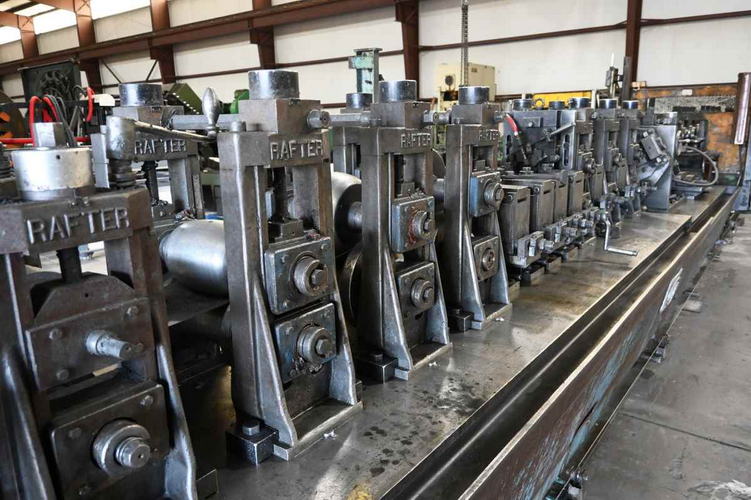

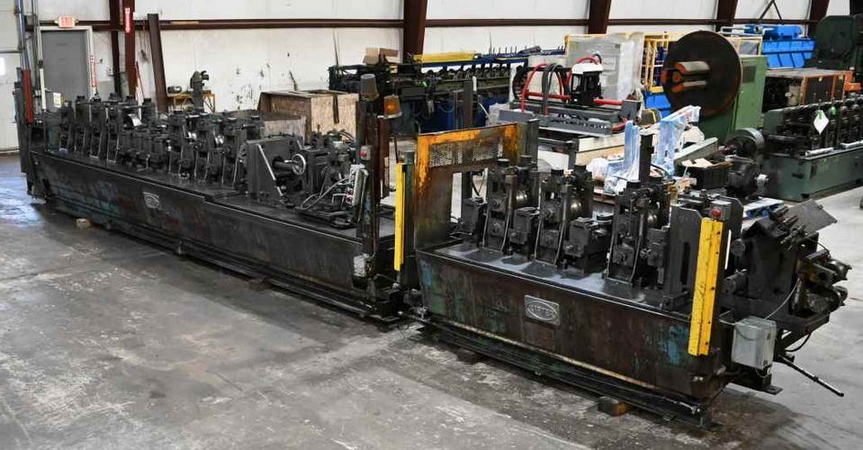

FORMING MILL:
ABBEY ETNA Entry Guide
(3) Driven Breakdown Stands with Single Point Adjustment
and 2" Diameter Shafts
(3) Driven Sizing Stands with Single Point Adjustment
and 2" Diameter Shafts
5:1 Gearbox Ratio (3 Breakdown, 3 Fin)
(6) Side Roll Stands, with Vertical Adjustment
WELDING SECTION:
3-Roll Weld Box

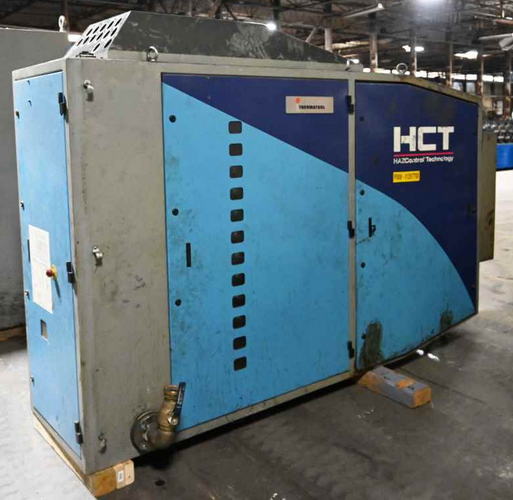

400kW THERMATOOL High Frequency Welder:
Age: 1997
Model Number: HCT400
Electrical Cabinet
Supercharger Heat Exchanger
Scarfing Unit
Remetalizer with Hydroton Wet Filter
3-Roll Ironing Stand, Parallel Top Shaft Adjustment
Squeeze Roll Cooling System
COOLING SECTION:
20' Flood-Type Cooling System
SIZING MILL:
(3) Driven Sizing Stands with 2" Diameter Shafts
and Single Point Adjustment
(3) 5:1 Ratio Gearboxes
(3) Side Roll Stand with Vertical Adjustment
2-Plane Turkshead
CUT-OFF SYSTEM:

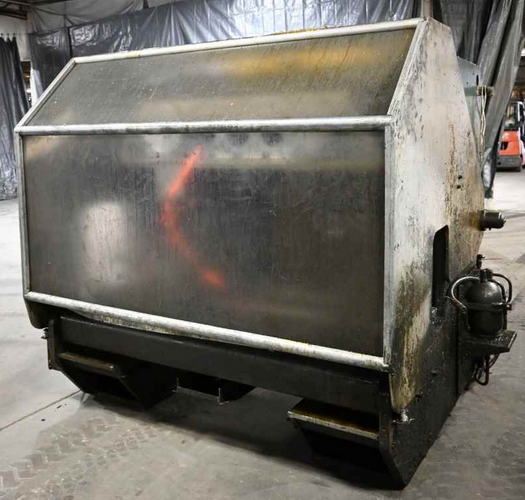

TRU-MOTION Cut-Off:
Age: 2003
Model Number: TRU-M50
Diameter, Max.: 4.125"
Wall Thickness, Max.: .08"
Stroke: 5"
Die Set
Accelerator
Control Panel
Single Dump Table, 2003
CHIP CONVEYOR:
Belt Width: 17"
Intake Height, Min.: 20"
Discharge Height: 44"
Length: 21'
BUCKEYE DEDIMPLER:
Model Number: 30-91049
Electrical Panel
2" Tooling on Machine
ELEVATOR CONVEYOR:
Adjustable Height
Control Panel
Walker Hydraulic Pump

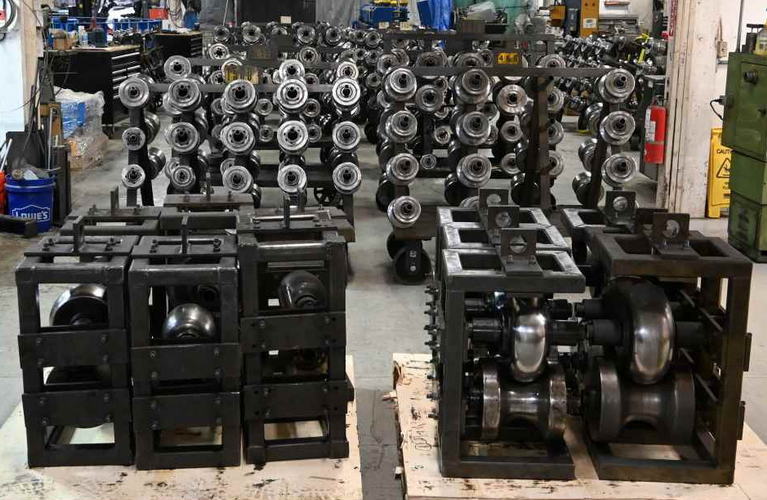

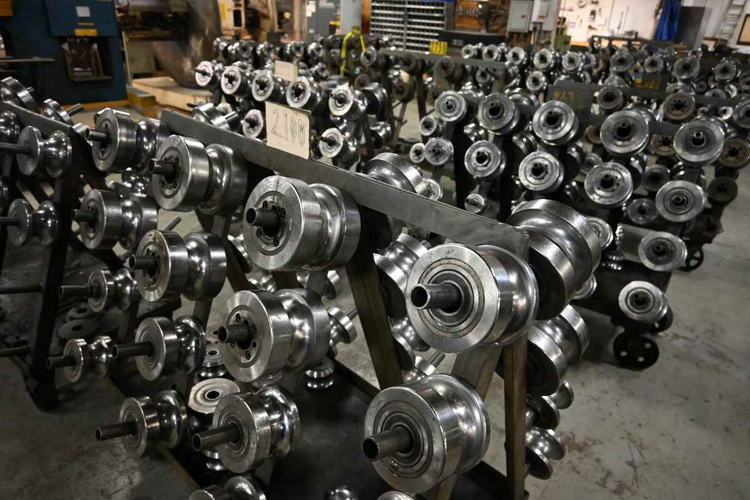

ROLL TOOLING:
2.75" Installed on Mill
Approximately (22) Tooling Sizes, Customer Check Suggested:
1.475", 1.5" , 1.625", 1.725", 1.75" , 1.85" ,
1.875", 1.975", 2" , 2.1" , 2.125", 2.225",
2.25" , 2.35" , 2.37" , 2.475", 2.5" , 2.6" ,
2.7" , 2.75" , 2.85" , 3"
CONTROL PANEL & DRIVE SYSTEM:
60 HP DC Motors
Mill Control Panel
MISCELLANEOUS:
Mill Guarding
Manuals
