New and Used Metalworking Machinery

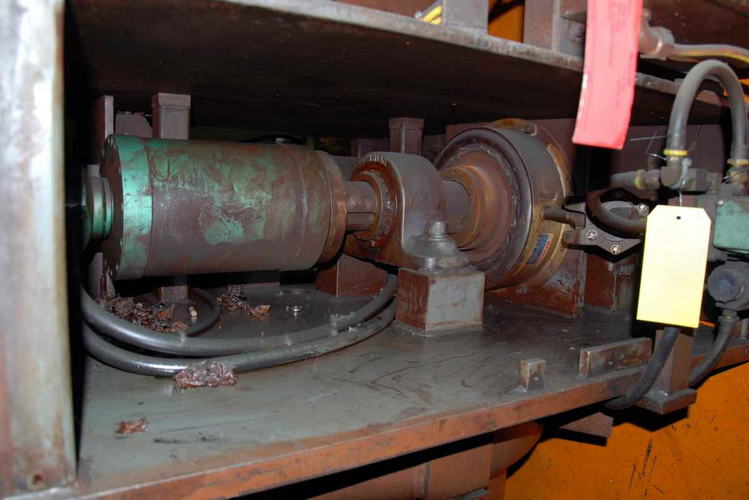

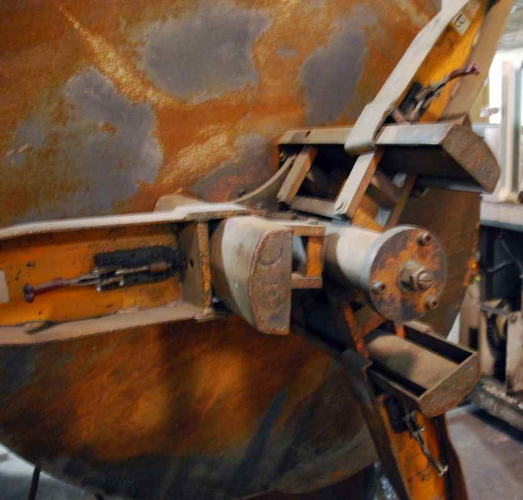

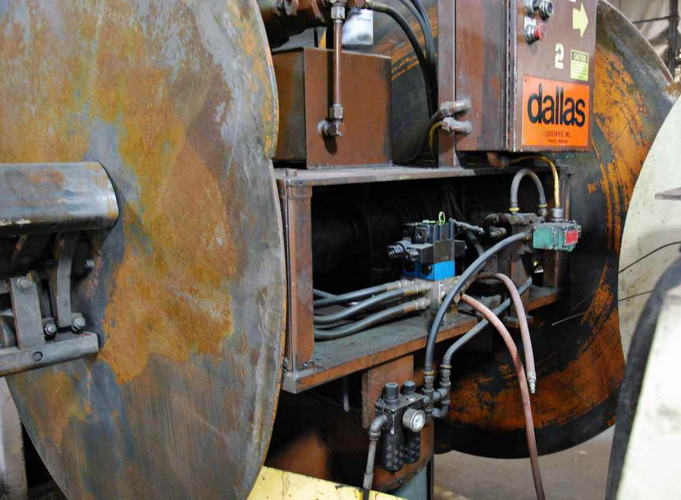

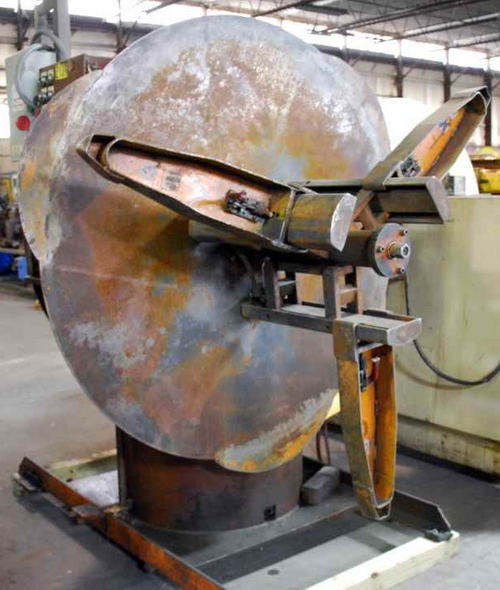

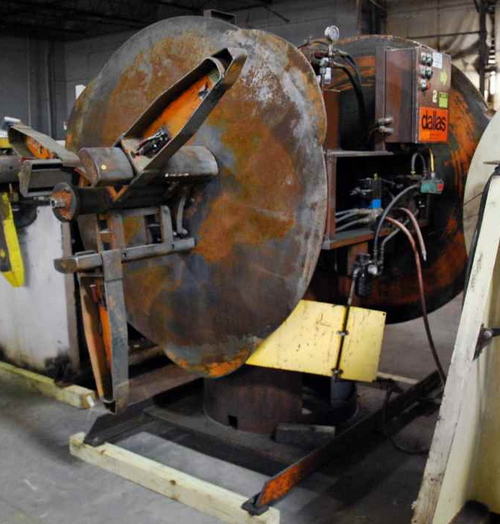

4,000 Lb DALLAS Double End Uncoiler, 15" to 20" ID, 60" OD, 18" Width   Our stock number: 53211

4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width

Click on picture below for larger version
4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width
4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width4,000 Lb DALLAS Double End Uncoiler, 15 to 20 ID, 60 OD, 18 Width

MODEL NUMBER: CODE-07141

SPECIFICATIONS:

Coil Weight, Max., Per Side: 4,000 Lbs.
Coil I.D.: 15" to 20"
Coil O.D., Max.: 60"
Coil Width, Max.: 18"

EQUIPPED WITH:

Air Brakes
4-Arm Hydraulic Expansion
Back Plates
(6) Coil Keepers

OVERALL DIMENSIONS: 96" x 72" x 84" High
WEIGHT: 5,000 Lbs.
