New and Used Metalworking Machinery

6,000 Lb LITTELL Double End Uncoiler, 16" to 20" ID, 90" OD, 29.5" Width   Our stock number: 53192

6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width

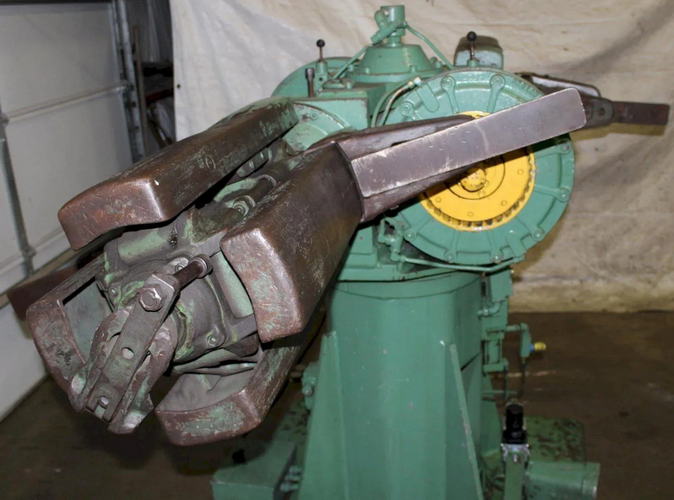

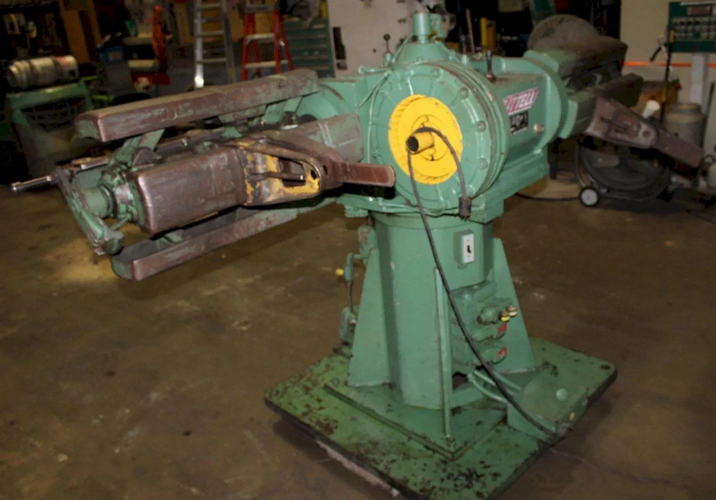

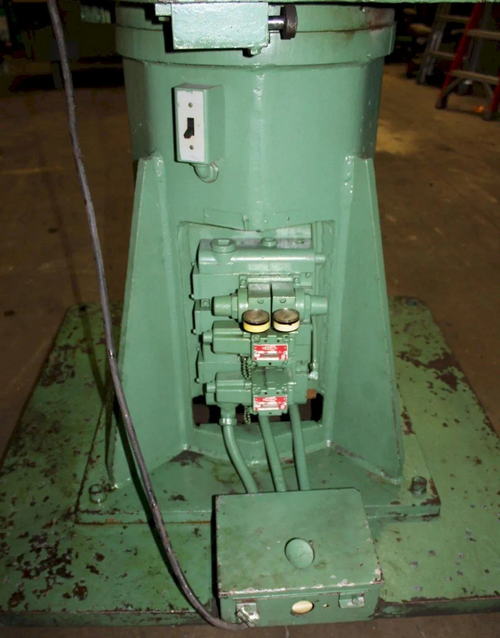

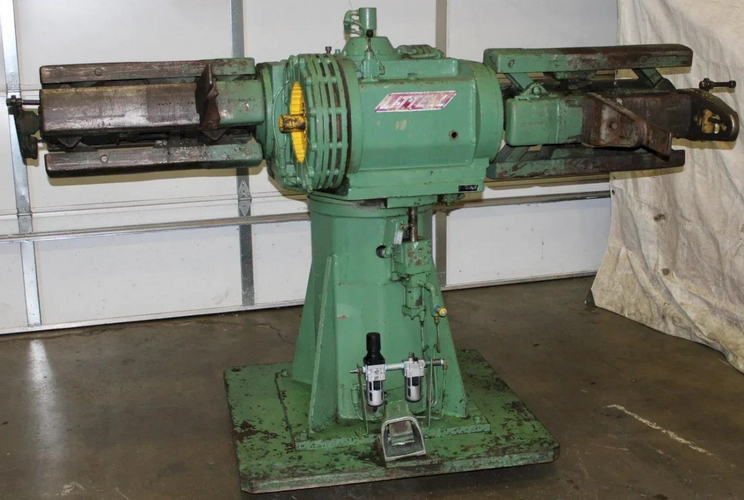

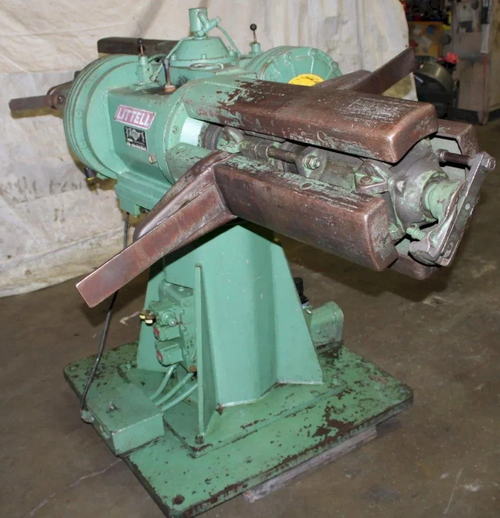

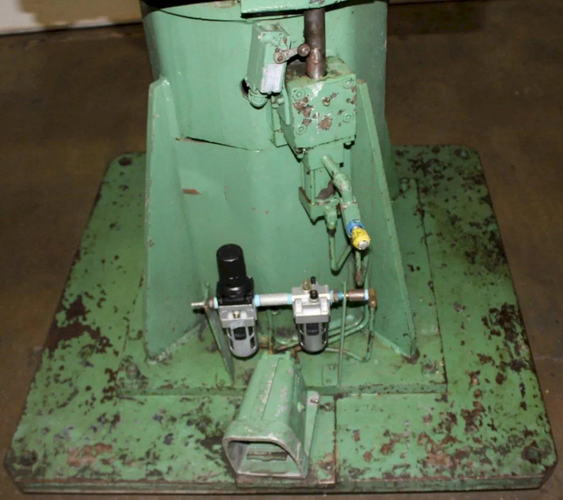

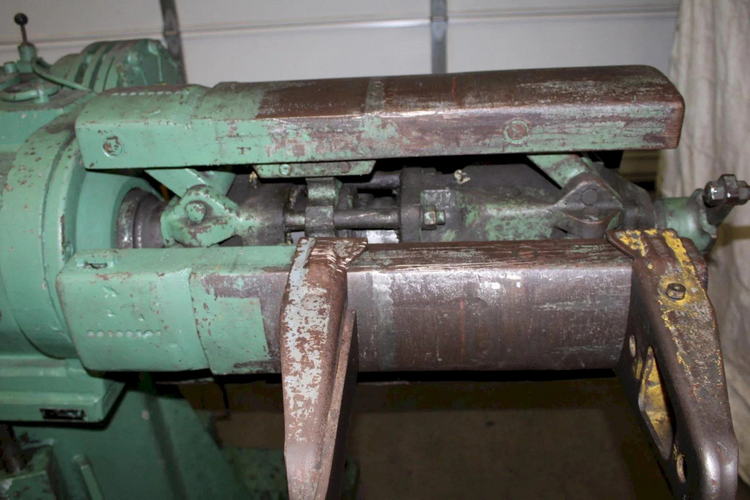

Click on picture below for larger version
6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width
6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width6,000 Lb LITTELL Double End Uncoiler, 16 to 20 ID, 90 OD, 29.5 Width

MODEL NUMBER: 60-24

SPECIFICATIONS:

Non-Motorized
Manual 360 Degree Rotation

Coil I.D.: 16" to 20"
Coil O.D., Actual: 90"
Coil Width: 29-1/2"

EQUIPPED WITH:

Air Brakes
4-Arm Mandrels
(6) Keepers

OVERALL DIMENSIONS: 90" x 48" x 60" High
WEIGHT: 4,000 Lbs.
