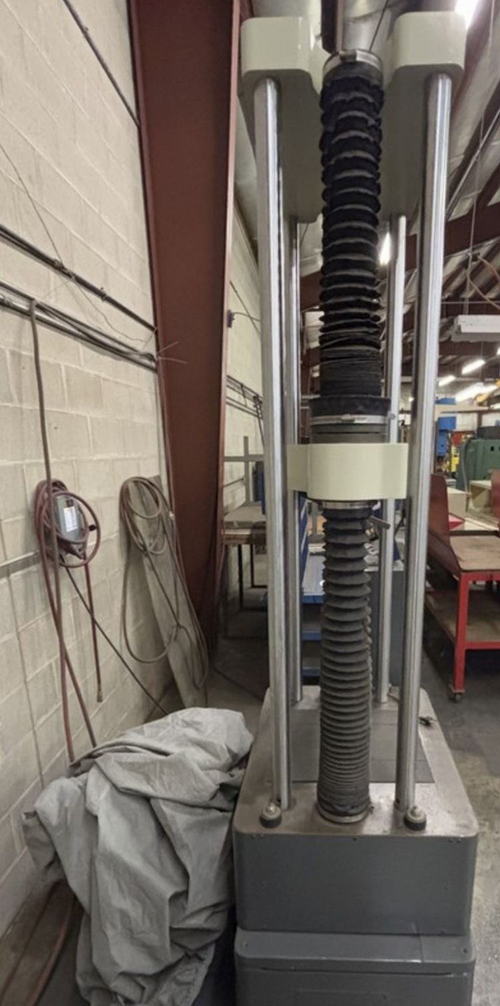

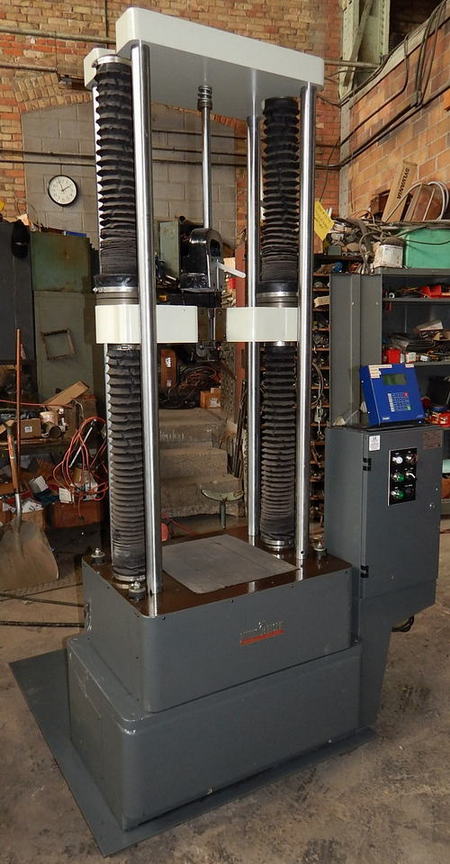

30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr   Our stock number: 53175

30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr

Click on picture below for larger version
30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr
30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr30,000 Lb TINIUS-OLSEN Electromatic EP2 Tensile Tester, (2) Load Cells/Admet Ctr

MODEL NUMBER: Retrofitted Electromatic EP2

SPECIFICATIONS:

Force Range: 300 to 30,000 Lbs.
Tension Testing Opening, Max.: 27"

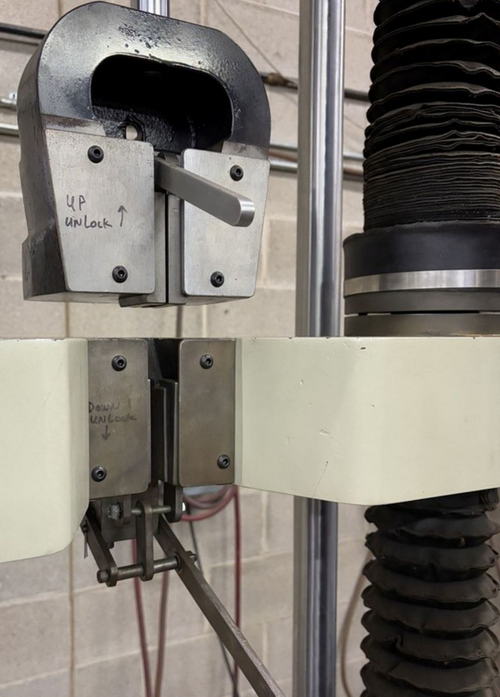

with Current Flat Grips
Distance Between Columns/Screws: 20-1/2"
Testing Stroke: Full Screw Length
Table Size: 20-1/2" x 24" FB
Testing Speed: High & Low
Each with Variable Speed Control

Electrical Requirement: 220 Volt, Single Phase
110 Volt for Admet

EQUIPPED WITH:

Retrofitted in 2016:

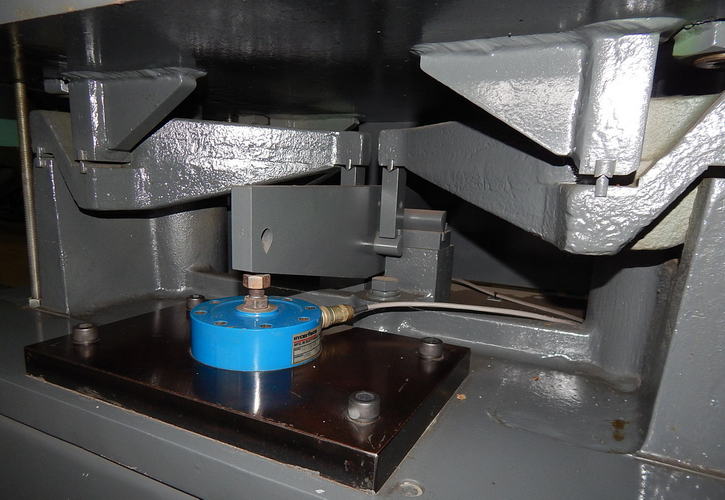

(2) Interface Model 1211HL-1K Load Cells

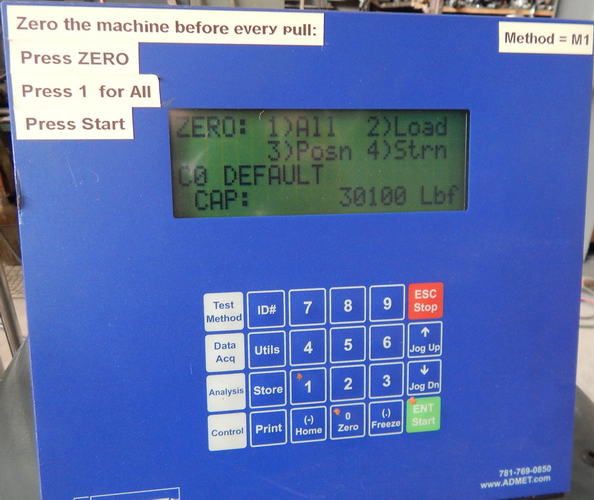

Admet Control, SN eP2-161026-853

Last Calibration 1-10-2024 by Calibration Services Inc.

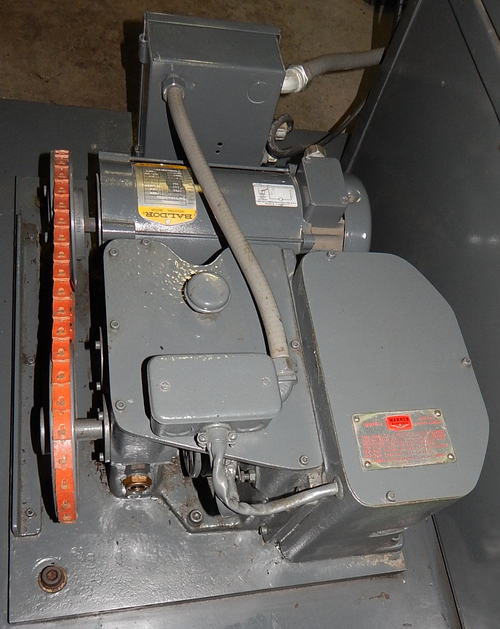

MOTOR DATA: 1 HP DC Hydraulic Drive Screw (Tension Pressure)

OVERALL DIMENSIONS: 60" x 60" x 99" High
WEIGHT: 3,500 Lbs.
CONDITION: Tested, Good Operating Condition
