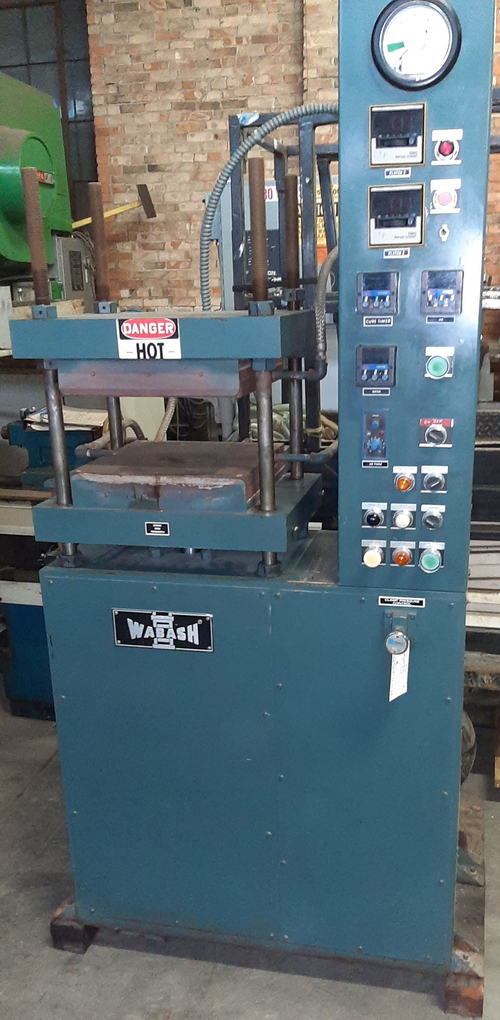

25 Ton WABASH Heated Platen Press, 15" x 15" Platen, 5100 Watt Platens, 1 HP   Our stock number: 53173

25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP

Click on picture below for larger version
25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP
25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP25 Ton WABASH Heated Platen Press, 15 x 15 Platen, 5100 Watt Platens, 1 HP

MODEL NUMBER: 25-1515-2TMBX

SPECIFICATIONS:

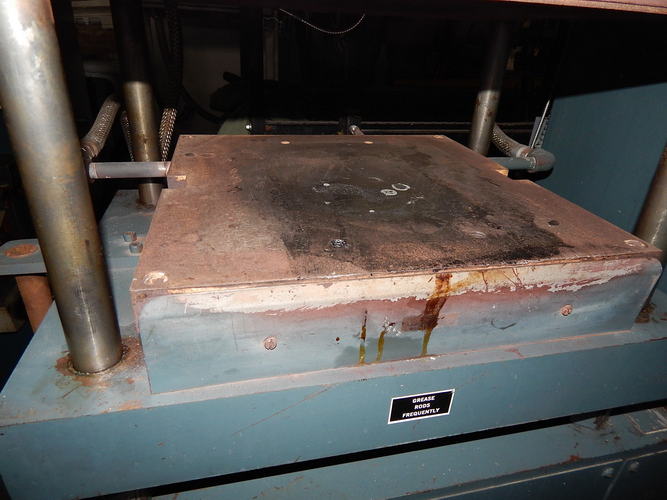

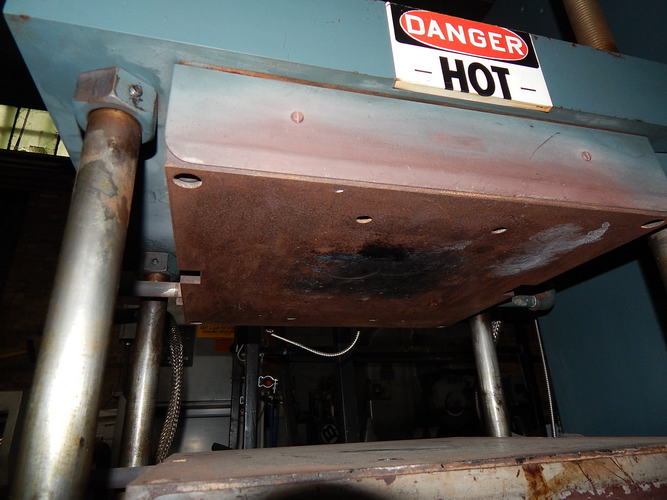

Platen Size: 15" x 15"
5100 Watts Each

Daylight Open, Adjustable: 6-1/4" to 16"

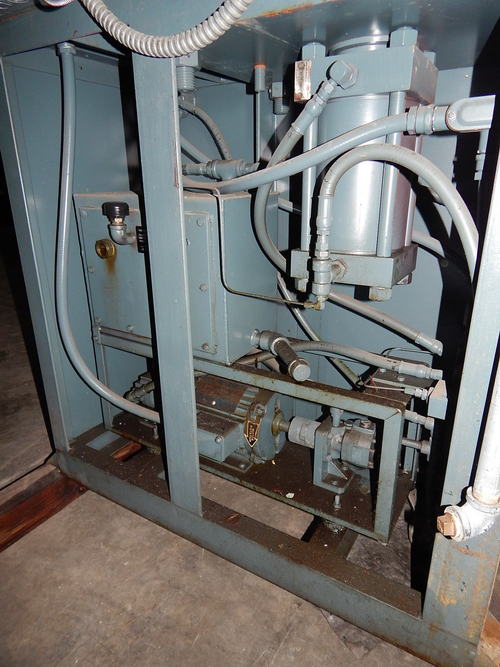

Compression Cylinder: 5" x 6"

EQUIPPED WITH:

25 Ton Pressure Gauge

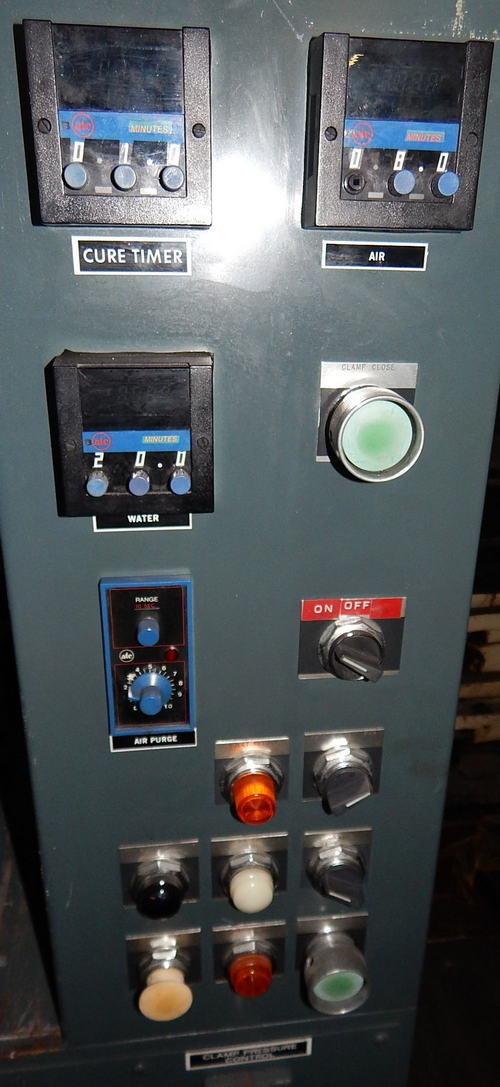

Cure, Water, Air and Air Purge Timers
Manual Clamp Pressure Adjustment

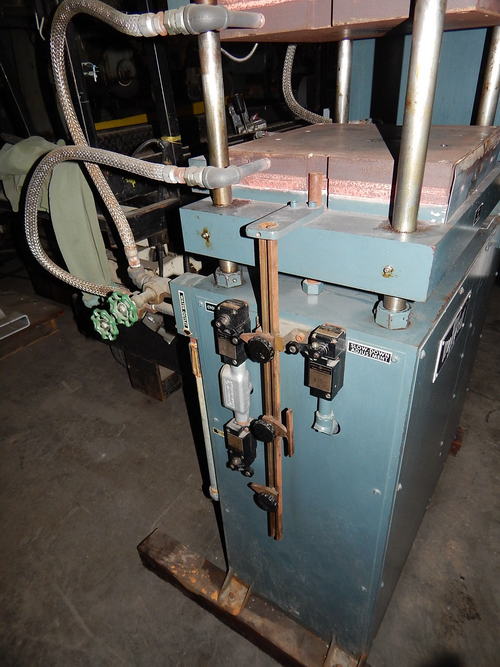

Thumbwheel Adjustable Stroke Stops

MOTOR DATA: 1 HP, Wire for 208/60/3, 34 Amps Full Load

CONDITION: Good, Tested Under Power
