72" x .135" x 40,000 Lb B & K Cut-to-Length Line   Our stock number: 53164

72 x .135 x 40,000 Lb B & K Cut-to-Length Line

Click on picture below for larger version
72 x .135 x 40,000 Lb B & K Cut-to-Length Line72 x .135 x 40,000 Lb B & K Cut-to-Length Line72 x .135 x 40,000 Lb B & K Cut-to-Length Line72 x .135 x 40,000 Lb B & K Cut-to-Length Line
72 x .135 x 40,000 Lb B & K Cut-to-Length Line72 x .135 x 40,000 Lb B & K Cut-to-Length Line72 x .135 x 40,000 Lb B & K Cut-to-Length Line

SPECIFICATIONS:

Coil Weight: 40,000 Lbs.
Thickness Capacity, Mild Steel: .021" to .135"

Line Speed: 250 FPM
Line Direction: Left-to-Right

CONSISTING OF:

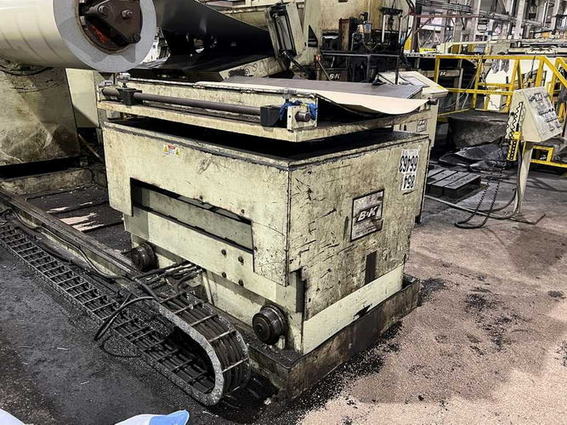

Coil Car:

Above Floor V-Shaped Design

Uncoiler:

Single Mandrel Design
Coil I.D.: 20" to 24"
Coil O.D.: 72"
Hydraulic Expansion
Sliding Base

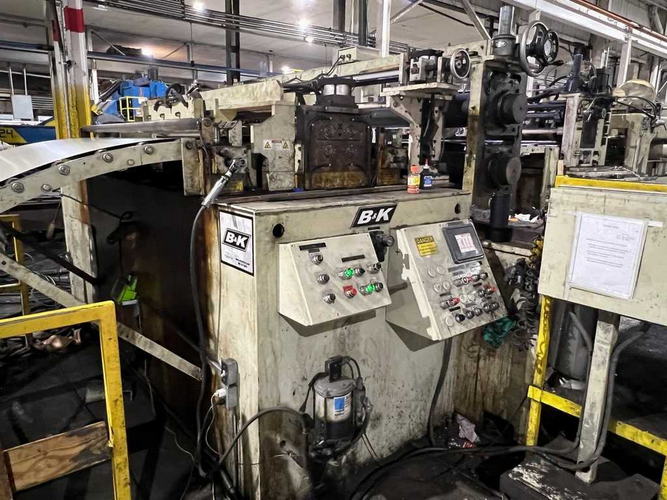

Entry Unit / Leveler:

Holddown Roll
Peeler Table

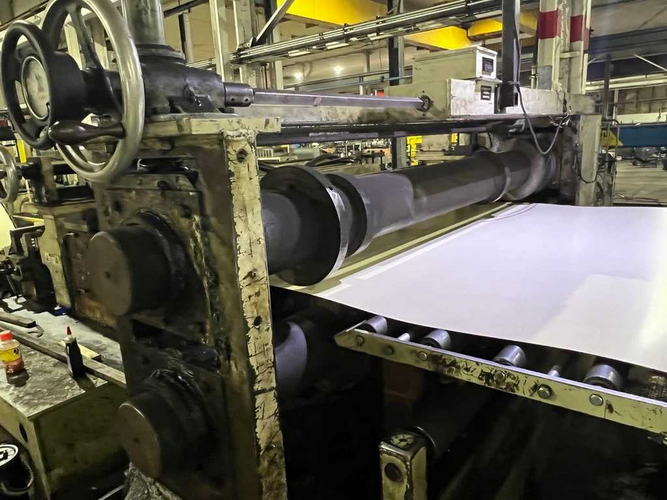

Leveler:

(19) Work Rolls, 9 Over 10
1.75" Dia. x 84" W Work Rolls
(9) Flights of Backup Rolls, (7) Motorized

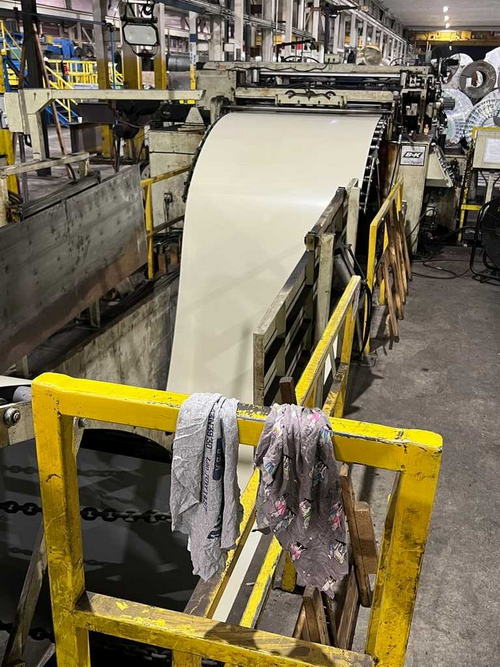

Looping Pit

Exit Pit Unit:

Cascade Rolls
4-Roll Measuring Unit
Slitter Head (Presently Not Used)

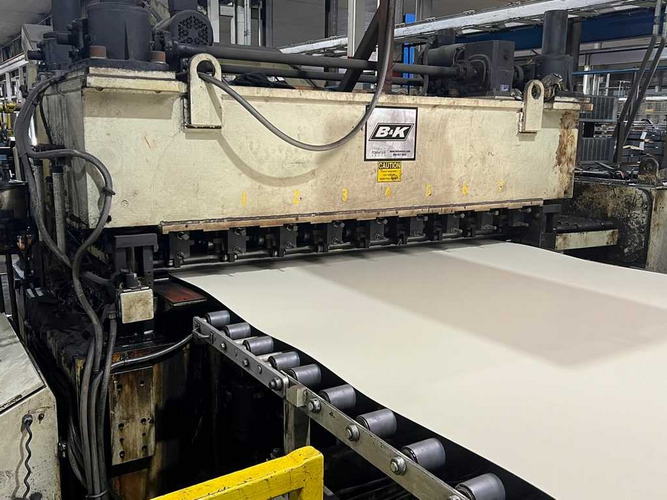

Mechanical Shear:

300 SPM

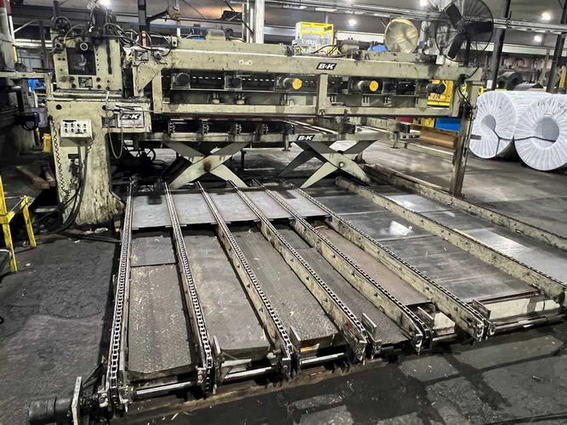

Stacker:

10,000 Lb. Bundle Capacity
14' Sheet Length
Auto Drop Design
Motorized Back Stop
Chain Drive Side Eject Pallet System
Scissor Lift Sheet Stacker
Chain Drive Bundle Ejector System

Line is Installed

CONDITION: Updated Electrics
