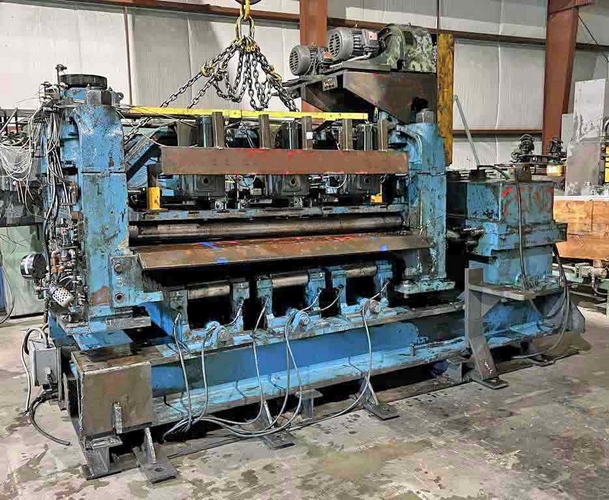

75" x .375" MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP   Our stock number: 53119

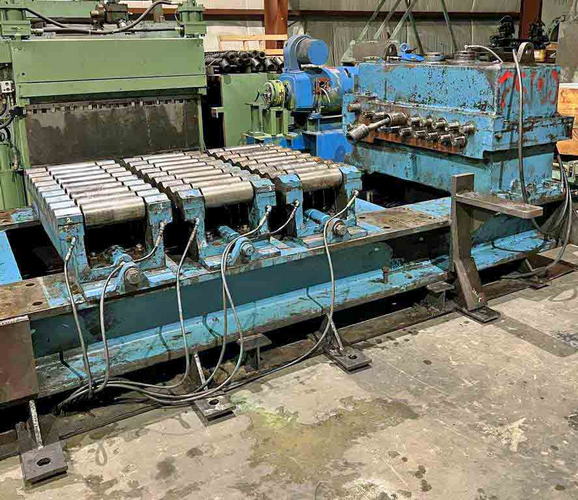

75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP

Click on picture below for larger version
75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP
75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP75 x .375 MESTA Leveler, 9 Over 8, (3) Flights of Backups, 150 HP

SPECIFICATIONS:

Type: 80/4.0-17-3

Thickness, Approx.: 0.105" to 0.375" Mild Steel
Width: 75"

17 Work Rolls: 9 Over 8, (1) Top Roll Missing
Work Rolls: 4.0" Dia. x 80" Face

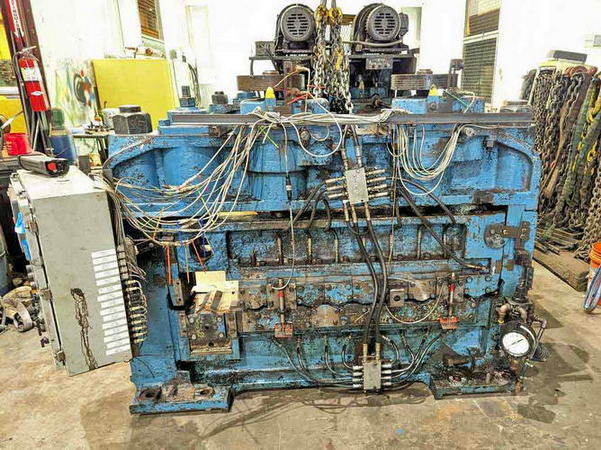

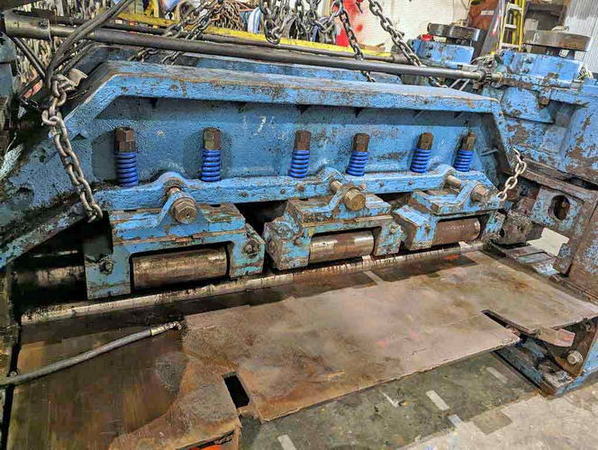

(3) Flights of Backups:

Top Flight Motorized
(3) 1 HP, 1725 RPM, 230/460V Adjustment Motors

Top Bank of Backups Motorized for Tilt Adjustment:

(2) 5 HP, 1750 RPM, 230/460V Motors

Line Speed: 100 to 182 FPM

EQUIPPED WITH:

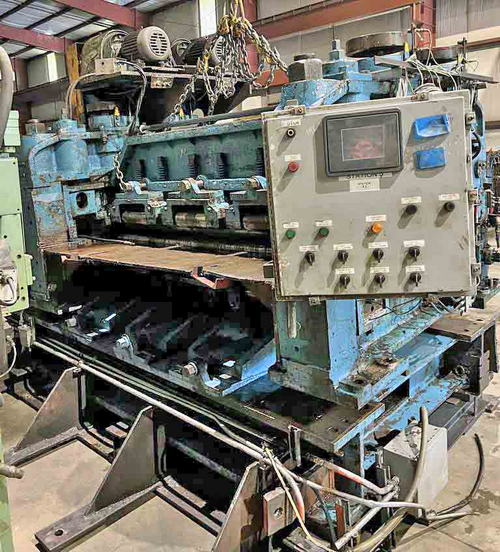

Operators Control Panel

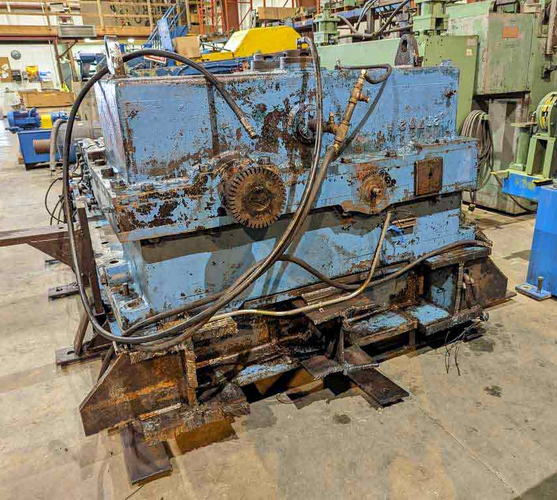

Main Gearbox
Foote-Jones In-Line Reducer with 11.53:1 Ratio

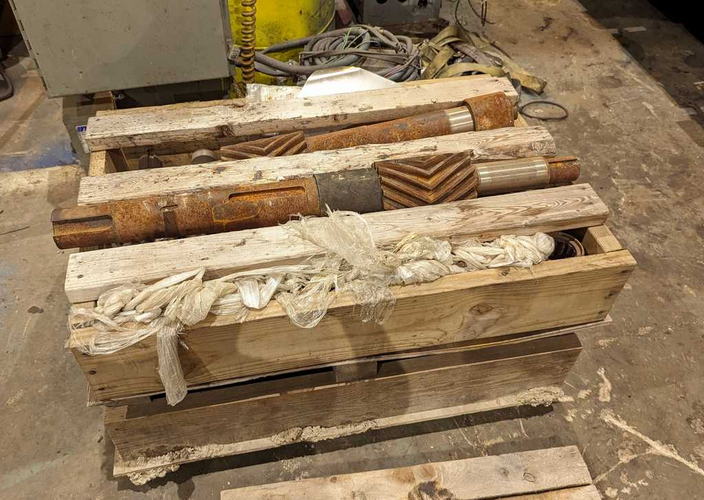

Spare Parts

NOTE:

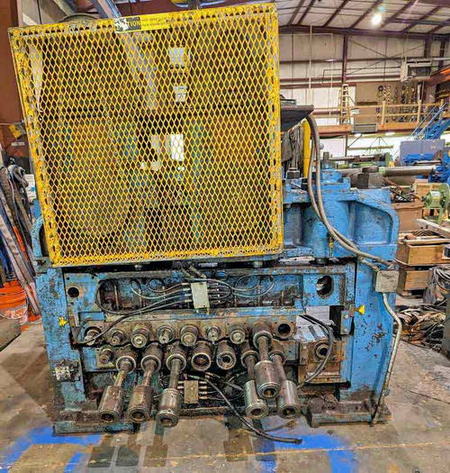

Missing Some of the Universal Drive Shafts

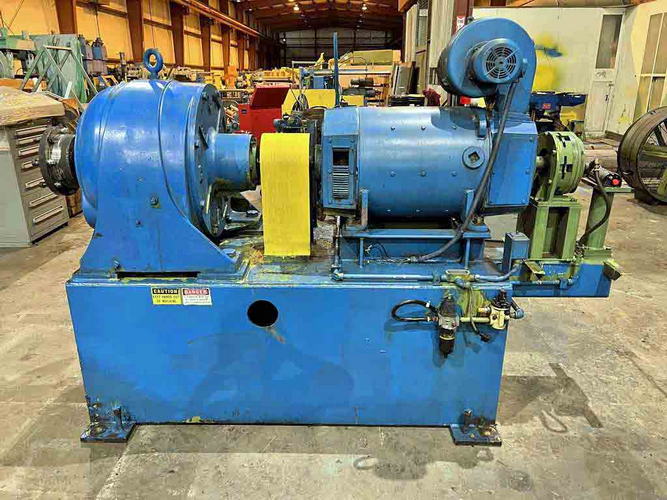

MOTOR DATA: 150 HP DC Main, 1150/2000 RPM, 500V, with Blower
Less Solid State Control

OVERALL DIMENSIONS:

Leveler: 156" L x 114" W x 108" High
DC Motor/Reducer: 105" L x 36" W x 70" High

WEIGHT:

Leveler: 54,000 Lbs.
DC Motor/Reducer: 5,000 Lbs.
