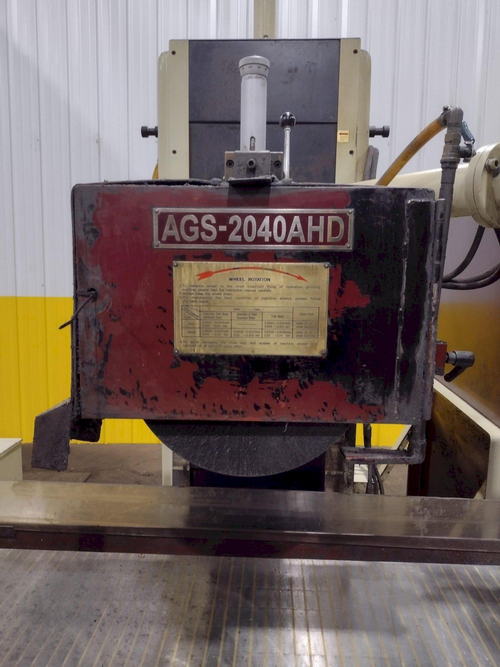

20" x 40" ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP   Our stock number: 53095

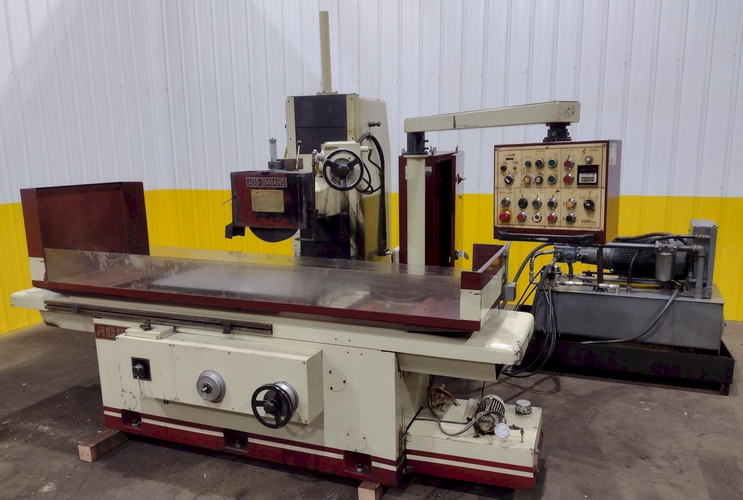

20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP

Click on picture below for larger version
20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP
20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP20 x 40 ACER 3-Axis Automatic Horizontal Surface Grinder, 2,200 Lb Load, 10 HP

AGE: 2001
MODEL NUMBER: AGS-2040AHD

SPECIFICATIONS:

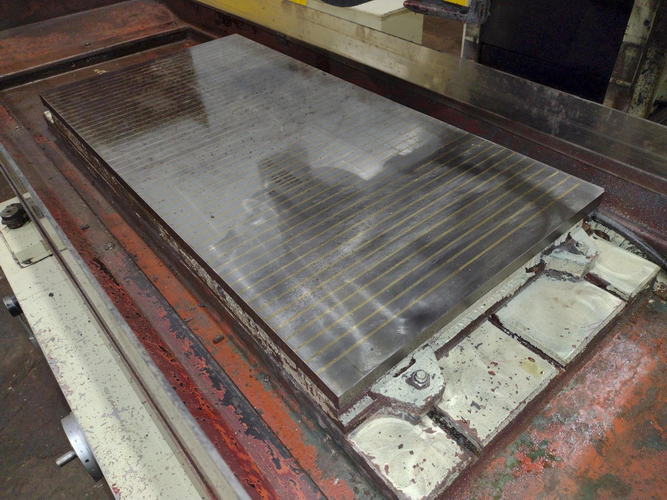

Chuck Size: 20" x 40"

Longitudinal Travel: 44"
Crossfeed Travel: 22"
Vertical Table to Spindle Center: 23-5/8"

Wheel Size: 16" x 5" x 2"

Table Load Capacity: 2,200 Lbs.

EQUIPPED WITH:

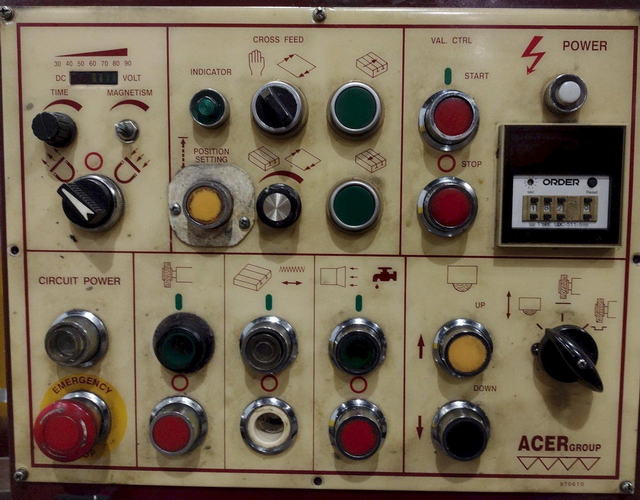

Full 3-Axis Automatic Operation for Surfacing
Auto Plunge for Slicing
Wheelhead Raises Up and Parks Table at End of Cycle

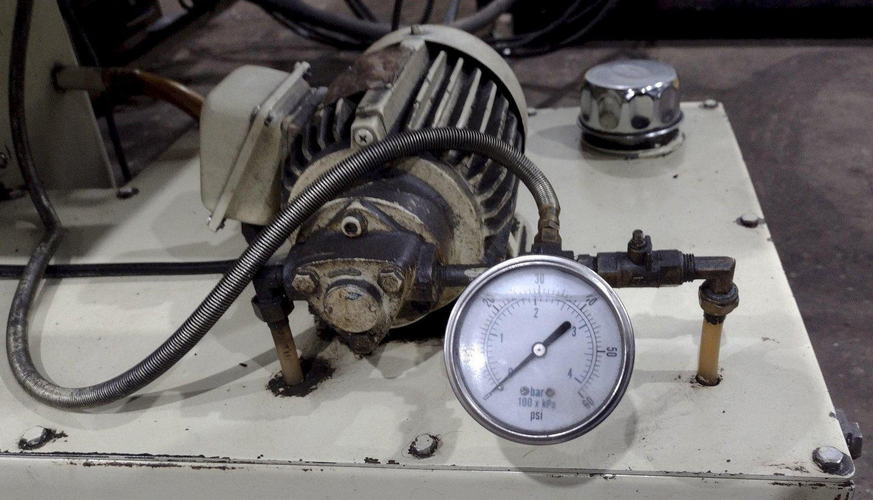

Recirculating Auto LUbe System

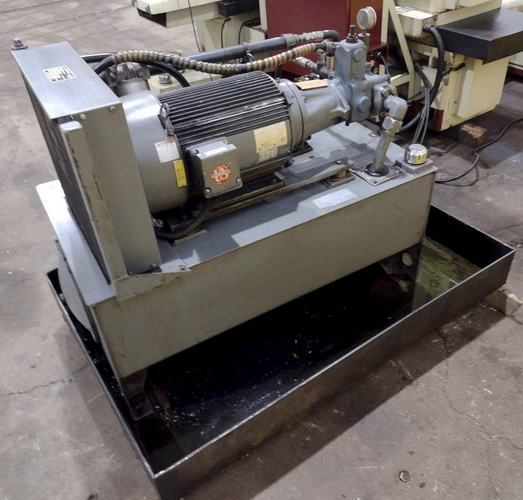

Hydraulic Table and Electronic Crossfeed
Auto Incremental Downfeed
Rapid Power Elevation
Ballscrew on Crossfeed
Chuck Control with Variable Holding and Demagnetizing
Overwheel Parallel Manual Dresser

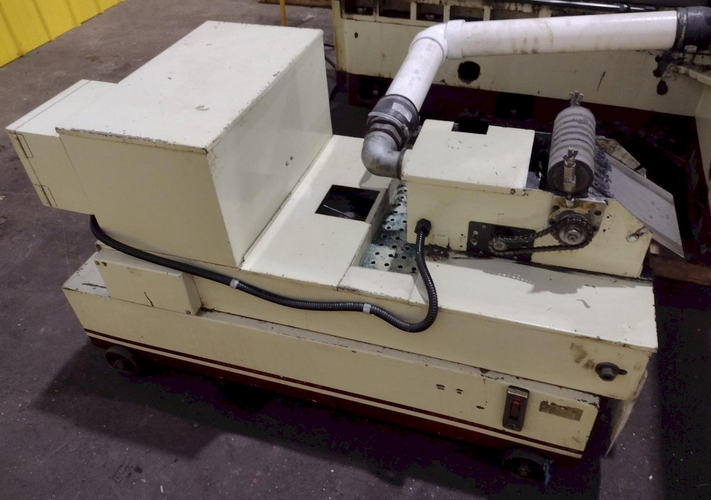

Coolant Tank with Paper Filter and Magnetic Drum Separator

MOTOR DATA: 10 HP Grinding Spindle, 1750 RPM
