New and Used Metalworking Machinery

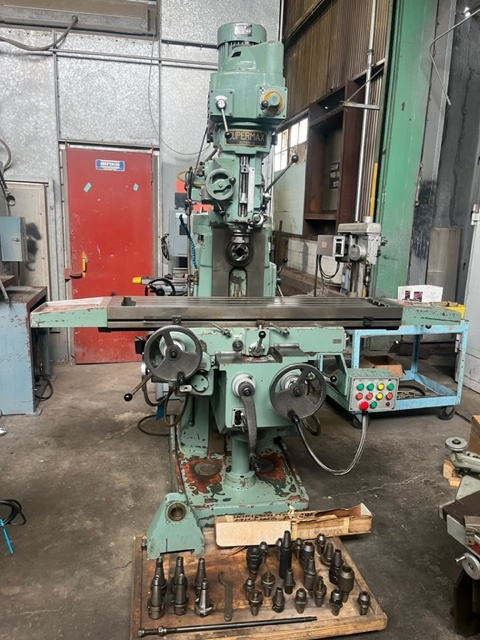

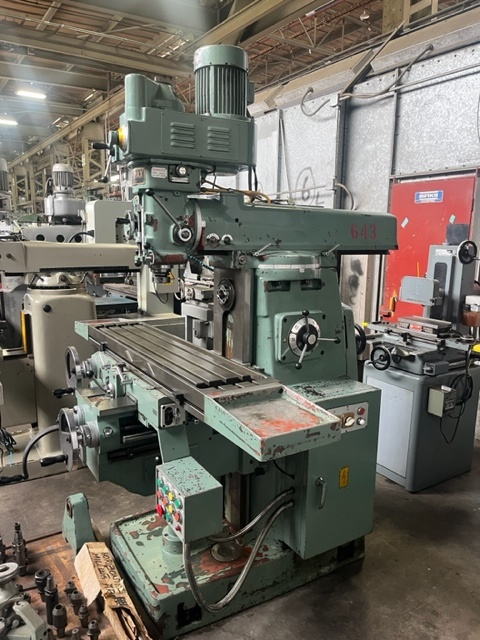

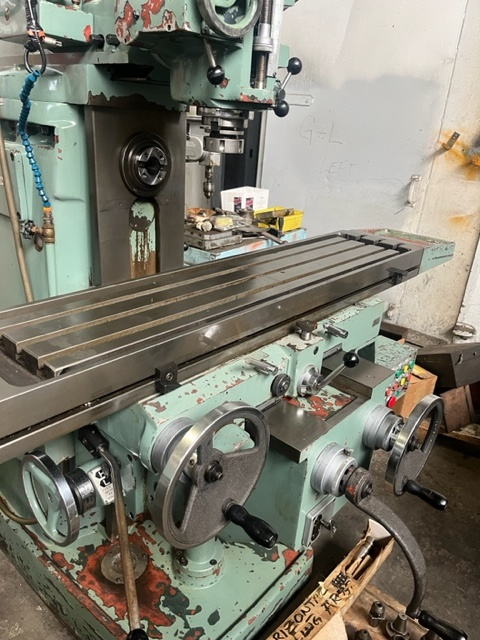

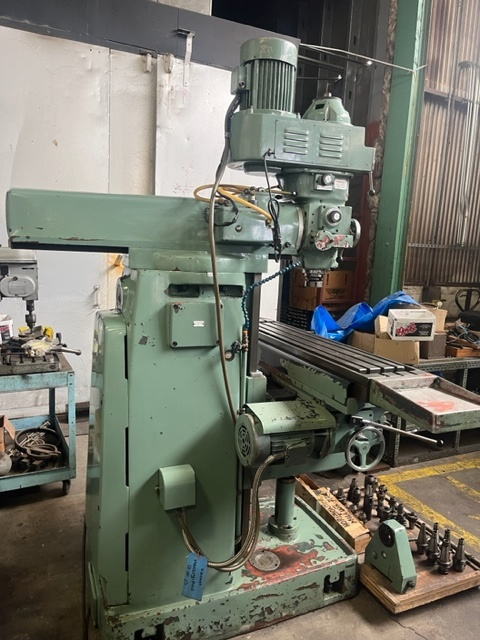

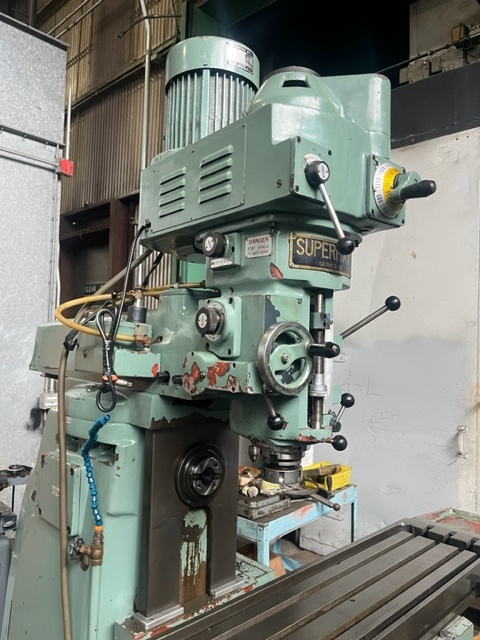

Series II SUPERMAX Horizontal / Vertical Milling Machine, 11" x 51" Table   Our stock number: 53080

Series II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 Table

Click on picture below for larger version
Series II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 TableSeries II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 TableSeries II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 Table
Series II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 TableSeries II SUPERMAX Horizontal / Vertical Milling Machine, 11 x 51 Table

SPECIFICATIONS:

Table Size: 11" x 51"

Travel:

Longitudinal: 32"
Cross: 12"
Quill: 6"
Knee: 16"

Feed, Cross and Longitudinal: 1/2 to 23-3/4 IPM
Feed, Quill: .003, .005 and .0015

Vertical Head Taper: #40
5 HP, 220/3
(9) Speeds 85 to 1300 RPM

EQUIPPED WITH:

Power and Rapids on Table
Power Elevation on the Knee
Arbor and Support for Horizontal Spindle

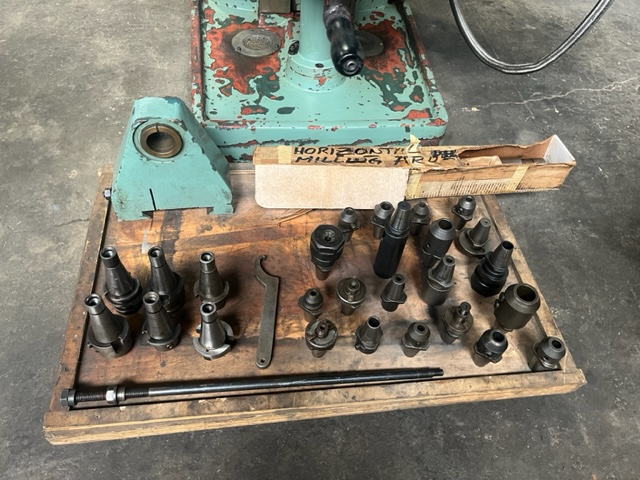

40-Taper Quick Switch Adapter with (20) Holders
(6) #40 Tool Holders
Coolant

WEIGHT: 5,000 Lbs.

CONDITION: Excellent, Inspect Under Power
