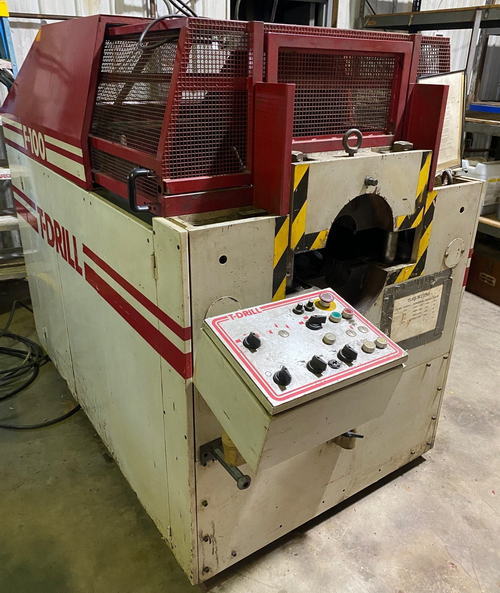

4" T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169" Lift Height, 7.5/3 HP   Our stock number: 53038

4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP

Click on picture below for larger version
4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP
4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP4 T-DRILL F-100 Flanging Machine, 3,400 Load Max, 169 Lift Height, 7.5/3 HP

MODEL NUMBER: F-100

SPECIFICATIONS:

Process Full Length, Bent or Stub-End Pieces
Eliminate Weld

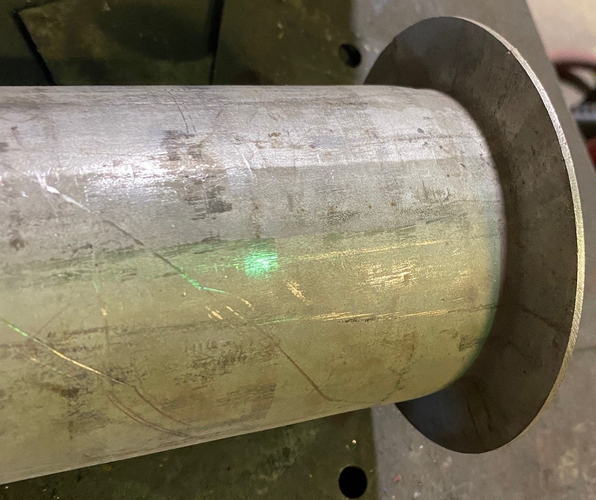

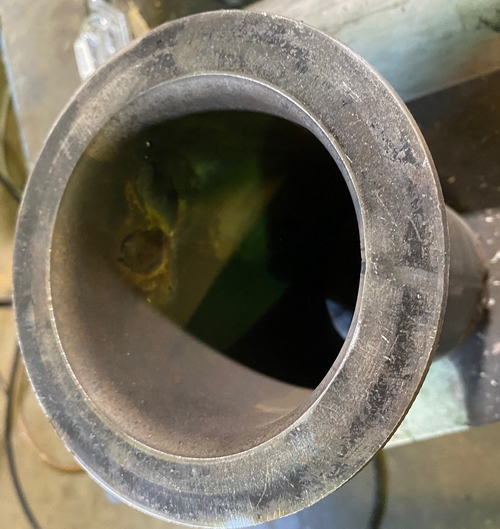

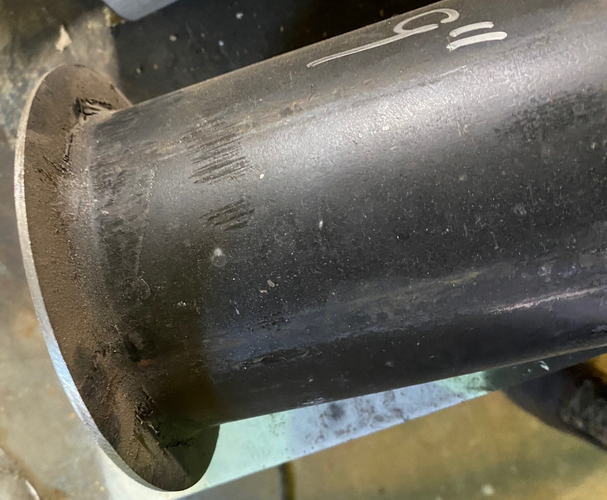

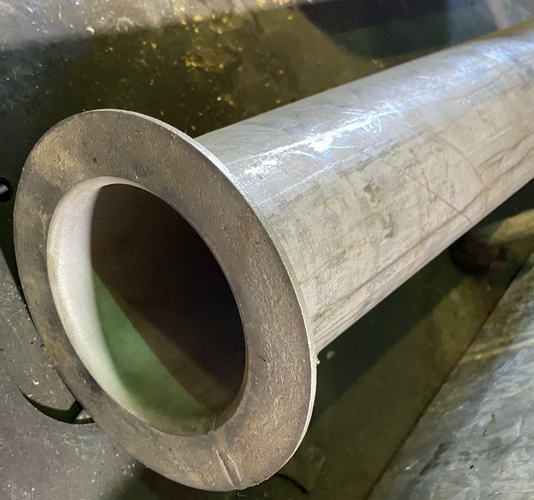

Can end form flange lips or flare to any desired angle
directly on the end of the pipe. Forms all cold formable
materials including mild steel, stainless steel, copper and
alloy pipes within an O.D. range of 21.3 to 114.4mm
(1/2" IPS to 4" IPS) and with a wall thickness up to
6mm (.237", Schedule 40)

Iron Pipe: 1/2" to 4" Sched 40
Stainless: 1/2" to 4" Sched 10 304

MOTOR DATA: 7.5 HP and 3 HP

OVERALL DIMENSIONS: 44" x 67" x 55" Height
WEIGHT: 3,500 Lbs.
