SPECIFICATIONS:
Used for Cleaning Coolant from CNC Grinding of
Carbide Cutting Tools

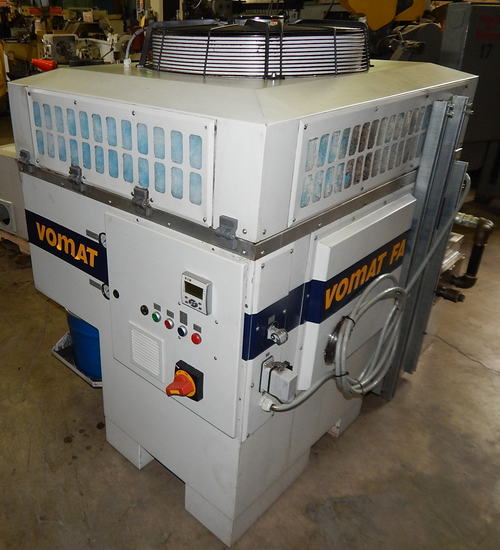

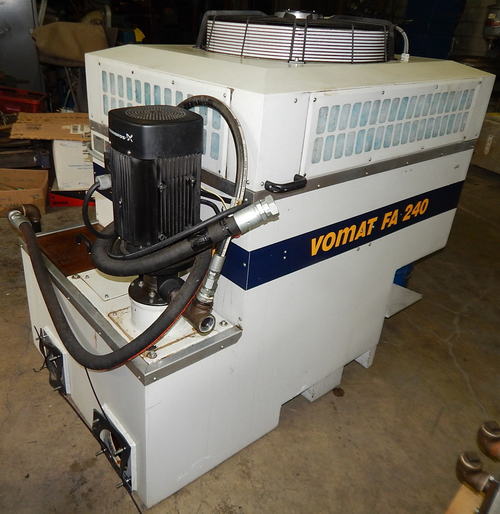

FA 120 - 240 with Integrated Cooling Unit
Cooling Performance: 13kW
Filtering Capacity: 240 Liters/Min.
Filtration Grade: 3 to 5 Micrometers
Oil Capacity for Filter System: 500L
Variable Oil Volume: 200L
Input Voltage: 3 ~ 400V
Control Accuracy: +/- 0.2 K
Waste Disposal: + FA 120 - 240 with Integrated Cooling Unit
EQUIPPED WITH:
Newly Developed Sedimentator with Fully Automatic
Collection of Recyclable Material with Residual
Moisture of Approximately Between 5% - 10%
User Friendly Disposal Directly into a Transport
Container from Recycling Companies

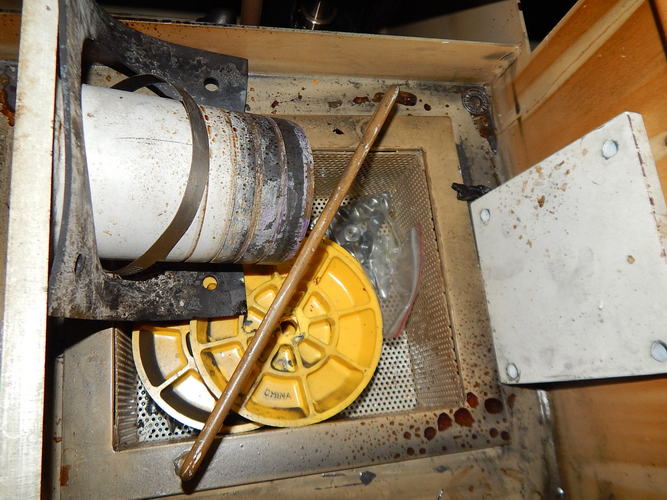

Filter Body with Separate Clean and Dirty Oil Sections
Demand-Based, Energy-Efficient Filtration via Frequency
Controlled System Pump
PLC Control
Service Friendly Cooling Unit, Integrated in the
Filtration System

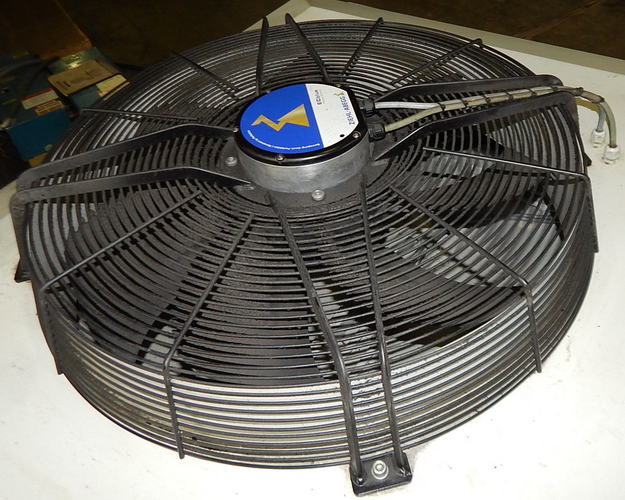

Condenser Mounted on Folding Filtration Lid
FA 300 - 420 with External Cooling Unit
(2) Separate Pumps

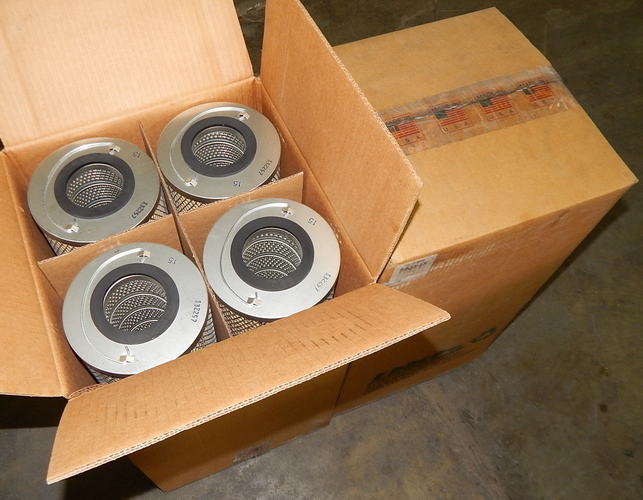

Many Spare Including New Replacement Filters
CURRENT REPLACEMENT COST IS $65,000
OVERALL DIMENSIONS: 72" x 48" x 60" High Shipping Dimensions

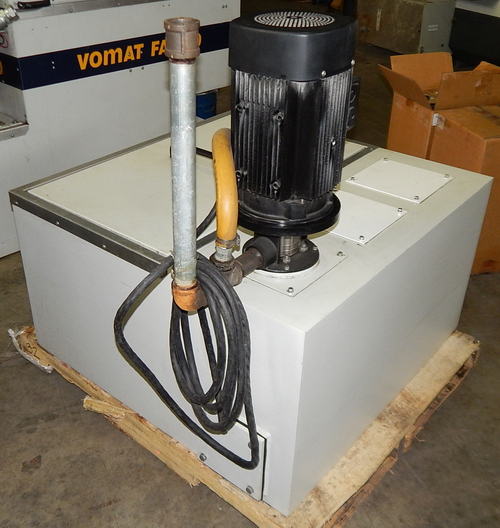

48" x 48" x 48" High Tank on Skid
CONDITION: Good Running
Chiller Compressor was replaced with new and
has not been used since
