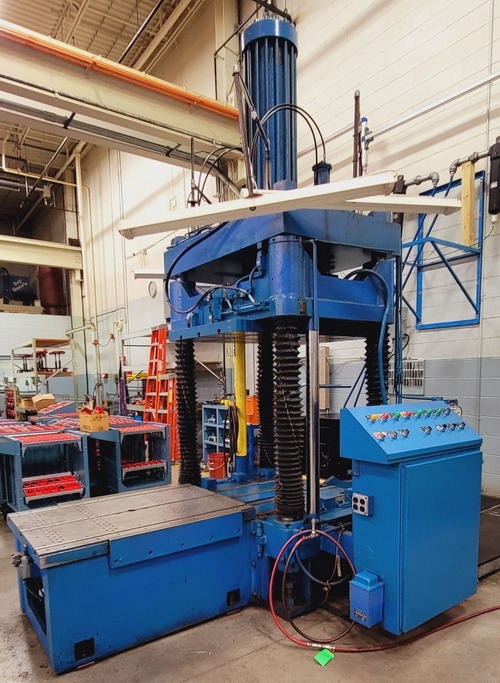

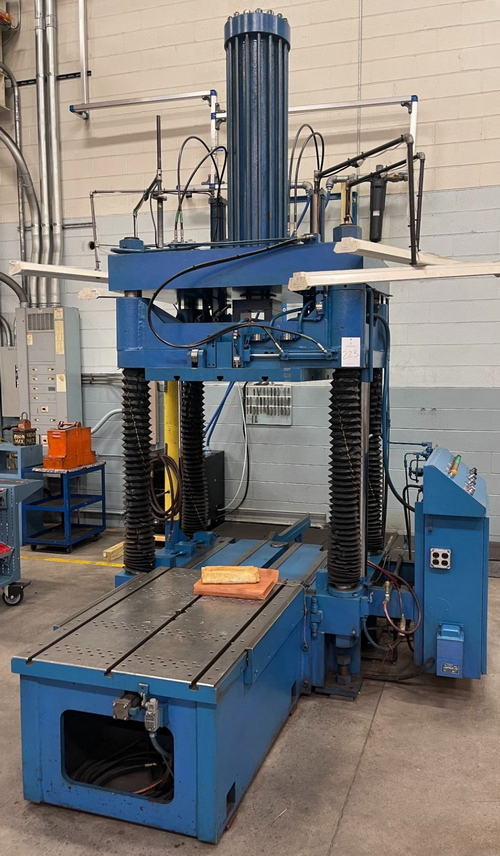

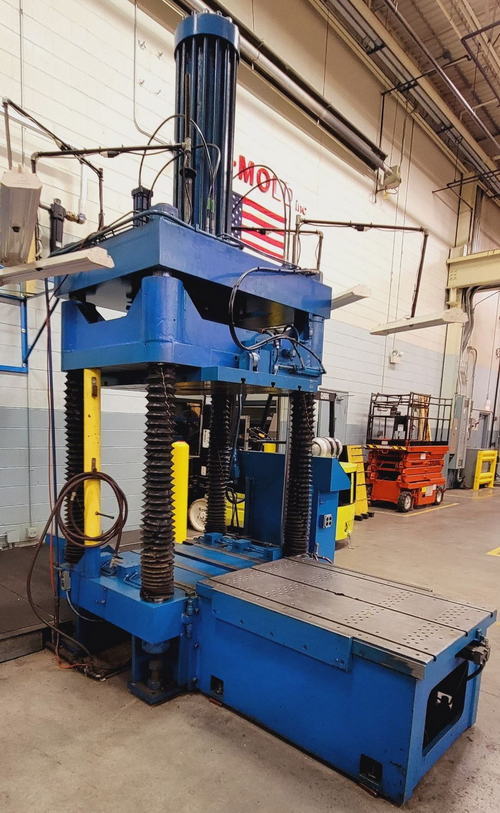

100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34" x 50" Platens, 42-1/2 Dylt   Our stock number: 52959

100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt

Click on picture below for larger version
100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt
100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt100 Ton CUSTOM Die Spotting Press, 3000 PSI, 34 x 50 Platens, 42-1/2 Dylt

SPECIFICATIONS:

=Capacity, Approx.: 100 Ton

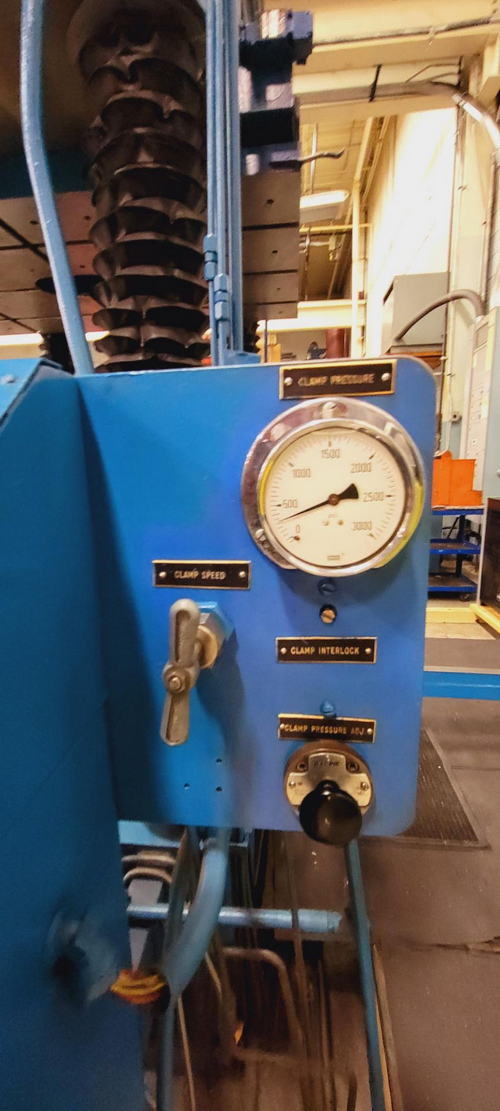

=Clamping Pressure, Max.: 3000 PSI
=Stroke: 40"
=Daylight: 42-1/2"
=Distance Between Posts: 48"
=Platen: 34" L-R x 50" F-B

EQUIPPED WITH:

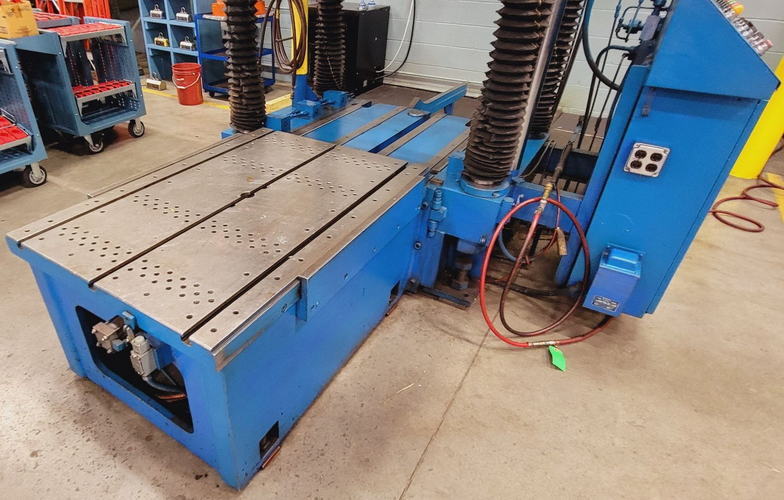

=Roll Out Shuttle Table
=Lower Ejector
=Ram Platen Books Open to the Rear 180 Degrees

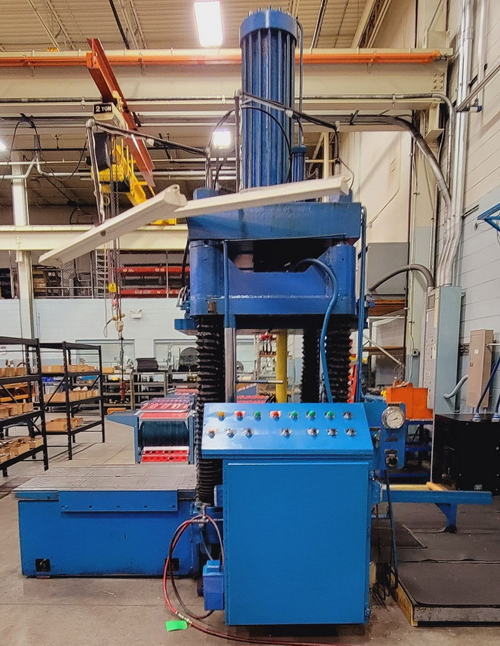

=Control Console

OAD: 72" L-R X 142" F-B X 155" H

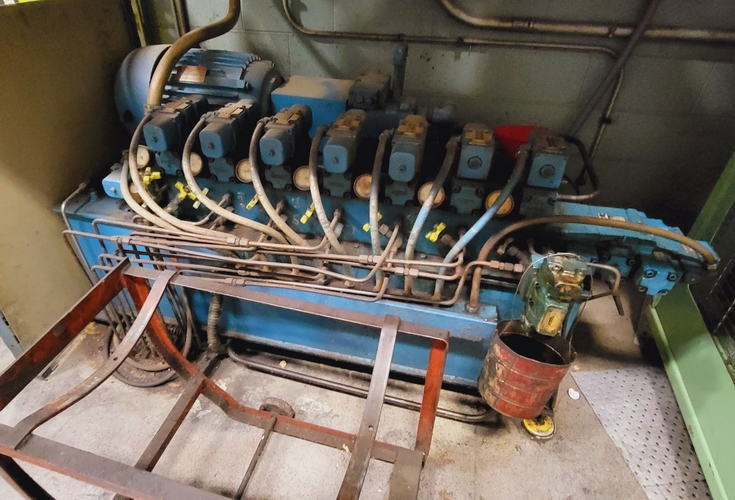

MOTOR DATA: 30 HP Hydraulic Power Unit, 3,000 Max. PSI
