AGE: 2006

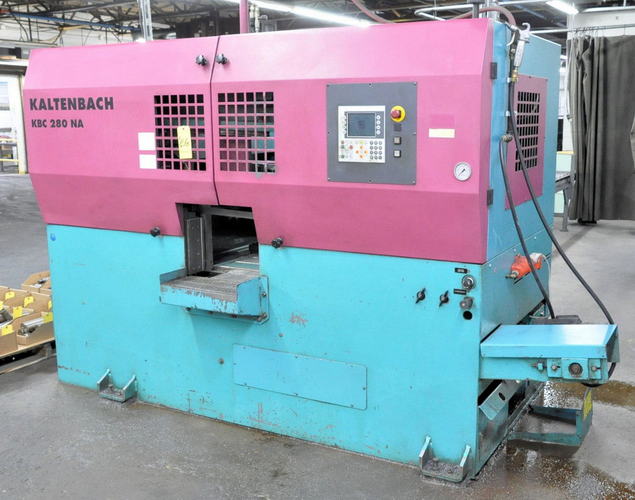

MODEL NUMBER: KBC 280 NA
SPECIFICATIONS:
Capacity, Rounds: 11" (280mm)
Capacity, Rectangles: 15-3/4" x 11" (400mm x 280mm)

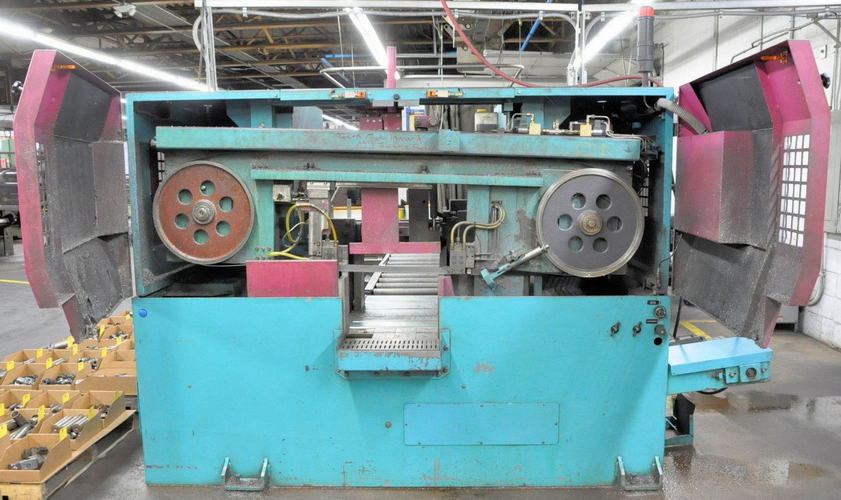

Saw Band: 200" x 1-1/3" (5100mm x 34mm)
Cutting Speed: 49 to 295 FPM (15 to 90 M/Min.)
Cut-Off Length, Single Stroke: 1/4" to 24" (6mm to 610mm)
Bar End Length: Manual - .39" (10mm)
Automatic - 2-3/4" (70mm)
EQUIPPED WITH:

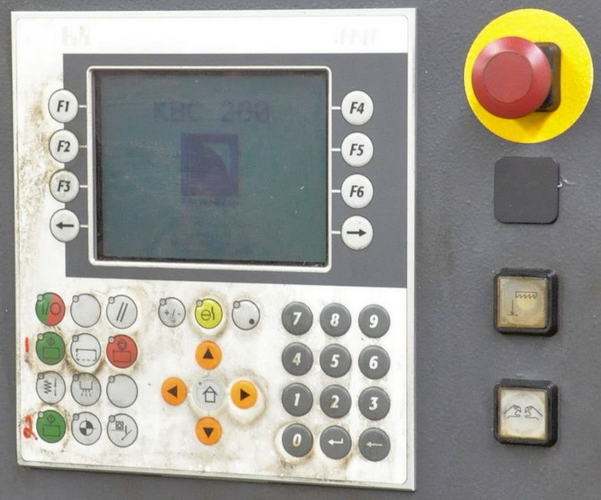

PP41 Controller with Touch Screen Operator Interface
Power Clamping

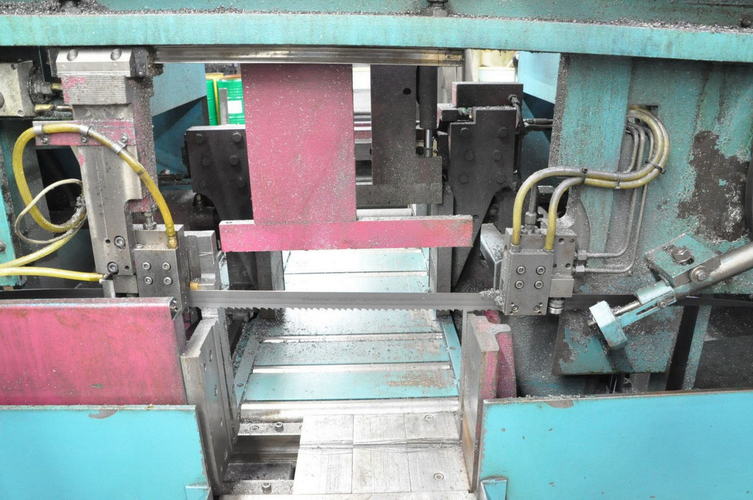

Vertical Clamps, Input Side & Infeed GrippeR

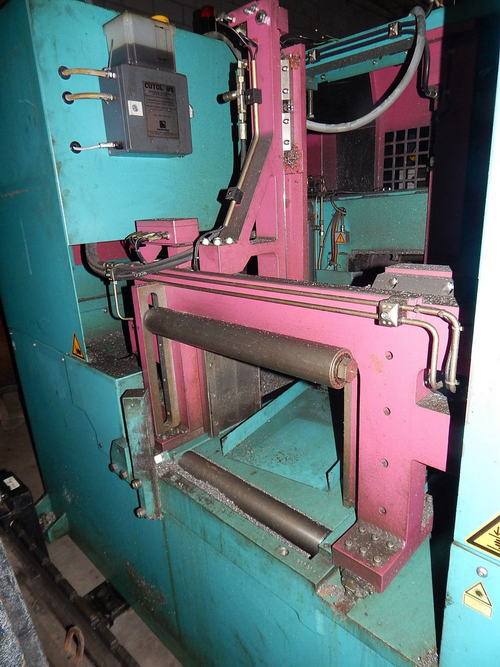

Adjustable Height Upper Horizontal Holddown Entry Roller
Blade Cutting Coolant Atomizer System

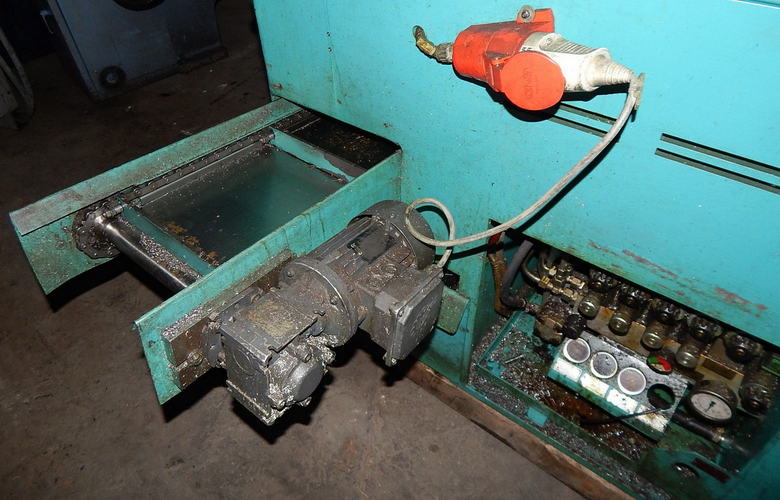

Chip Conveyor

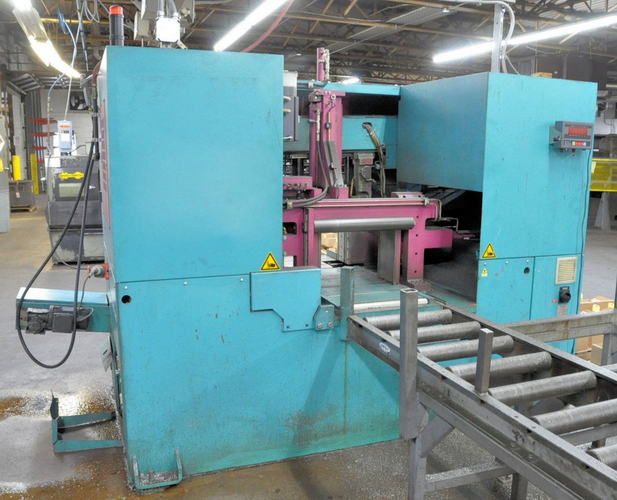

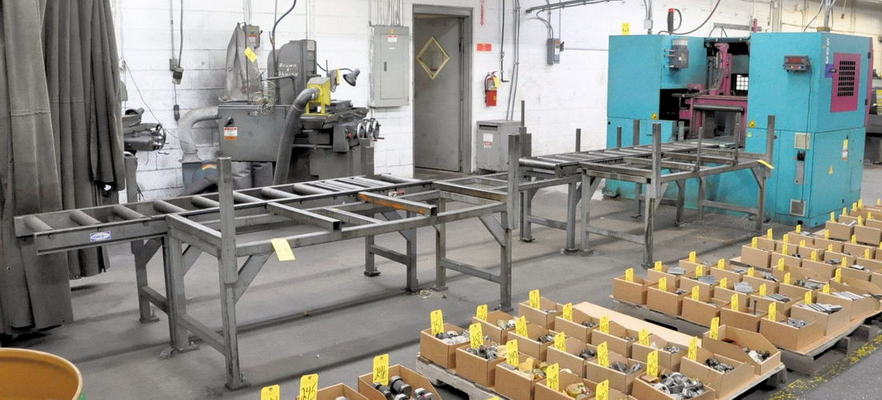

17" x 20' Infeed Roller Feed Conveyor with
Outboard Feed Stands
Original Manual
APPROXIMATE COST WHEN NEW PER MANUFACTURER WAS $52,900
MOTOR DATA: 4 HP
OVERALL DIMENSIONS: 97" x 60" x 73" High
WEIGHT: 6,000 Lbs.
