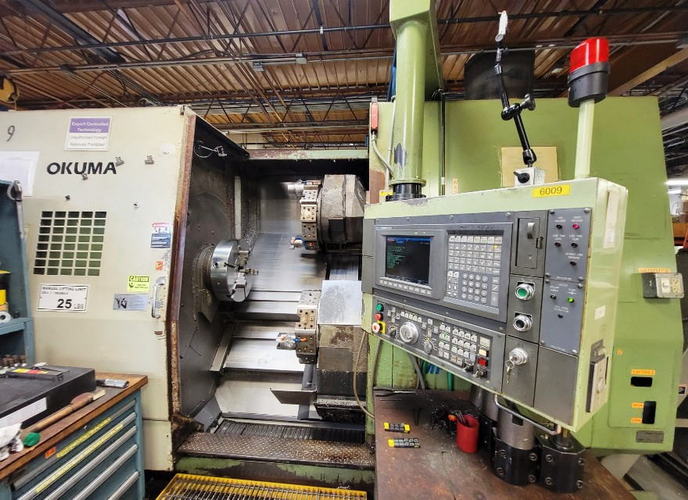

MODEL NUMBER: LU-35
TEMPORARY SPECIFICATIONS:
Swing: 29.13"
Swing Over Saddle: 18.90"
Centers: 33.46"
Turning Diameter x Length, Max.: 21.65" x 36.22"
Spindle Speeds, 4 Steps: 14 to 3200 RPM
Spindle Bore: 3.94"
Spindle Nose Type: JIS A2-8
Carriage Travel, Upper Turret, X-Axis: 10.83" + 4.13"
Carriage Travel, Lower Turret, X-Axis: 7.09" + 2.76"
Feed Rate, X-Axis: .00001 to 39.37 IPM
Rapids, X-Axis: 591 IPM
Carriage Traverse, Upper Turret, Z-Axis: 36.22"
Carriage Traverse, Lower Turret, Z-Axis: 34.45"
Feed Rate, Z-Axis: .00001 to 39.37 IPM
Rapids, Z-Axis: 787 IPM
Tailstock Quill Diameter: 3.54"
Tailstock Quill Travel: 6.69"
Tailstock Taper: MT No. 5
Electrics: 220/440
EQUIPPED WITH:

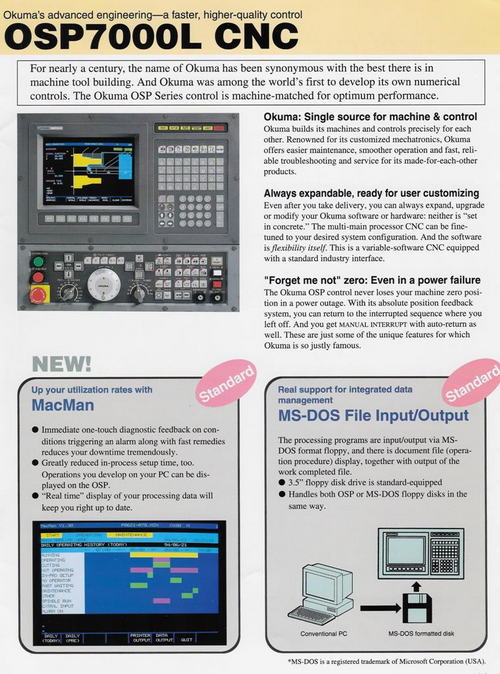

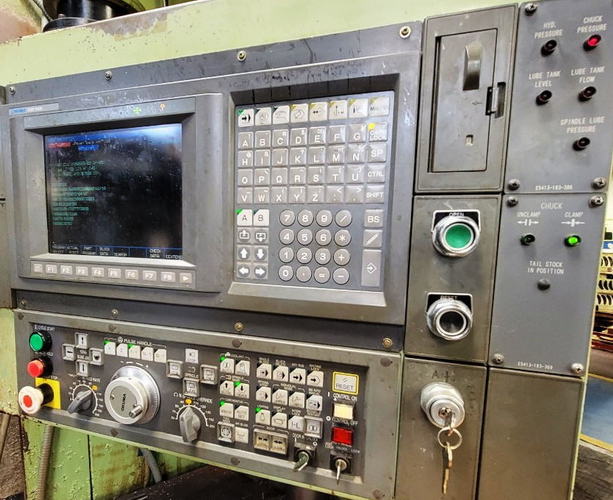

OSP-7000 Control

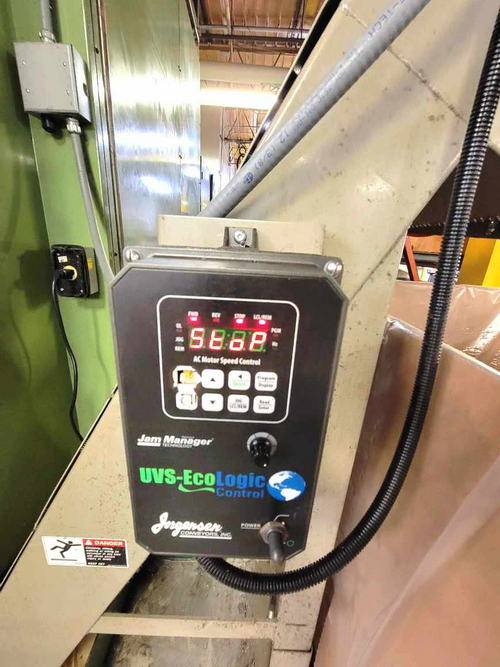

Chip Conveyor, Right-Side Discharge

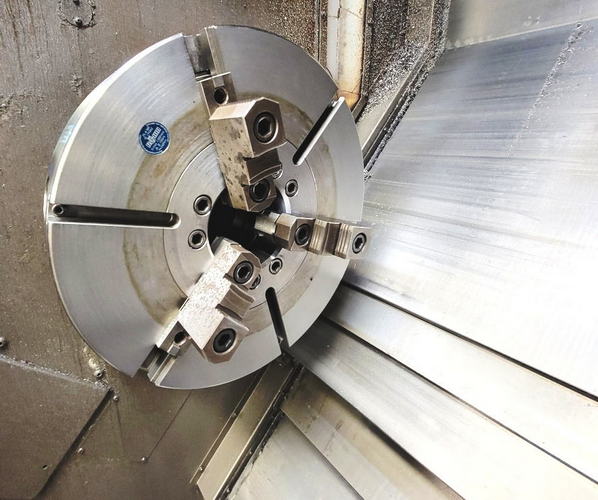

24" Rohm 3-Jaw Chuck
Conventional 4-Axis Programming Steps and Language
OSP Makes the Conversions for the Lower Turret
1" Square and 2" Round Tool Shank Size
2" A2-8 Spindle Nose

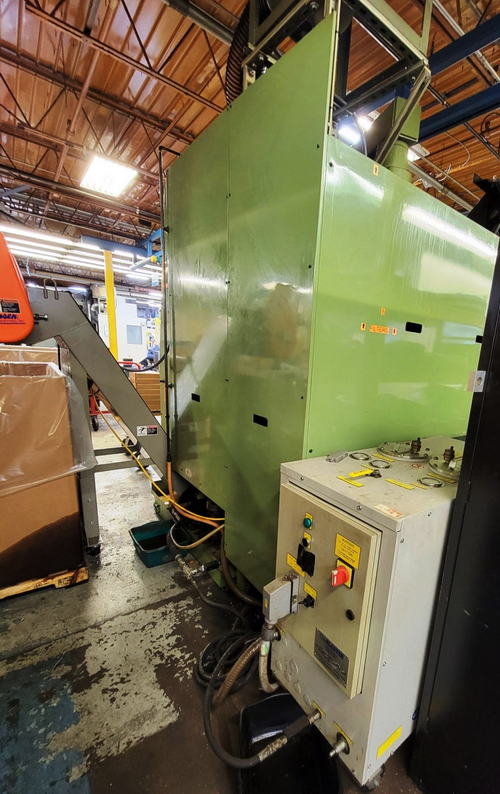

1,000 PSI Hi-Pressure Coolant System
Dual Turret with 12-Tool Positions on Upper and
10-Tool Positions on Lower
MOTOR DATA: 50/40 HP
OVERALL DIMENSIONS: 179" L x 101" W x 102" High
WEIGHT: 20,900 Lbs.
CONDITION: Very Good, Installed and Under Power
