New and Used Metalworking Machinery

30" x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW   Our stock number: 52893

30 x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW

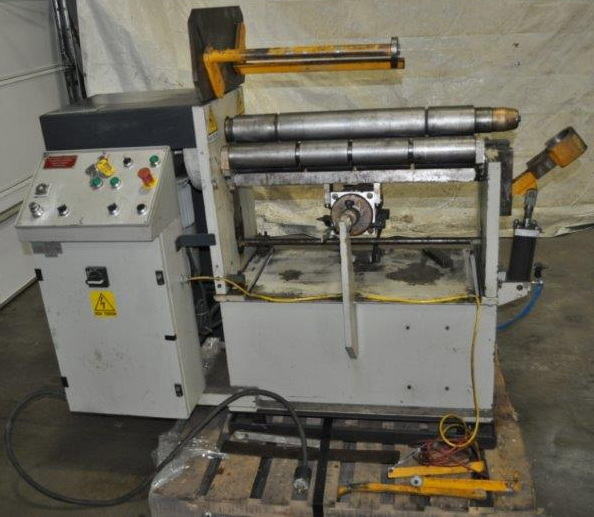

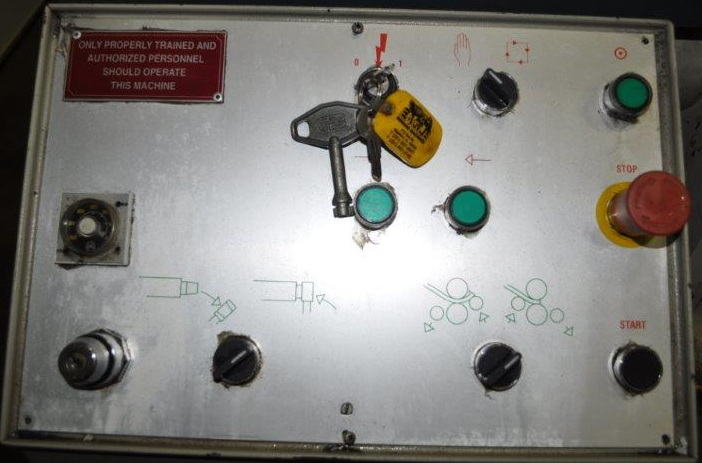

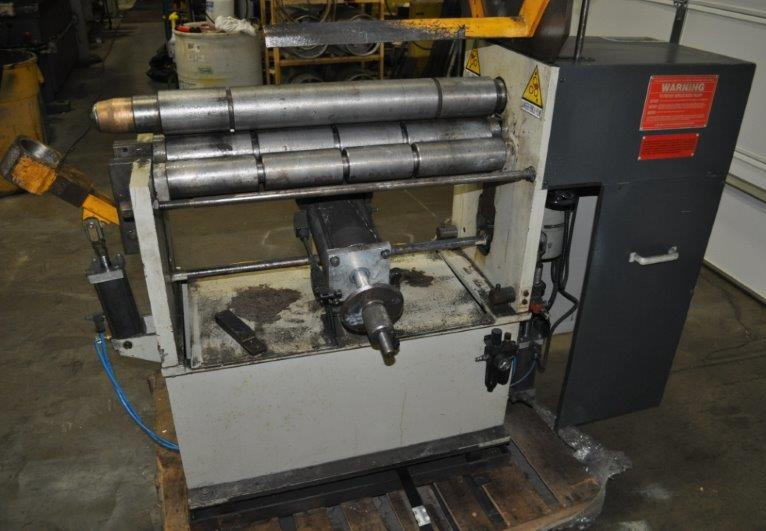

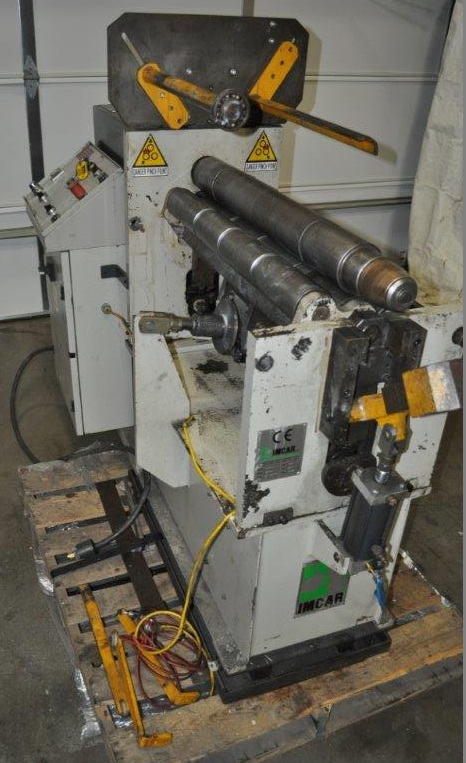

Click on picture below for larger version
30 x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW30 x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW30 x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW30 x 15 Ga IMCAR 4-Roll Plate Roller, 30 FPM, Air Drop End, 1.5kW

AGE: 2003
MODEL NUMBER: HT 10/96

SPECIFICATIONS:

Width, Max.: 30"
Thickness: 15 Gauge

Speed: 30 FPM

Top Roll Diameter: 3.77"
Lateral Roll Diameter: 3.15"

EQUIPPED WITH:

Air Drop End
Grooved Top Roll for Flanging
Air Operated Lateral Roll
Top Support Deflectors

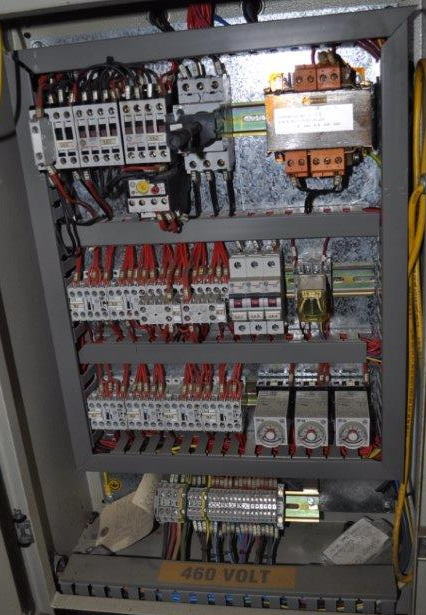

MOTOR DATA: 1.5kW, 460/60/3

OVERALL DIMENSIONS: 62" LR x 40" FB x 55" High
WEIGHT: 2,000 Lbs.
CONDITION: Good
