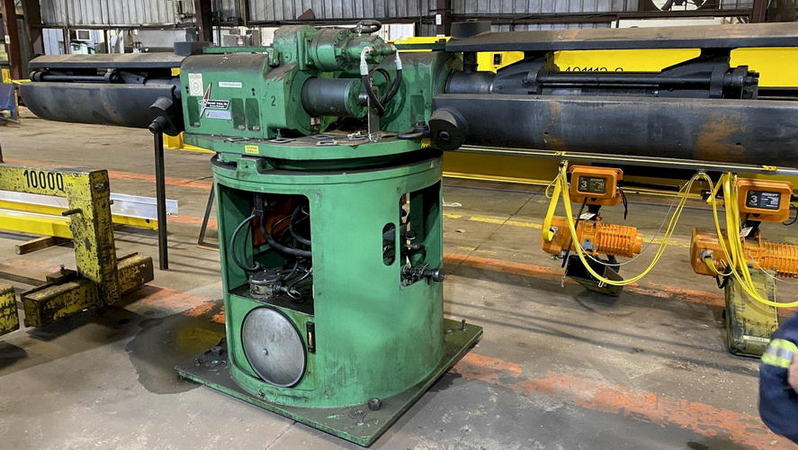

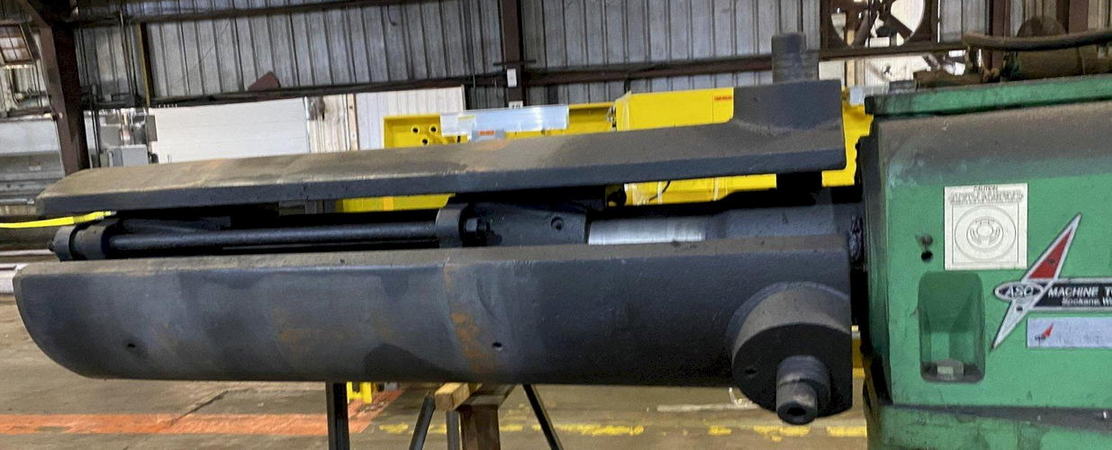

20,000 Lb ASC Double End Uncoiler, 18" to 22" ID, 72" OD, 48" Width, Coil Car   Our stock number: 52821

20,000 Lb ASC Double End Uncoiler, 18 to 22 ID, 72 OD, 48 Width, Coil Car

Click on picture below for larger version
20,000 Lb ASC Double End Uncoiler, 18 to 22 ID, 72 OD, 48 Width, Coil Car20,000 Lb ASC Double End Uncoiler, 18 to 22 ID, 72 OD, 48 Width, Coil Car20,000 Lb ASC Double End Uncoiler, 18 to 22 ID, 72 OD, 48 Width, Coil Car

MODEL NUMBER: DAU-20M48H18.524.5H200

SPECIFICATIONS:

Capacity, Per Side: 20,000 Lbs.

Coil I.D.: 18" to 22"
Coil O.D.: 72"
Coil width: 48"

PayOff Speed: 0 to 200 FPM

EQUIPPED WITH:

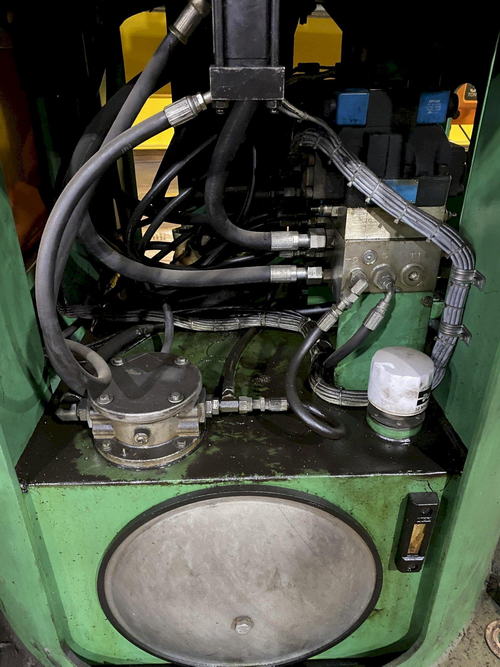

Hydraulic Expansion
Hydraulic Power Feed-Up
Hydraulic Power Rotation

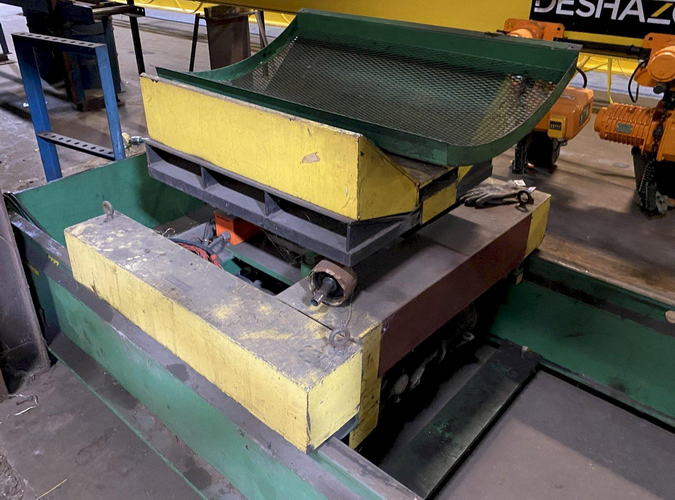

20,000 Lb. ASC Coil Car:

0 to 18" Lift Height
Floor Mounted Track Base
