New and Used Metalworking Machinery

BEAD BLASTER, DELTA, Pass Thru, 3-1/2" W x 5" H Max Parts, (7) Nozzles, Cyclone   Our stock number: 52812

BEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, Cyclone

Click on picture below for larger version
BEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, CycloneBEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, CycloneBEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, CycloneBEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, Cyclone
BEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, CycloneBEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, CycloneBEAD BLASTER, DELTA, Pass Thru, 3-1/2 W x 5 H Max Parts, (7) Nozzles, Cyclone

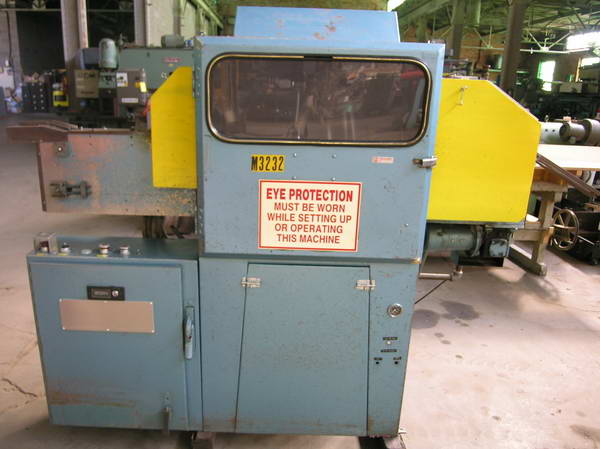

MODEL: DCM-200a PRO-FINISH

SN: C-18125


SPECIFICATIONS:

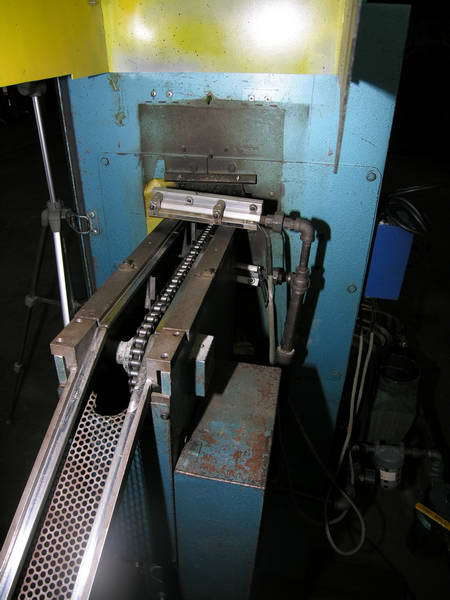

Parts Feed Down Onto Side Rails, Push Through via
Continuous Chain

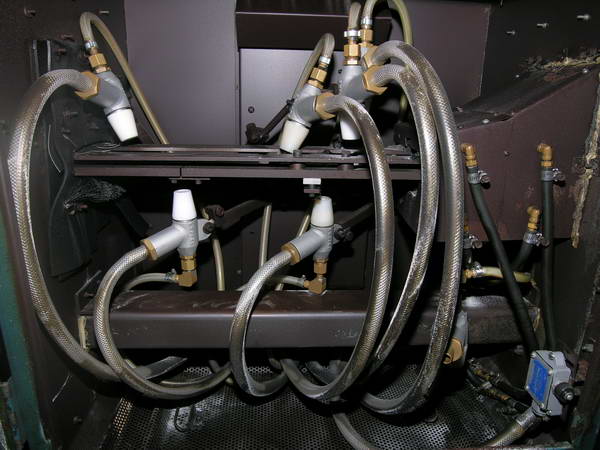

Number of Nozzles: 7, all on Adjustable Flex Hoses
Part Width, Current Rail Design: 2-1/2" to 3-1/2" Wide
Part Height: Up to 1-1/2", Modifiable to Approx. 5"

EQUIPPED WITH:

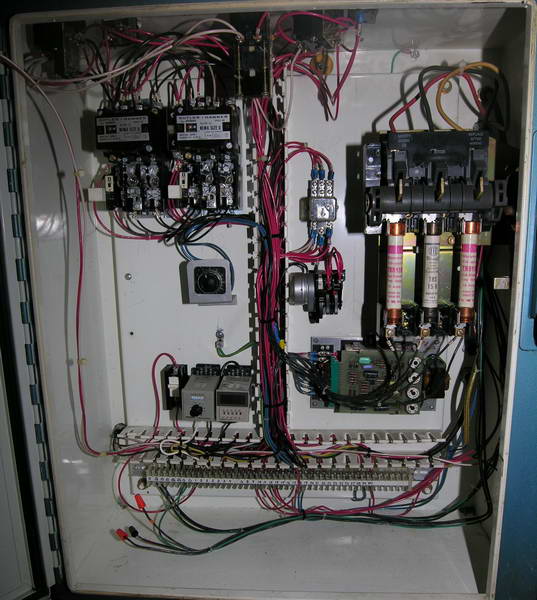

Electrically Interlocked Cabinet Enclosure

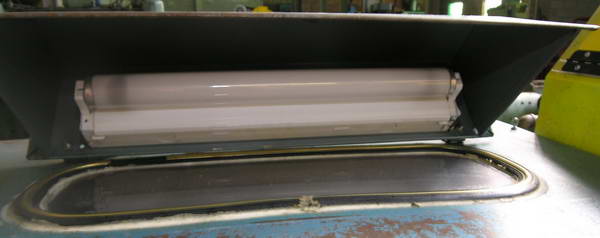

Work Light
Top and Front Inspection Windows

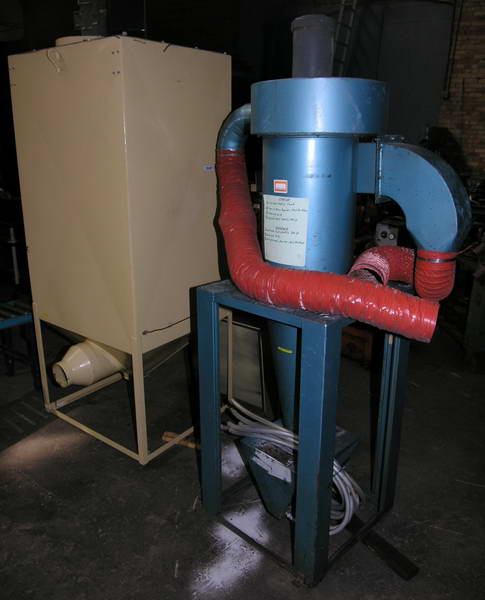

Cyclone Separation
(3) Pairs of Top and Bottom Exit Air Wipes

OVERALL DIMENSIONS: Deflasher - 7' x 2' x 6' High
Cyclone - 28" x 28" x 8' High



CONDITION: Very Good
