New and Used Metalworking Machinery

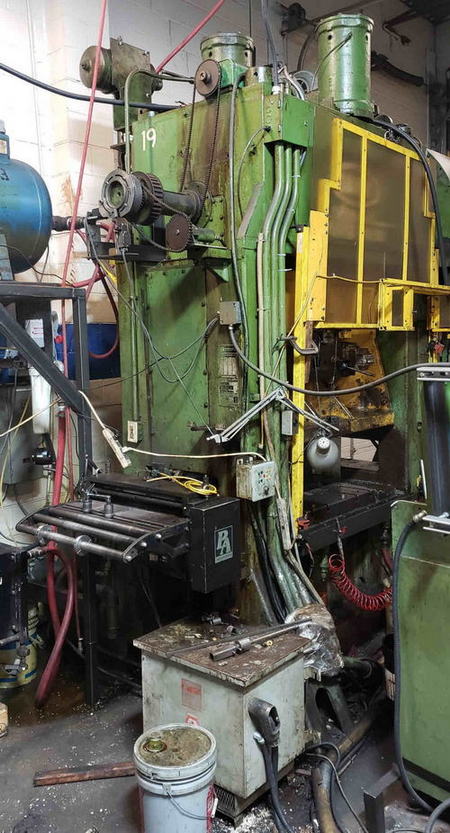

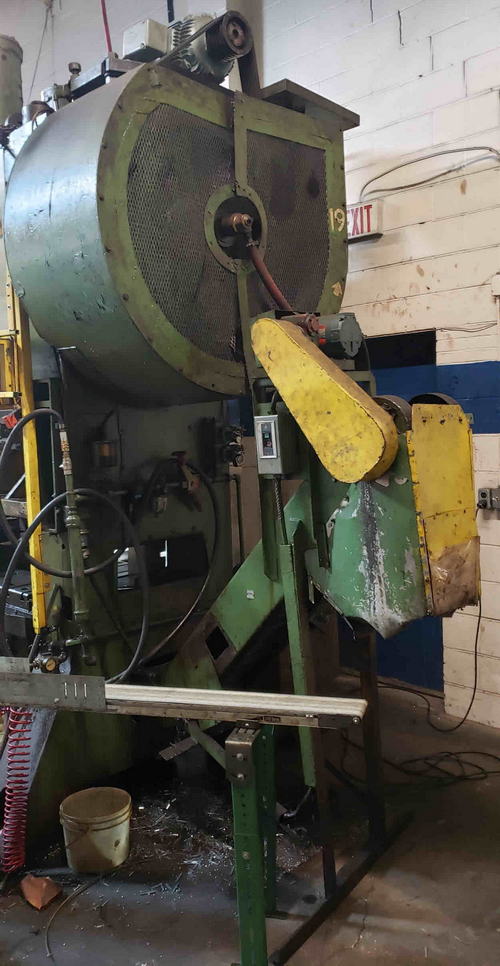

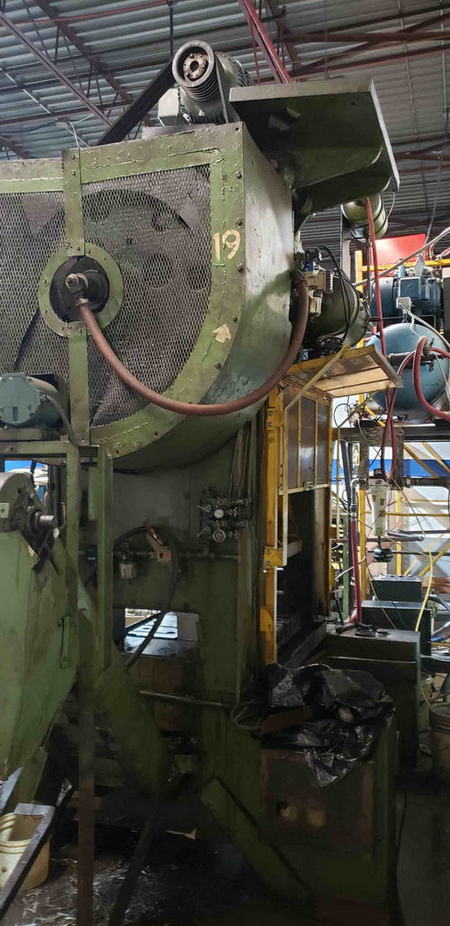

100 Ton DANLY Straight Side Press, 2" Str, 15" SH, 2" Adj, 48" x 30" Bed   Our stock number: 52798

100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed

Click on picture below for larger version
100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed
100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed100 Ton DANLY Straight Side Press, 2 Str, 15 SH, 2 Adj, 48 x 30 Bed

MODEL NUMBER: H2-100-48X30

SPECIFICATIONS:

Floor Standing

Tonnage: 100

Stroke: 2"
Shut Height: 15"
Adjustment: 2"

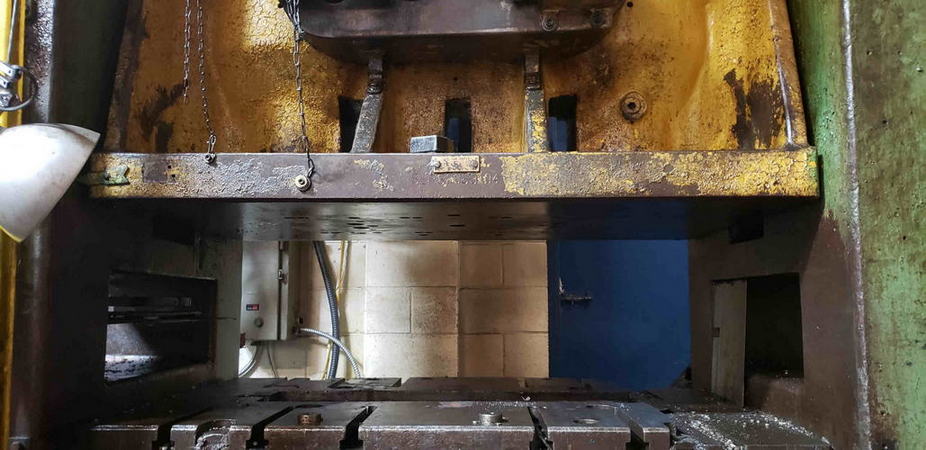

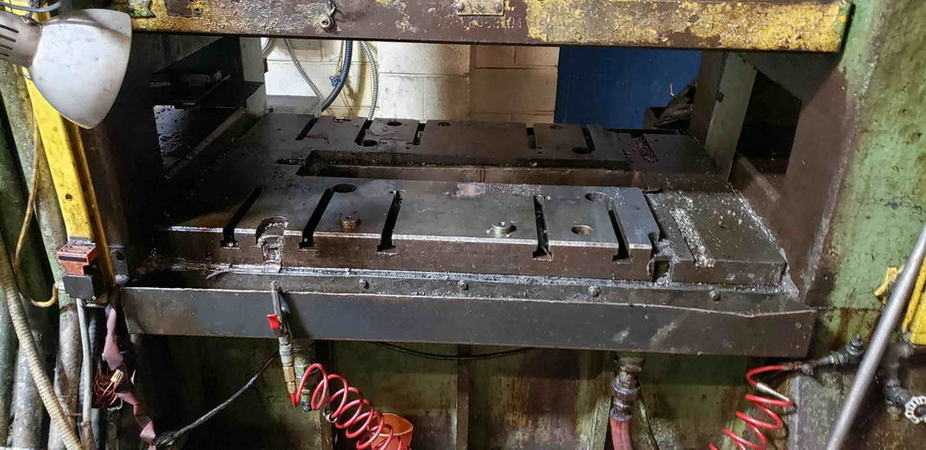

Bed and Ram Size: 48" x 30"

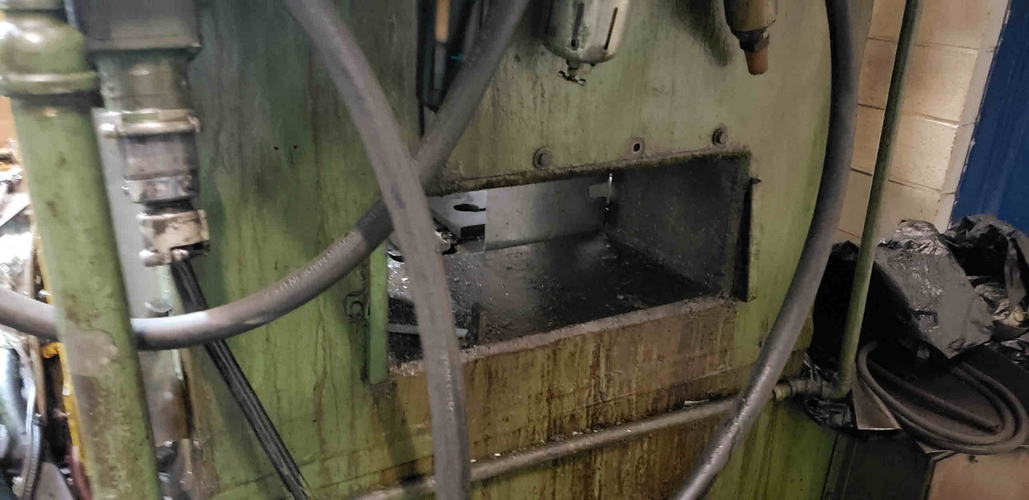

Windows, Both Sides: 20" x 8.5"

Strokes Per Minute: 125 to 250 SPM

EQUIPPED WITH:

Air Clutch
Variable Speed
Palm Push-Button with Control Station
Chip Conveyor

ELECTRICS: 575/60/3

OVERALL DIMENSIONS: 85" L x 83" W x 145" High
39" L x 25" W x 74" High Control Panel
WEIGHT: 30,000 Lbs.
