.500" x 74" MONARCH-STAMCO Hydraulic Shear, 60" Pass Line, 50 HP Our stock number: 52762

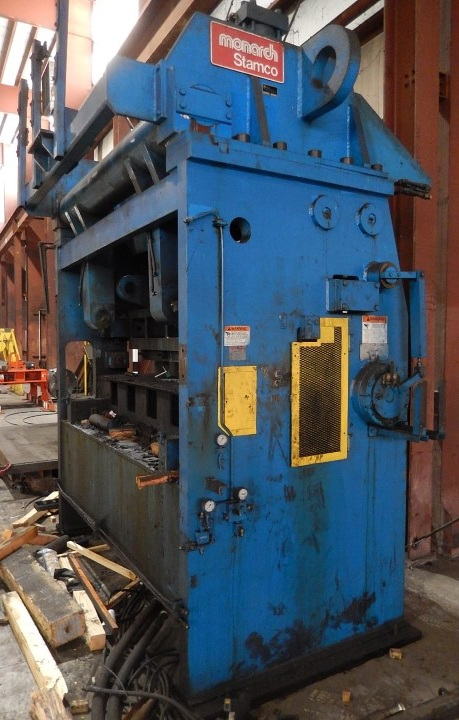

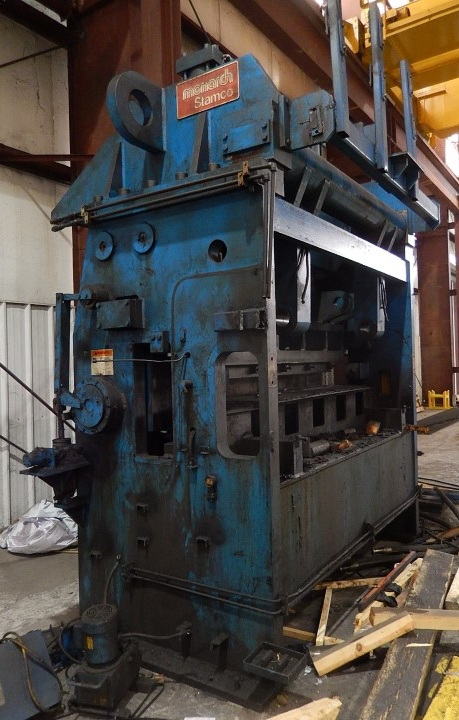

.500 x 74 MONARCH-STAMCO Hydraulic Shear, 60 Pass Line, 50 HP

Click on picture below for larger version

AGE: 2000

SPECIFICATIONS:

Material Processed: Steel

Width: 24" to 74"
Thickness: .040" to .500"

Operating Speed: 150 / 300 FPM

Knife Width: 78"

Operation: Hydraulic Cylinder
Hydraulic Cylinder Bore: 10"
Hydraulic Cylinder Stroke: 5"

Pass Line: 60"

Material Travel: Left-to-Right

EQUIPPED WITH:

Spare Hydraulic Cylinders:

(2) 8" Bore, (1) 8" Bore
5" Stroke
5.5" Rod Diameter
3000 PSI Push / Pull

MOTOR DATA: 5 HP AC, 460/603

OVERALL DIMENSIONS: 120" x 84" x 144" High
