New and Used Metalworking Machinery

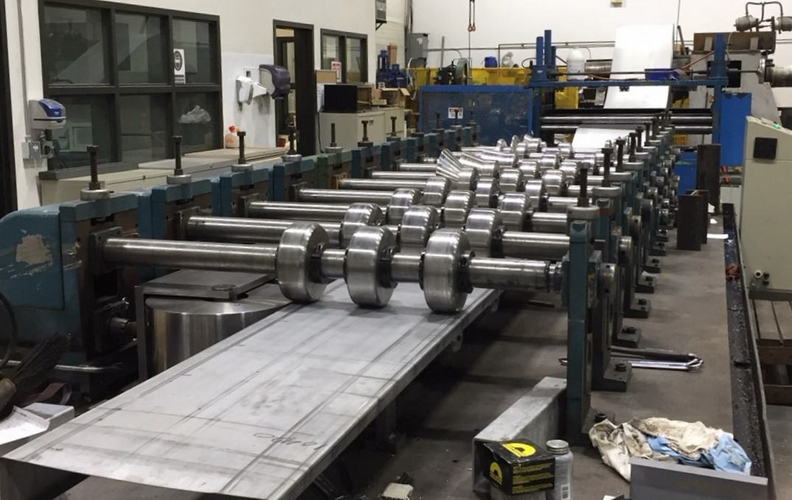

11-Stand YODER Roll Forming Line, 3" Spdl, 48" RS, 17-3/4" H, 8" V, 40 HP   Our stock number: 52608

11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP

Click on picture below for larger version
11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP
11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP11-Stand YODER Roll Forming Line, 3 Spdl, 48 RS, 17-3/4 H, 8 V, 40 HP

MODEL NUMBER: M2

SPECIFICATIONS:

Number of Stands: 11
Number of Stands Machine Will Accommodate: 13

Spindle Diameter: 3"
Roll Space: 48"
Horizontal Center Distance: 17-3/4"
Vertical Center Distance: 8"

EQUIPPED WITH:

10,000 Lb. PERFECTO Model RS-10-30 B Uncoiler:

Age: 1978
Coil I.D.: 20" to 24"
Coil O.D., Max.: 60"
Coil Width, Max.: 30"

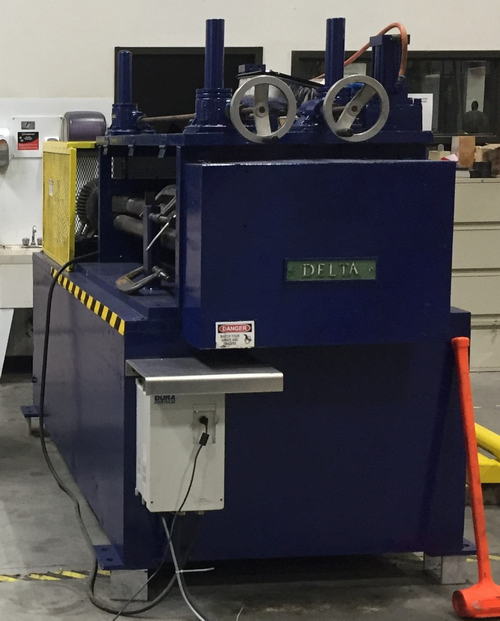

DELTA Straightener

MOTOR DATA: 40 HP, 60/3

OVERALL DIMENSIONS: 230" x 78"
