New and Used Metalworking Machinery

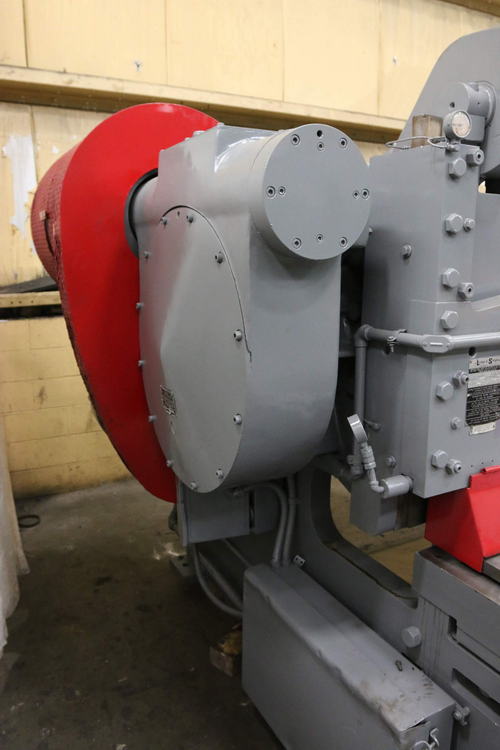

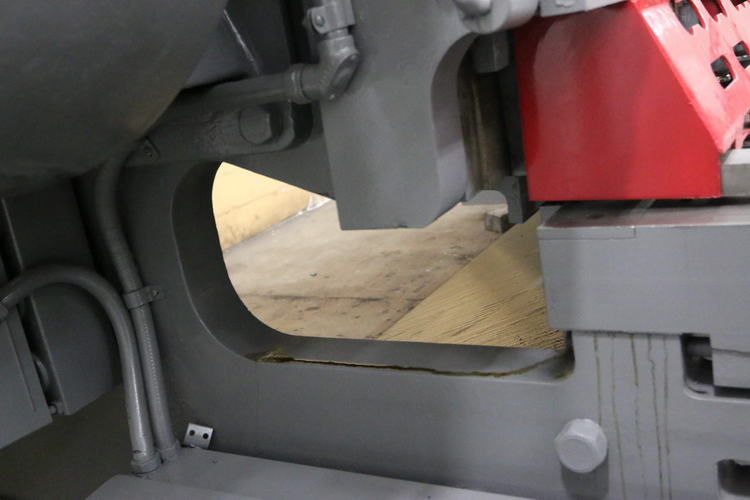

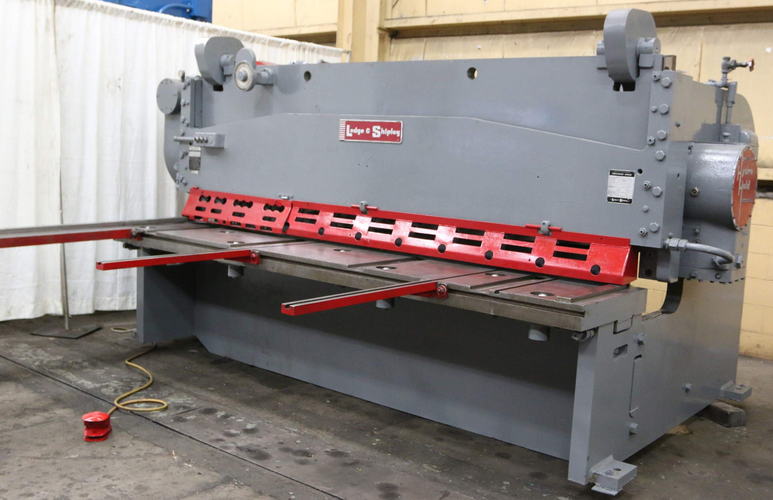

5/8" x 10' LODGE & SHIPLEY Power Squaring Shear, 48" FOPBG, 40 SPM, 20 HP   Our stock number: 52555

5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP

Click on picture below for larger version
5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP
5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP5/8 x 10' LODGE & SHIPLEY Power Squaring Shear, 48 FOPBG, 40 SPM, 20 HP

MODEL NUMBER: S1010

SPECIFICATIONS:

Capacity: 10' x 5/8"

Distance Between Housings: 10'4"
Length of Blades: 124"

Depth of Throat: 18"

Strokes Per Minute: 40

Hydraulic Hold Downs: 21-1/4 Ton

Blade Rake: 17/32 Per Foot

EQUIPPED WITH:

48" Front Operated Power Back Gauge
Air Clutch and Brake
(3) Front Arm Supports
102" Squaring Arm
Electric Foot Trip
Automatic Lube
Roller Ball in Table

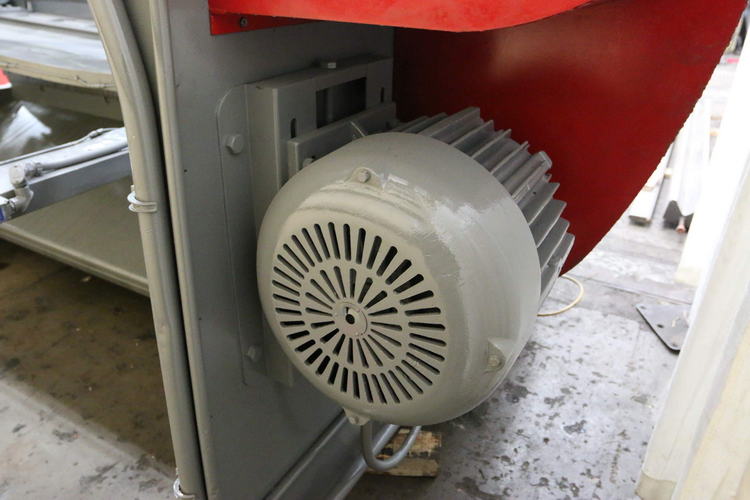

MOTOR DATA: 20 HP
