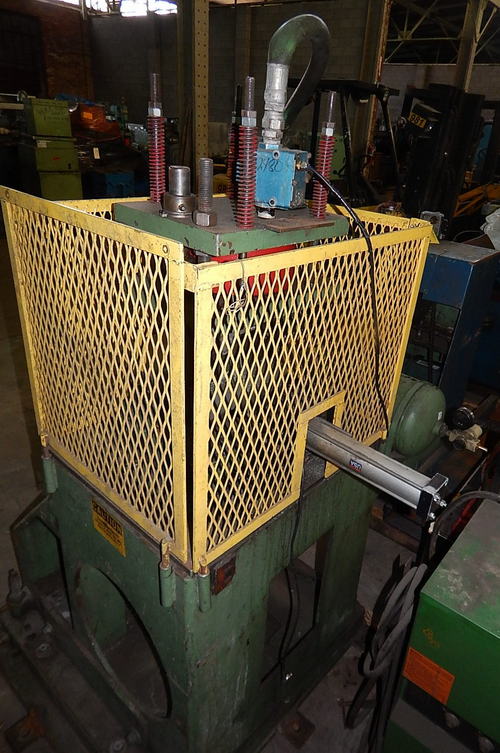

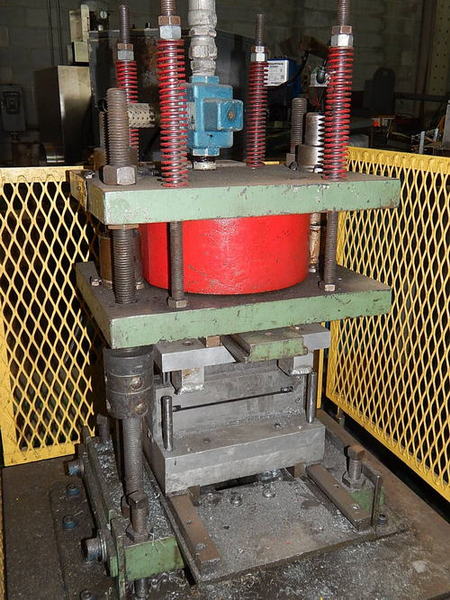

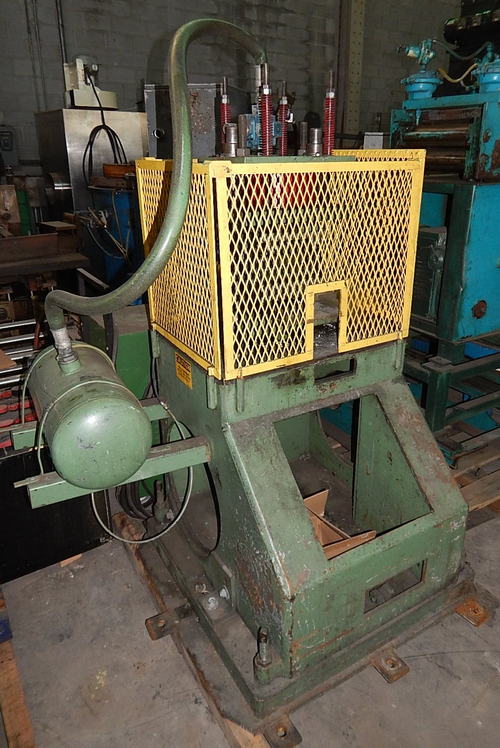

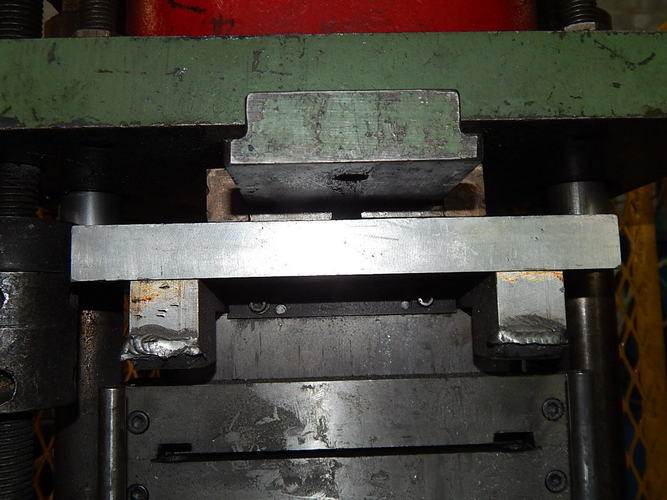

5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5" x 12" Die Space, 16" x 12" Top Plate   Our stock number: 52422

5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5 x 12 Die Space, 16 x 12 Top Plate

Click on picture below for larger version
5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5 x 12 Die Space, 16 x 12 Top Plate5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5 x 12 Die Space, 16 x 12 Top Plate5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5 x 12 Die Space, 16 x 12 Top Plate5 Ton PNEU POWR 2-Post Cut-Off Press, 10.5 x 12 Die Space, 16 x 12 Top Plate

MODEL NUMBER: 2P-5

SPECIFICATIONS:

2-Post

Capacity: 5 Ton

Die Space: 10-1/2" x 12"

Post Diameter: 1-1/2"

Bed Ram, Top Plate: 12" FB x 16" LR

Thickness, Bed: 2-1/4"
Thickness, Ram: 1-1/2"
Thickness, Top Plate: 1-1/2"

Sub Plate: 14" LR x 28" FB x 3/4" Thick

Base: 15" LR x 12" FB
Floor to Top of Lower Platen: 36" +/- 2"

EQUIPPED WITH:

Air Surge Tank

ALSO AVAILABLE: PNEU POWR Single-Tilt Base (Stock # 47661)

OVERALL DIMENSIONS: 52" LR x 44" FB
