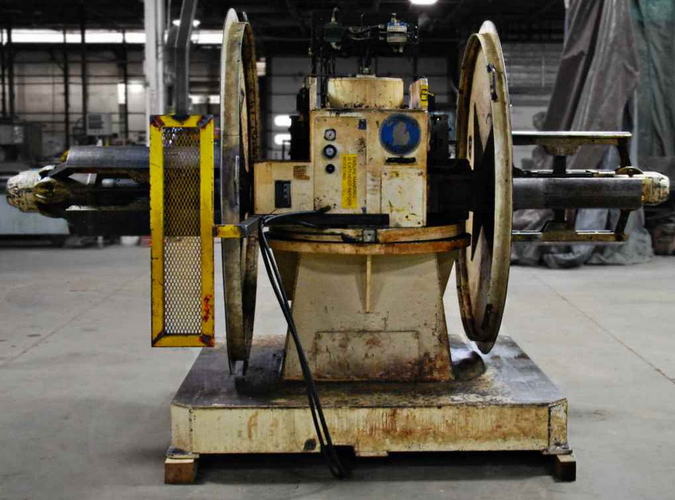

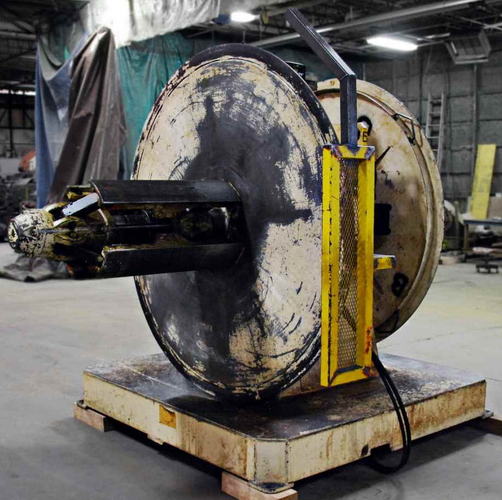

10,000 Lb MICHIGAN ROLL FORM Double End Uncoiler, 16" to 20" ID, 72" OD, 24" W   Our stock number: 52402

10,000 Lb MICHIGAN ROLL FORM Double End Uncoiler, 16 to 20 ID, 72 OD, 24 W

Click on picture below for larger version
10,000 Lb MICHIGAN ROLL FORM Double End Uncoiler, 16 to 20 ID, 72 OD, 24 W10,000 Lb MICHIGAN ROLL FORM Double End Uncoiler, 16 to 20 ID, 72 OD, 24 W

MODEL NUMBER: DHCH-98B

SPECIFICATIONS:

Non-Motorized

Capacity, Per Side: 10,000 Lbs.
Coil I.D.: 16" to 20"
Coil O.D., Max.: 72"
Coil Width: 24"

EQUIPPED WITH:

4-Arm Hydraulic Expansion
Air Brakes
Manual Rotation with Pin Lock
Back Plates

OVERALL DIMENSIONS: 11' x 8' x 7'
WEIGHT: 11,500 Lbs.
CONDITION: Missing Controls
