New and Used Metalworking Machinery

60" x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.   Our stock number: 52368

60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.

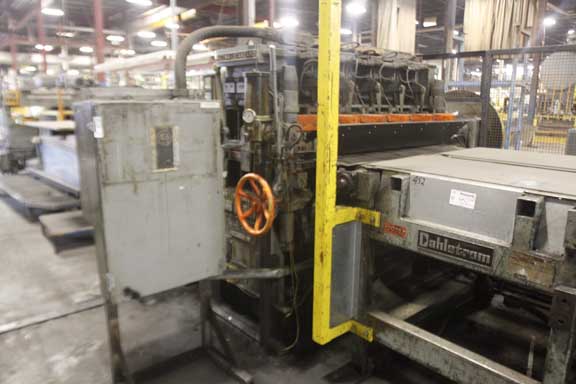

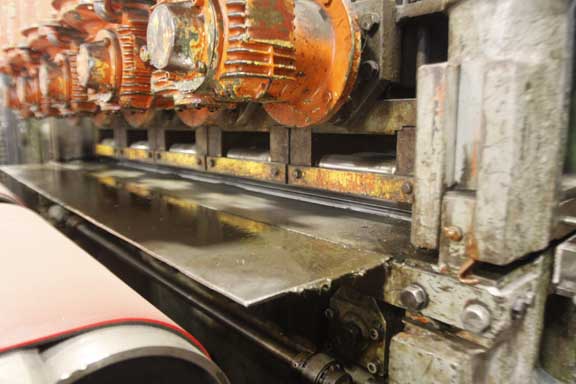

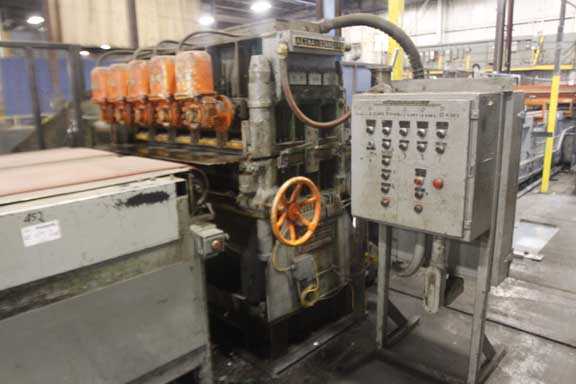

Click on picture below for larger version
60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.
60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.60 x 16 GA. AETNA STANDARD 21 ROLL PRECISION LEVELER, 1963, 2 Speed 30/15 HP.

AGE: 1963
MODEL: N/A

SPECIFICATIONS:

Width: 60" (Actual Roll Width 61")
Capacity: 16 Ga. (.060")
Rolls: 21 (11 Over 10)
Work Roll Diameter: 1-1/2"

EQUIPPED WITH: 5 Back Up Banks of Rolls Top & Bottom
All Motorized Adjustment w/ Pos. Readouts
Front & Rear Manual Work Gap Adjustment
Allows for Tiltling of Entire Upper Roll Bank

MOTOR: 30/15 HP Two Speed

DIMENSIONS: 105" x 50" x 80"H, Foot Print: 109" x 33" w/o mtr.
