New and Used Metalworking Machinery


60 Ton JOHNSON OBI Press, 4" Str, 15" SH, 56" x 22" Bed, 100 SPM, 5 HP, Updated   Our stock number: 51762

60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated

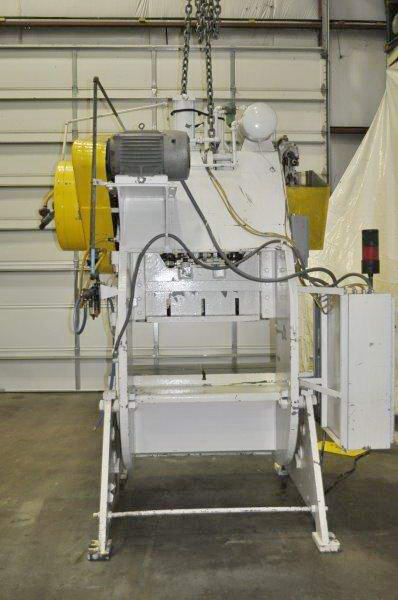

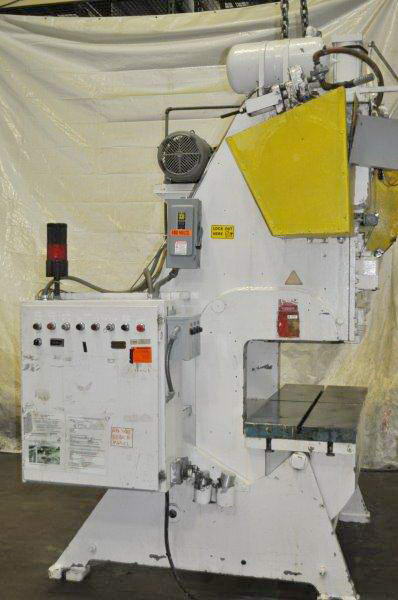

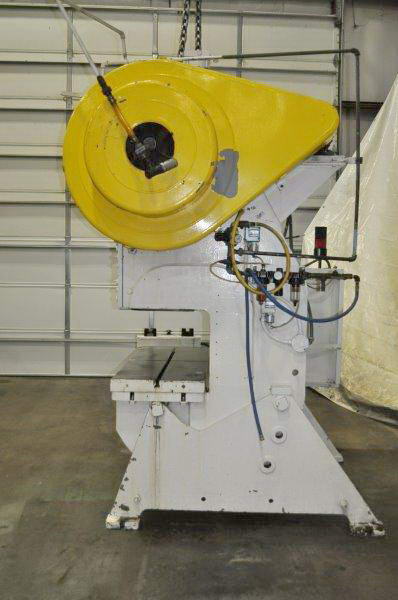

Click on picture below for larger version
60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated60 Ton JOHNSON OBI Press, 4 Str, 15 SH, 56 x 22 Bed, 100 SPM, 5 HP, Updated

MODEL NUMBER: G2-60-56-22
YEAR: 1965

SPECIFICATIONS:

Stroke: 4"
Shut Height: 15"
Ram Adjustment: 3-1/2" - Manual
Bed Area: 56" x 22", Bolster 56" x 22" x 2 3/4" T-Slotted
Ram Area: 40" x 22"
Strokes Per Minute: 100

EQUIPPED WITH:

Operator Control Pedestal w/ Dual Touch Buttons & E-Stop
Dual Omron PLC Controlers
Auto Stop Parts Counter
Inch & Single
Foward/Reverse Switch
Two-Hand Safety Operator Controls on Pedestal Std.
Updated Machine Controls w/ Rotary Cam & Dual Herion

Air Clutch Valve w/ Dual Quick Exhaust Mufflers
Accu-Coder Electronic Rotary Cam Switch
Dual Air Counterbalance
(2) Electrically Interlocked Ram Blocks
Three Ram Knock-Out Slots
Air Surge Tank
Automatic Lube System w/ Gauge
Air System Filter, Lubricator and Regulator
Interlocked Air Pressure Switch
Kvar Energy Savings Power Factor Reduction Capacitors

MOTOR DATA: 5 HP, 480/3/60

OVERALL DIMENSIONS: 5' x 5' x 10'4"
WEIGHT: 14,000 Lbs.
