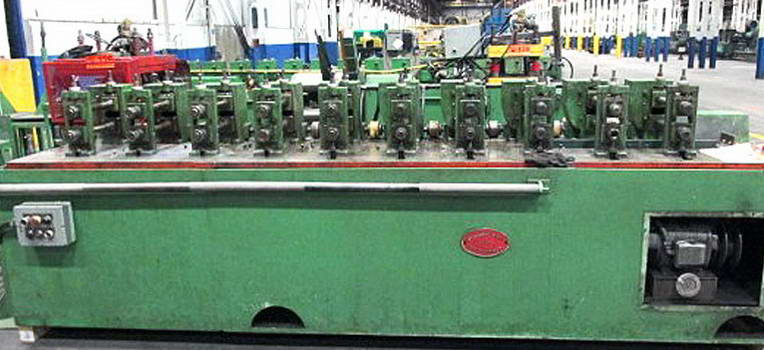

10 STND B & K / MV Roll Forming Line, 1-1/4" Spdl Dia, 10" RS, 5 HP   Our stock number: 49451

10 STND B & K / MV Roll Forming Line, 1-1/4 Spdl Dia, 10 RS, 5 HP

Click on picture below for larger version
10 STND B & K / MV Roll Forming Line, 1-1/4 Spdl Dia, 10 RS, 5 HP10 STND B & K / MV Roll Forming Line, 1-1/4 Spdl Dia, 10 RS, 5 HP

SPECIFICATIONS:

Line Direction: Right to Left

Spindle Diameter: 1-1/4"
Roll Space: 10"
Horizontal Centers: 12"
Vertical Adjustment: 4" to 5"
Base to Center Lower Spindle: 4"
Base Working Surface: 26-1/2"
Base Coolant Trough: 31-1/2"
Pass Line: 38"
Line Speed: 150 FPM

EQUIPPED WITH:

Push Button Motor Starter
Safety Stop Bar
Coolant Tank
Straightener
Mandrel Type Uncoiler
15 Ton MV Pneumatic 4-Post Cut-Off
14' Run Off Table

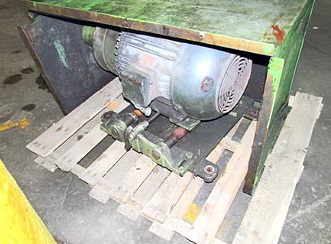

MOTOR DATA: 5 HP, 3 Phase
