New and Used Metalworking Machinery

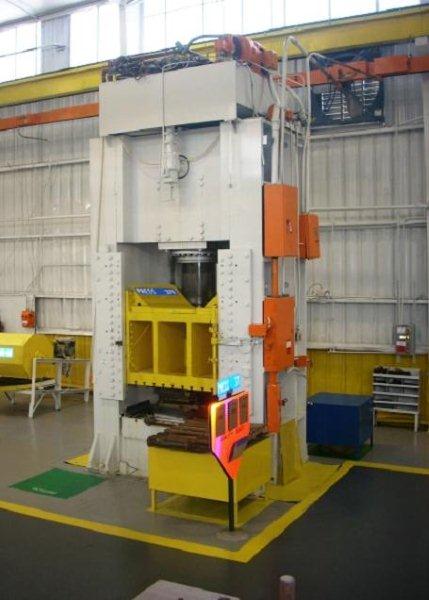

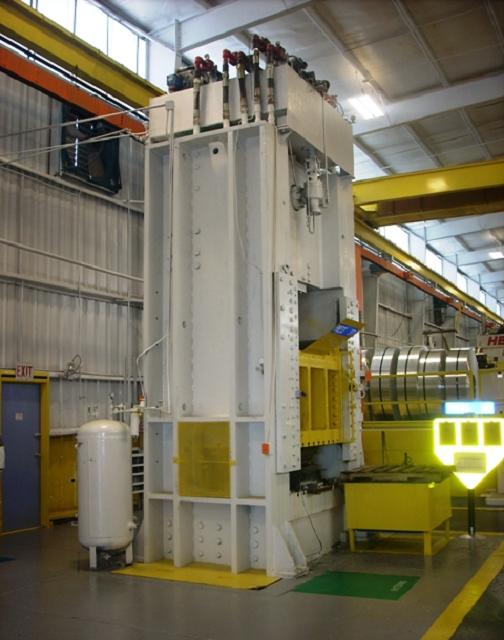

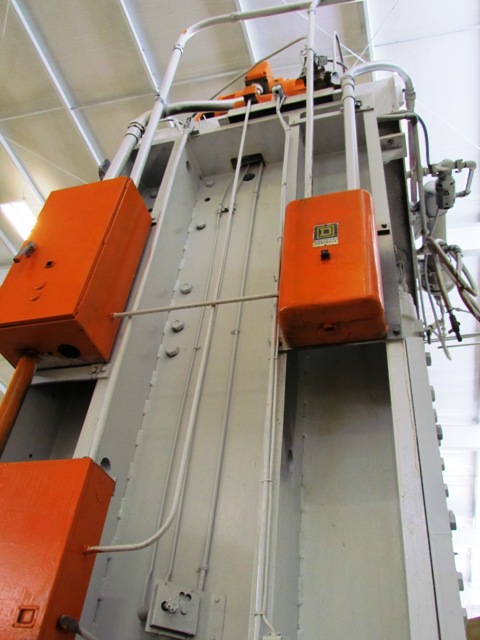

600 Ton PACIFIC Hyd Press, 30" Str, 40" Dylt, 67" x 60" Bed, 50 HP & 100 HP   Our stock number: 49305

600 Ton PACIFIC Hyd Press, 30 Str, 40 Dylt, 67 x 60 Bed, 50 HP & 100 HP

Click on picture below for larger version
600 Ton PACIFIC Hyd Press, 30 Str, 40 Dylt, 67 x 60 Bed, 50 HP & 100 HP600 Ton PACIFIC Hyd Press, 30 Str, 40 Dylt, 67 x 60 Bed, 50 HP & 100 HP

AGE: 1964
MODEL NUMBER: 600-5-SCSS

SPECIFICATIONS:

Stroke: 30"
Daylight: 40"
Bed Area: 67" x 60"
Ram Area: 60-1/2" x 60-1/2"
T-Slotted Bolster: 11.5"

Windows: 24" W x 30" H

Cylinder Diameter: 20"

Cushion Pad: 46" x 46"
Cushion Stroke: 12"

Speeds: Rapid Advance - 440 IPM
Pressing - 65 IPM
Return - 458 IPM

EQUIPPED WITH:

T-Slotted Ram
Cushion
Hydraulics Mounted On Top Of Press, Removable
Adjustable Tonnage

MOTOR DATA: 100 HP, 50 HP, 220/440, 1770 RPM

OVERALL DIMENSIONS: 108" LR x 84" FB x 22'6" High
WEIGHT: 140,000 Lbs.
CONDITION: Good
