New and Used Metalworking Machinery

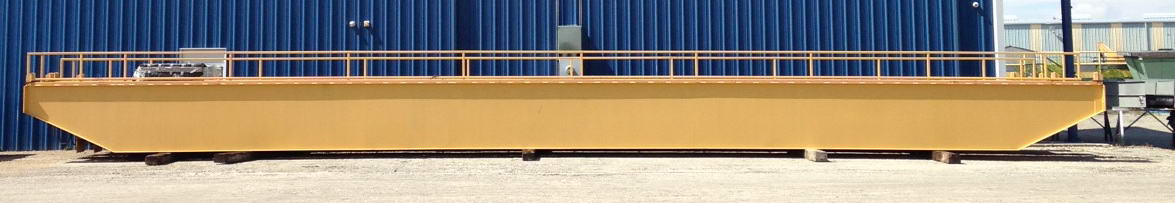

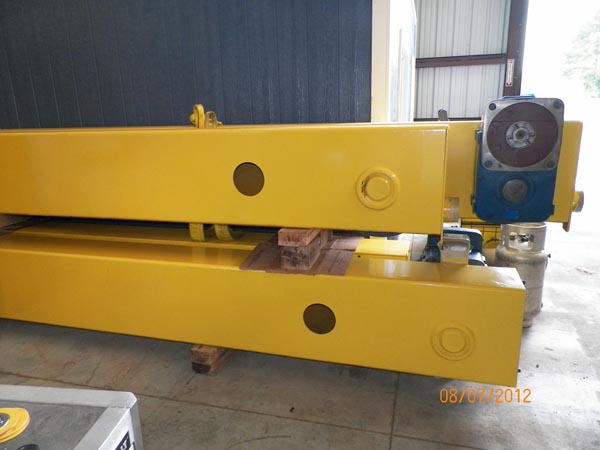

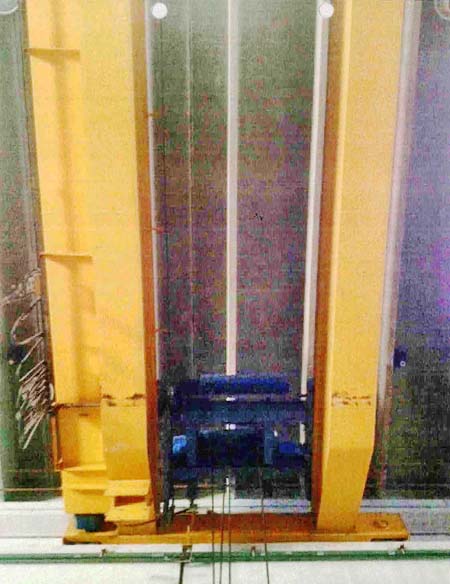

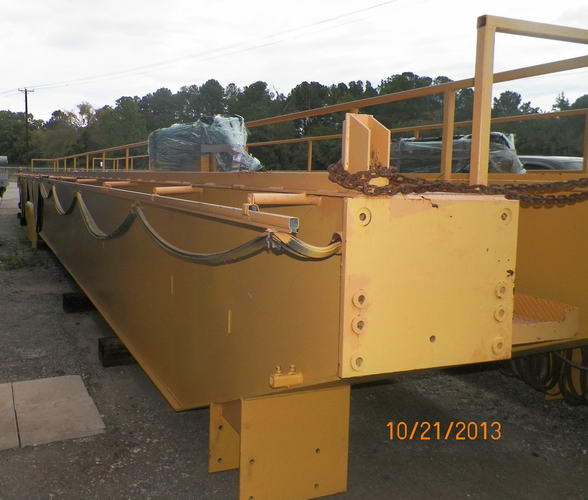

22.7 Ton DEMAG, Span 66'8", Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed   Our stock number: 49028

22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed

Click on picture below for larger version
22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed
22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed22.7 Ton DEMAG, Span 66'8 , Top Running, Dbl Girder, Pendant, 2-Speed, Refurbed

AGE: 1983

MODEL: TRDGWD-20-66

SPECIFICATIONS:

Capacity: 20 - 22.7 Ton
Span: 66'8"
Lift: 32'

EQUIPPED WITH: Top Running
Double Girder
Wire Rope Hoists
Pendant Button Controls
2-Speed 25 HP Hoist Motor

MOTOR: 25 HP 460/60/3

WEIGHT: Girders 4' x 6'H x 69' L, 16,000 lbs. ea.

NOTE: Removed from Service in 2012, Refurbished and Never Put

Back in Service.
