New and Used Metalworking Machinery

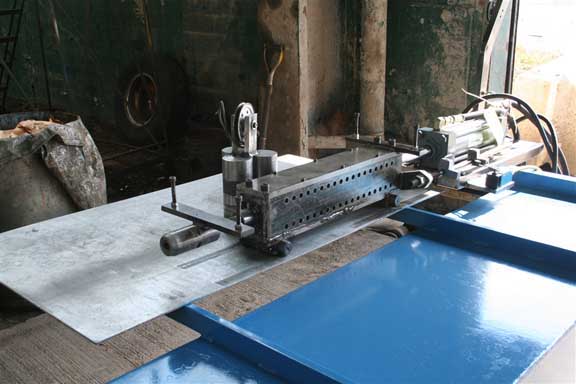

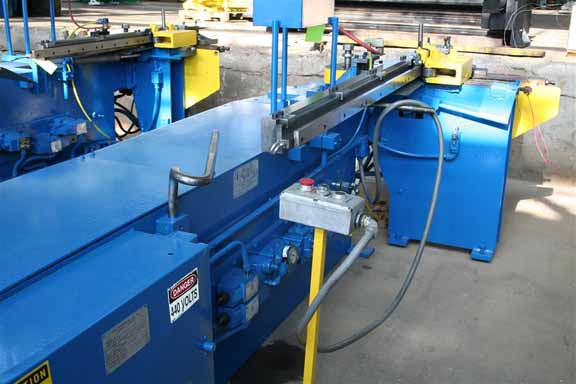

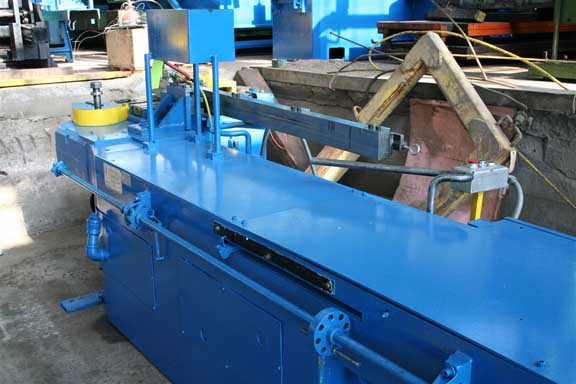

2-1/2" PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9" Over Mandrel, 12" Radi   Our stock number: 46497

2-1/2 PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9 Over Mandrel, 12 Radi

Click on picture below for larger version
2-1/2 PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9 Over Mandrel, 12 Radi2-1/2 PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9 Over Mandrel, 12 Radi2-1/2 PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9 Over Mandrel, 12 Radi2-1/2 PINES MODEL 1 1/4 Bender, Counter Clockwise, 20'9 Over Mandrel, 12 Radi

AGE: N/A

SPECIFICATIONS:

Extra Heavy Pipe IPS: 3"
Non-Ferrous Tubing YP: to 12000 PSI 3-1/2" x .188"
Non-Ferrous Tubing YP: to 25000 PSI 3-1/2" x .120"
Steel Tubing YP: to 40000 PSI 3-1/2" x .083"
Steel Bar Round YP: to 40000 PSI 1-7/8" Dia.
Max. Tube Length: 20'9" Over Mandrel (Approx.)
Extension Table w/Hydraulic Push Cycle: 14'4"
Max. Radius: 12"
Bending Arm: 30"
Bending Arm Speed: 5.5 RPM

EQUIPPED WITH: Hydraulic Mandrel Extractor
(3) Button Pedestal Control
8-Position Degree Turret of Bend Selector
Counter Clockwise Rotation

Motor Data: 7-1/2 HP

Loaded on Truck.............................Toledo, OH
**PHOTO AVAILABLE
