New and Used Metalworking Machinery

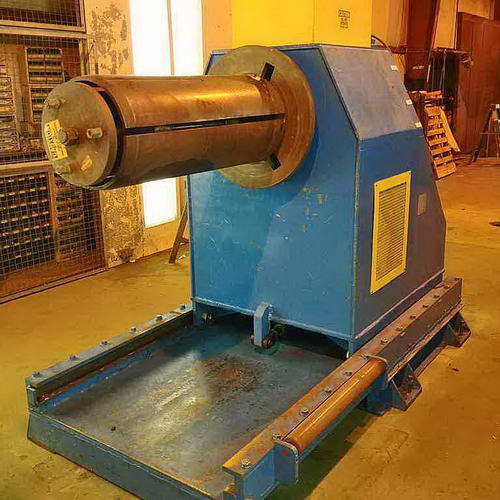

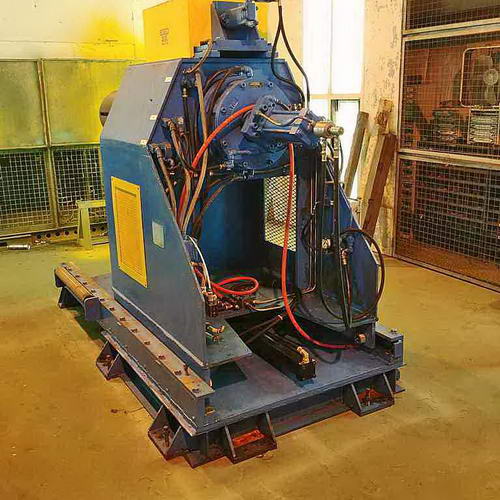

20,000 Lb PRO ECO Uncoiler, 16" to 20" ID, 36.5" Mandrel, 50" Mandrel Ctr to Flr   Our stock number: 51571

20,000 Lb PRO ECO Uncoiler, 16 to 20 ID, 36.5 Mandrel, 50 Mandrel Ctr to Flr

Click on picture below for larger version
20,000 Lb PRO ECO Uncoiler, 16 to 20 ID, 36.5 Mandrel, 50 Mandrel Ctr to Flr20,000 Lb PRO ECO Uncoiler, 16 to 20 ID, 36.5 Mandrel, 50 Mandrel Ctr to Flr20,000 Lb PRO ECO Uncoiler, 16 to 20 ID, 36.5 Mandrel, 50 Mandrel Ctr to Flr20,000 Lb PRO ECO Uncoiler, 16 to 20 ID, 36.5 Mandrel, 50 Mandrel Ctr to Flr

AGE: 1995

SPECIFICATIONS:

Coil I.D.: 16" to 20"
Center of Mandrel to Floor: 50"
Coil Width: 36.5"

Main Shaft Diameter: 8"

EQUIPPED WITH:

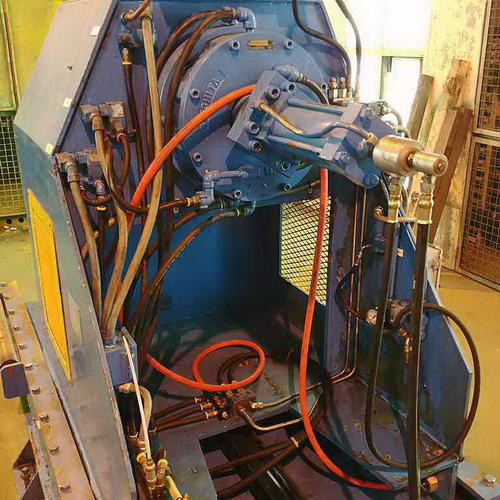

Hydraulic Wedge Type Expansion
Hydraulic Slide Base

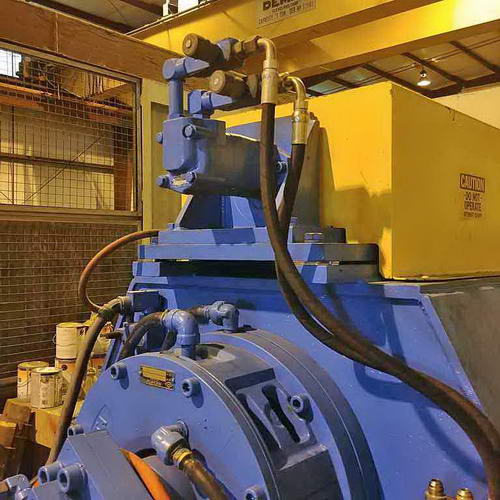

Hydraulic Motor Feedup
Overrunning Clutch
16" Dia. Wichita Water Cooled Brake

OVERALL DIMENSIONS: 9' L x 4'3" W x 7' High
