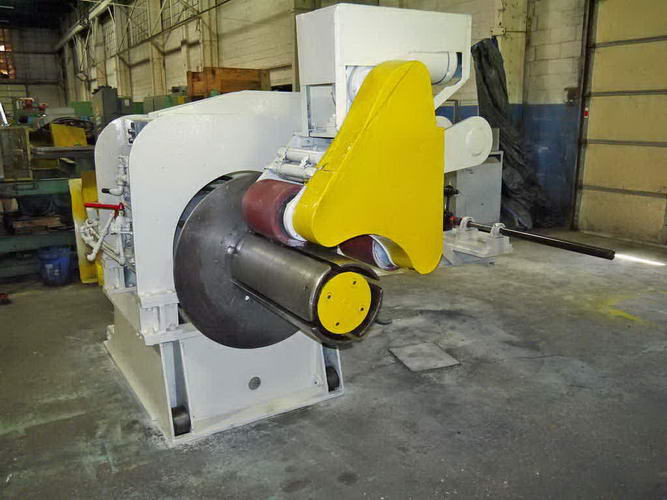

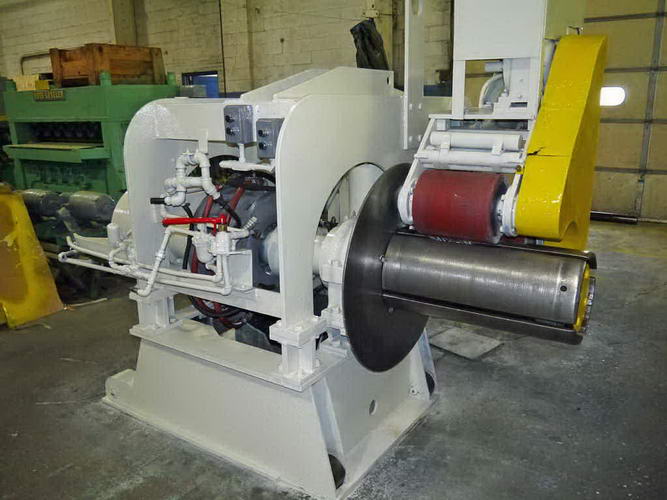

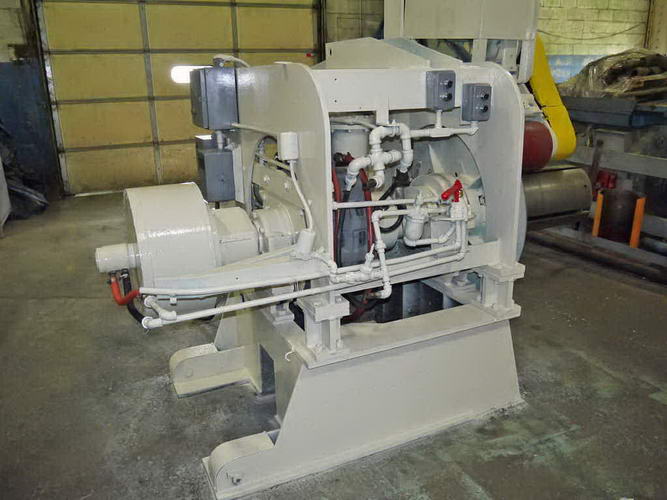

20,000 Lb CMP Uncoiler, 13.5" to 16.5" ID, 50" OD, 29.5" Width, 34.5" Passline   Our stock number: 51570

20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline

Click on picture below for larger version
20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline
20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline20,000 Lb CMP Uncoiler, 13.5 to 16.5 ID, 50 OD, 29.5 Width, 34.5 Passline

SPECIFICATIONS:

Capacity: 20,000 Lbs.
Coil I.D.: 13.5" to 16.5"
Coil O.D., Max.: 50"
Face Segments: 29.5"

Shaft Diameter At Forward Bearing: 8"

Passline, Floor To Center Of Mandrel: 34.5"

Line Direction: Right to Left

EQUIPPED WITH:

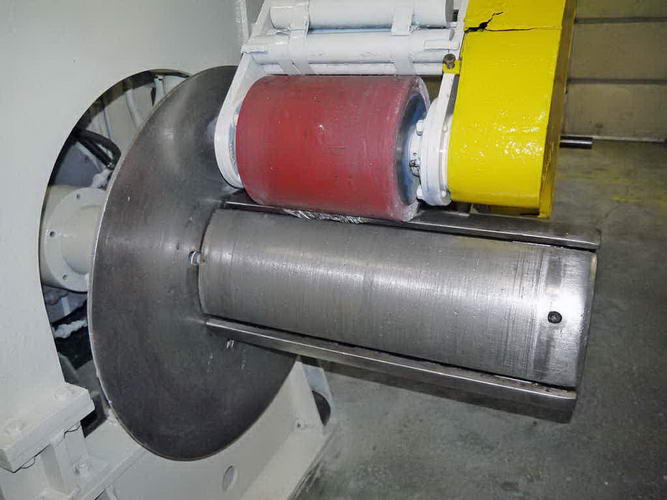

4-Segment Mandrel
Air Cylinder Powered Expansion
Powered Holddown Roll, Dual Polyurethane Covered Rolls,
AC Motor Thru Reducer

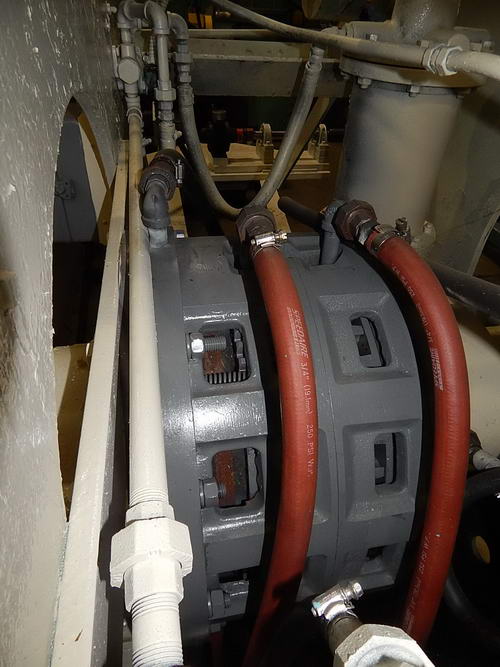

Wichita Water Cooled Brake

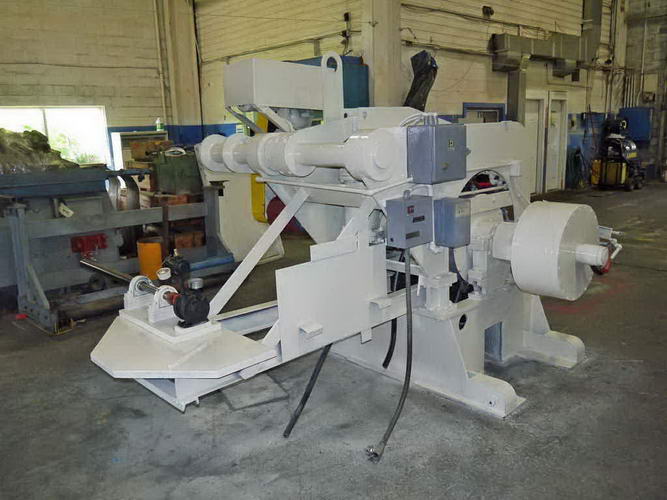

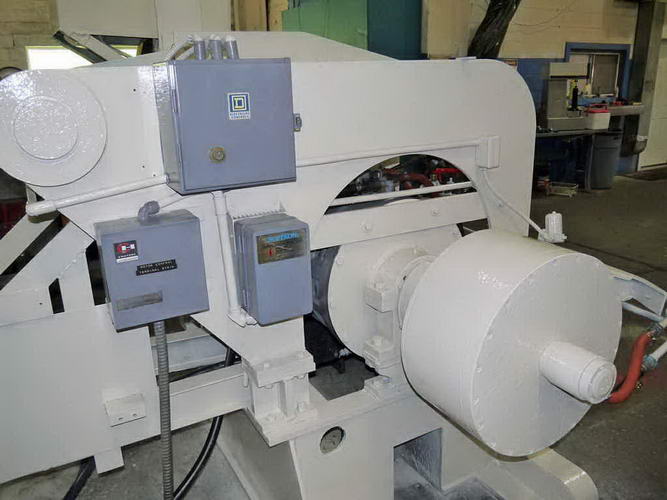

Attached Paper Winder, Air Motor Powered

OVERALL DIMENSIONS: 103" L x 74" W x 84" High
120" Wide Including Paper Winder
