New and Used Metalworking Machinery

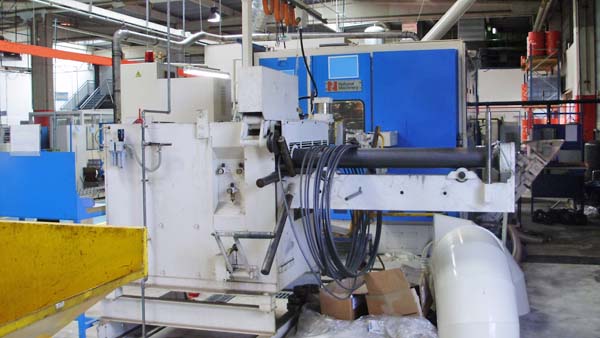

0.53" NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,   Our stock number: 51546

0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,

Click on picture below for larger version
0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,
0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,0.53 NATIONAL MODEL 8L4 HIGH SPEED BOLT MAKER, 1986,

AGE: 1986

SPECIFICATIONS:

Pieces per Minute: 185
Cut-Off Diameter: 0.53" (13.5mm)
Cut-Off Length: 5" (127mm)
Length Under Head: 3-3/4" (95mm)
Number of Dies: 4

EQUIPPED WITH: Punch Kick Out
Special Staggered Bore Die Block Arranged for

Warm Forming w/Cooling System
Brankamp Load Monitor
Noise Reduction Cabin
Motorized Decoiler & Wire Straightener
Finished Scrap Conveyors
Induction Heater Celes 50KW
Smoke Extraction & Filtration System
Fire Safety System
Set of Tooling, Rollers, Shear & Spare Parts

Motor Data: 60 HP (45 kw), 380/50/3

Floor Space: 5.54 M x 3.07 M
Weight: 36.4 Tons
