AGE: 2009
SPECIFICATIONS:
Capacity: 10,000 Lb. x 36" Wide
Coil O.D., Max.: 48"
Vertical Lift, Approx.: 9.5" to 10"
Passline, Floor To Bottom Of "V" Cradle: 52"
Passline, Floor To Top Of Conveyor Rolls: 41"

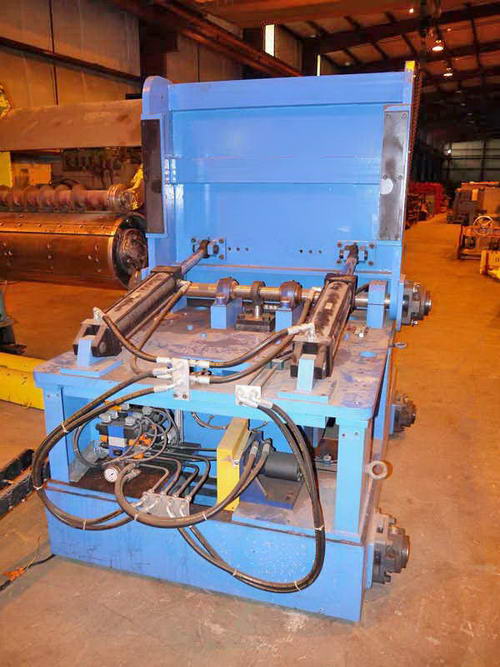

EQUIPPED WITH:
36" Long "V" Cradle, Rubber Lines
(2) Hydraulic Powered Tilt Cylinders,
4" Bore x 20" Stroke Parker Hydraulic Cylinders
(1) Hydraulic Lift Cylinder

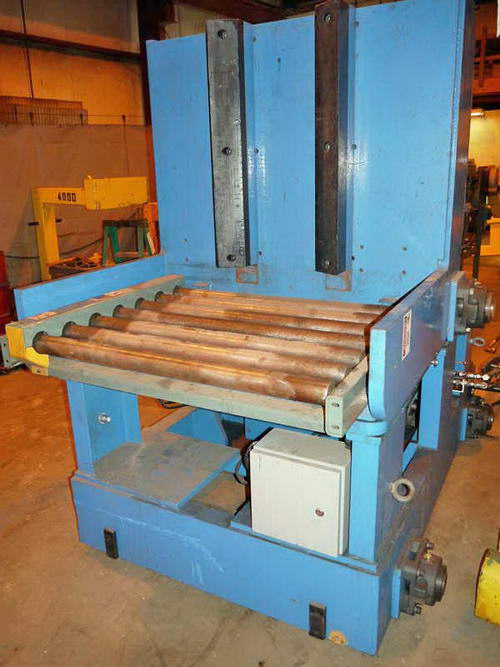

Powered In-Feed Roller Conveyor,
2.5" Dia. x 39.375" Face Rolls
Hydraulic Power Track
OVERALL DIMENSIONS: 96" L x 63" W x 81" High
WEIGHT: 8,000 Lbs.
