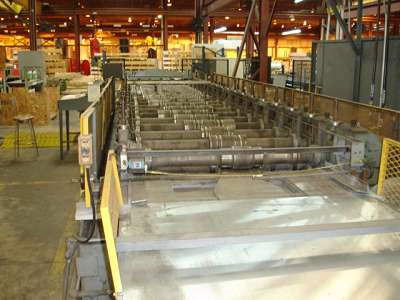

16 STND YODER Building Panel Roll Forming Line, 54" RS, .015"-.030" Thk, 100 HP   Our stock number: 51483

16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP

Click on picture below for larger version
16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP
16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP16 STND YODER Building Panel Roll Forming Line, 54 RS, .015 -.030 Thk, 100 HP

SPECIFICATIONS:

Coil Weight, Max.: 40,000 Lbs.
Coil Width, Max.: 54"
Thickness: 0.015" to 0.030" @ 50,000 PSI Tensile
Shearing Lengths: 10' to 40'
Speed: 15 to 120 FPM
Production Rate, Steel, Max.: 50,000 Lbs./Hr.

PRODUCT:

Material: Cold Rolled Steel / Aluminum
Finshes: Plain, Embossed & Pre-Finished

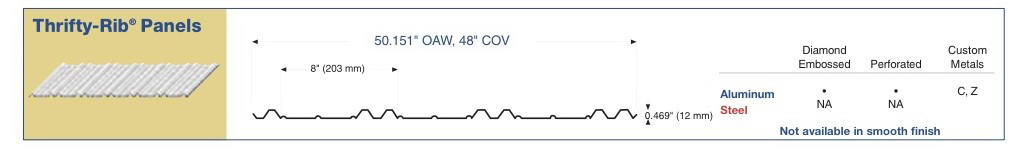

Panel Design: ALCO "Thrifty-Rib"
Bmbossing Design: Diamond Pattern

Panel Width, Max.: 54"
Panel Coverage: 40" Wide

Coil Width: 20"
Thickness: 29 to 22 Ga.

Electrical: 480/60/3

CONSISTING OF:

40,000 Lb. Double Cone Pay-Off Reel With Coil Car

54" x 80 Ton WEAN-UNITED Embossing Roll Stand With
50 HP DC Vari-Speed Drive & Pinch Roll Station

16-Stand YODER 54" Roll Former With
100 HP Vari-Speed Drive and Tooling

54" x 40 Ton TISHKEN Flying Cut-Off Shear With
Panel Profile Die

45' High Speed Drop Conveyor With Stacker System

Complete Operator's Control Station
