New and Used Metalworking Machinery

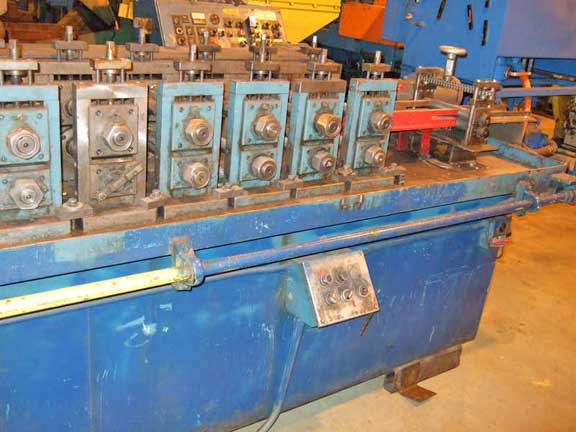

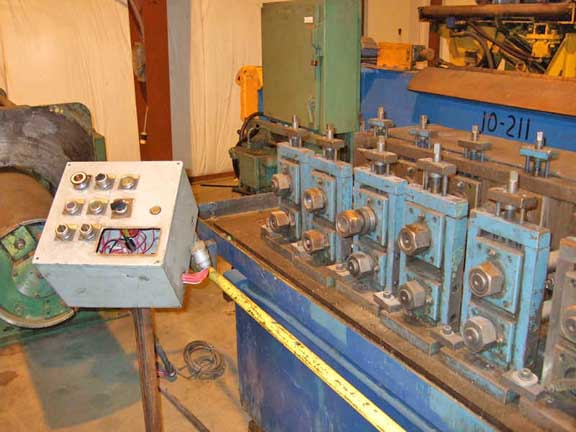

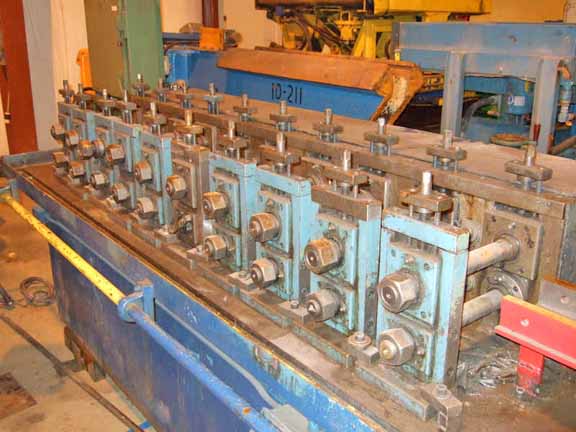

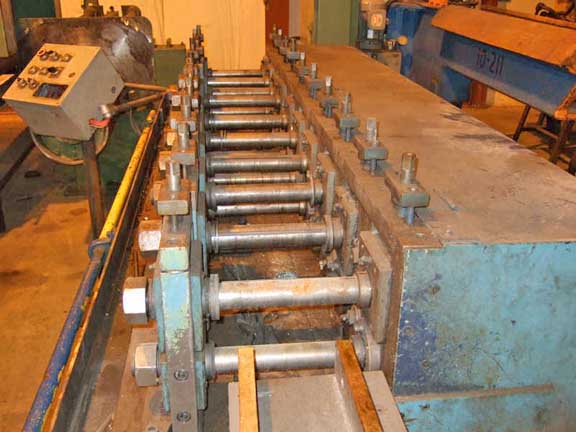

10 STND PEARSON Roll Former, 1.5" Spdl, 8.5" RS, 1" Vert, 8" Horiz, 10 HP   Our stock number: 48585

10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP

Click on picture below for larger version
10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP
10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP10 STND PEARSON Roll Former, 1.5 Spdl, 8.5 RS, 1 Vert, 8 Horiz, 10 HP

AGE: N/A

SPECIFICATIONS:

No. of Stands: 10
Roll Space: 8.5"
Shaft Diameter: 1.5"
Vertical Adjustment: 1"
Horizontal Spacing: 8"
Base to Center of Bottom Shaft: 4"
Line Speed: 18 - 50 FPM Approx.

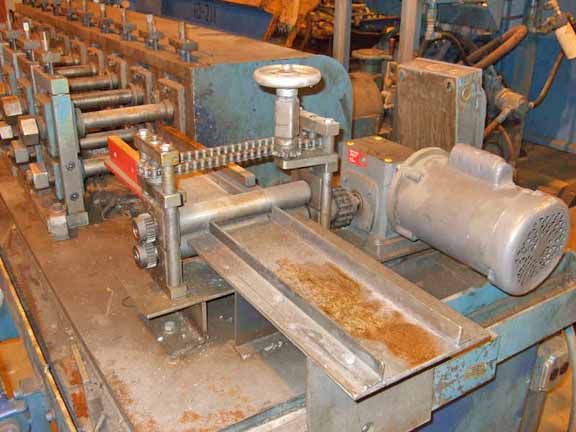

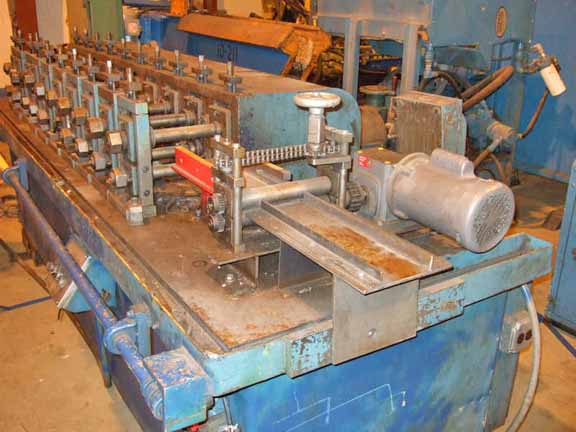

ENTRY DRIVEN PINCH ROLLS:
1.625" Dia. x 10" Face Rolls
1/4 HP Baldor AC Motor, 1725 RPM, 115/230 Volt
Thru Right Angle Reducer w/25:1 Ratio

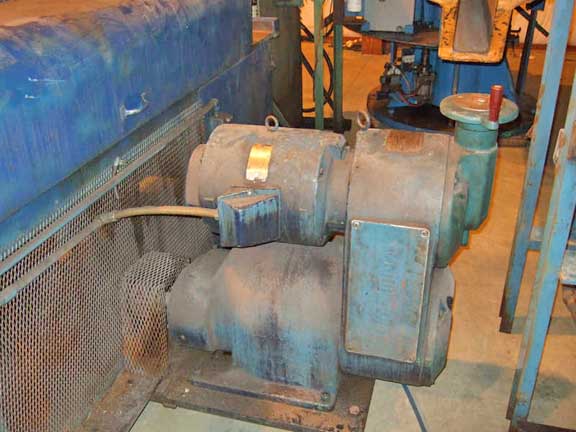

REEVES VARI-DRIVE:
6.2:1 Ratio
10 HP, 220/440/208 Volt
93 - 280 RPM Out

Overall Dimensions: 132" L x 82" W x 50" High
Weight: 10,000 Lbs.

At Location...............................................
**PHOTO AVAILABLE
