72" x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line   Our stock number: 48462

72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line

Click on picture below for larger version
72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line
72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line72 x 10 Ga x 25,000 Lb ROWE Cut-To-Length Line

AGE: 1971

SPECIFICATIONS:

Coil Weight, Max.: 25,000 Lbs.
Coil Width: 24" to 72"
Coil Thickness, Mild Steel: .020" to .140"
Line Speed: 160 FPM
Cut Length, Max.: 192"

CONSISTING OF:

Floor-Standing Coil Car

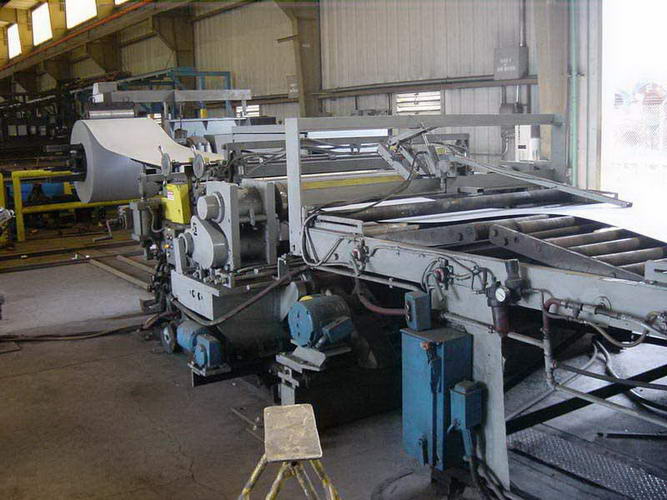

Mandrel-Type Uncoiler:

Powered Expansion
Feed-Up Motor
Motorized Hold-Down Roll

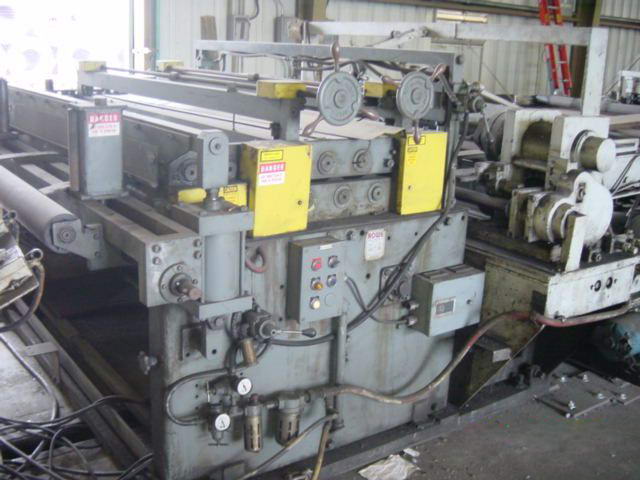

Coil Straightening Machine:

Powered Pinch Rolls
Adjustable Work Rolls
AC Main Drive

Edge Trimming Unit

Adjustable Hump Table

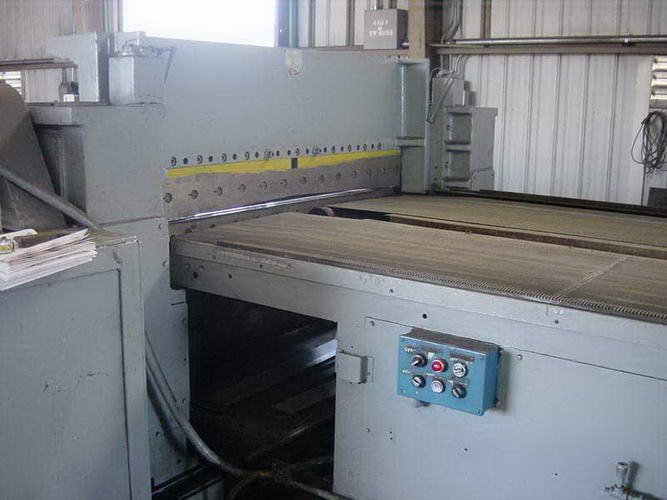

Wysong Mechanical Shear:

Air Clutch & Brake
Bow-Tie Blades

Powered Belt Conveyor

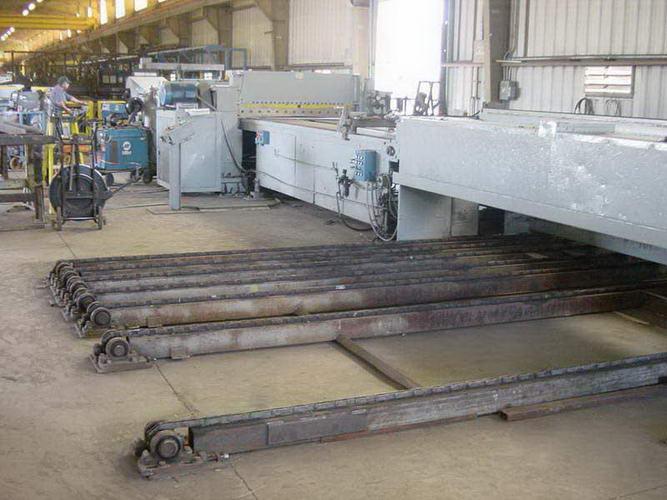

Drop-Type Stacker with Chain-Side Discharge Conveyor

At Location ...........................
Photos Available
