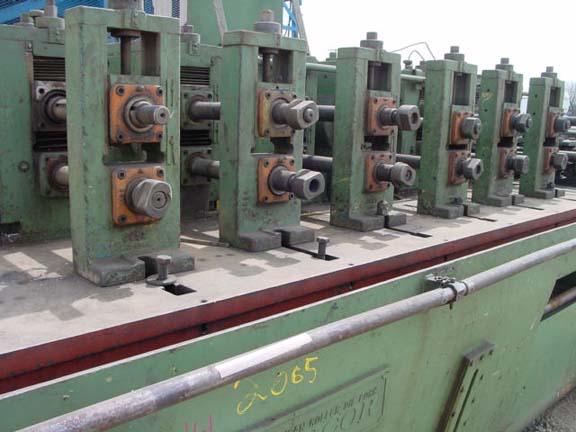

7 STND ARDCOR Roll Former, 1-3/4" Spdl, 10" RS, 14" Horiz, 4" to 7" Vert, 10 HP   Our stock number: 47973

7 STND ARDCOR Roll Former, 1-3/4 Spdl, 10 RS, 14 Horiz, 4 to 7 Vert, 10 HP

Click on picture below for larger version
7 STND ARDCOR Roll Former, 1-3/4 Spdl, 10 RS, 14 Horiz, 4 to 7 Vert, 10 HP7 STND ARDCOR Roll Former, 1-3/4 Spdl, 10 RS, 14 Horiz, 4 to 7 Vert, 10 HP7 STND ARDCOR Roll Former, 1-3/4 Spdl, 10 RS, 14 Horiz, 4 to 7 Vert, 10 HP

SPECIFICATIONS:

Number of Stands: 6
Line Direction: Right to Left
Spindle Diameter: 1-3/4"
Roll Space: 10"
Horizontal Center: 14"
Adjustment: 4" - 7"
Base Top to Center Lower Spindles: 5-5/8"
Spindle Key Size: 5/16" x 5/32"

EQUIPPED WITH: Entry Guide
Coolant Pump
electrical Panel & Push Buttons

Motor Data: 10 HP, 1200 RPM

NOTE: Missing (1) Outboard Stand

Overall Dimensions: 14' x 4' x 6'
Weight: 6,500 Lbs.
