GROTNES MODEL 972745 HEAVY DUTY VERTICAL TYPE METAL FORMING & SHRINKING SYSTEM   Our stock number: 47420

GROTNES MODEL 972745 HEAVY DUTY VERTICAL TYPE METAL FORMING & SHRINKING SYSTEM

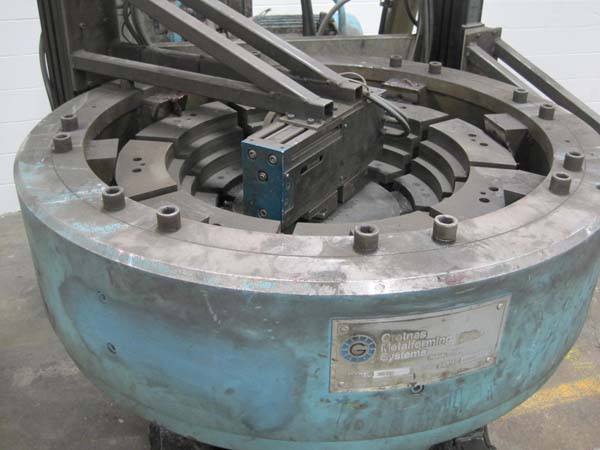

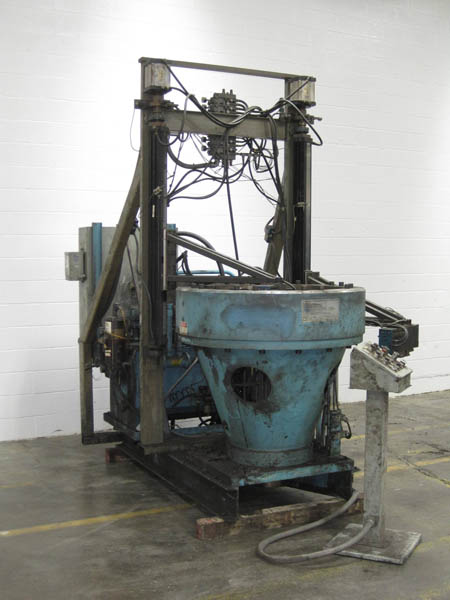

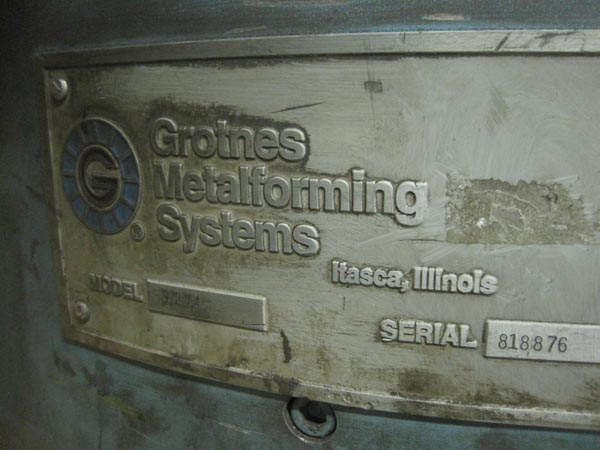

Click on picture below for larger version
GROTNES MODEL 972745 HEAVY DUTY VERTICAL TYPE METAL FORMING & SHRINKING SYSTEMGROTNES MODEL 972745 HEAVY DUTY VERTICAL TYPE METAL FORMING & SHRINKING SYSTEM

AGE: 1997

SPECIFICATIONS:

CAPABILITIES: Max. Machine Production Rate: 360/Hr - 100%

Efficiency
Capacity: 90 Tons
Tube End Reducing
Custom Shape Forming
Tube End Sizing
Index Type Reducing Using Stepped Tooling
Nominal Jaw Shrunk Diameter: 30"
Jaw Height: 3"
Max. Diametral Retraction: 2.14
Max. Hydraulic Pressure: 2500 PSI

EQUIPPED WITH: 8-Segment Type Die Set
Miller Large Bore Heavy Duty Cylinder (10" Bore

x 4" Stroke)
Allen Bradley #SLC500 PLC & Related Controls
Pedestal Type Operator Control Station
Power Part Infeed/Outfeed System for Automatic

Operation
Used Die Set Mounted in Machine
Electrics - 230/460/3/60

Motor Data: 30 HP Integrated Hydraulic System

At Location...............................................
**PHOTO AVAILABLE
