New and Used Metalworking Machinery

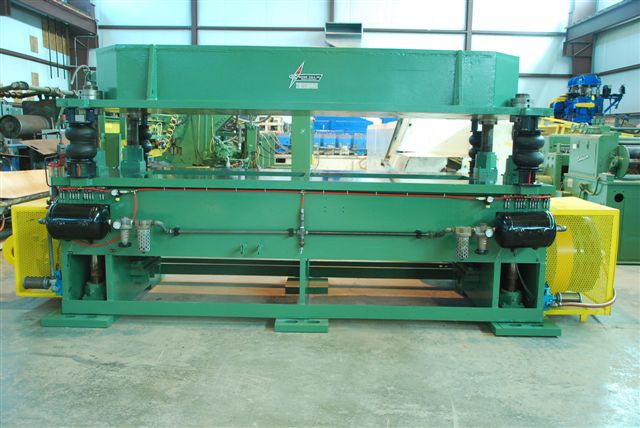

80 Ton ASC 4-Post Cut-Off, 2" Str, 15" to 18" SH, 117" x 29" Bet Posts, 15 HP   Our stock number: 47197

80 Ton ASC 4-Post Cut-Off, 2 Str, 15 to 18 SH, 117 x 29 Bet Posts, 15 HP

Click on picture below for larger version
80 Ton ASC 4-Post Cut-Off, 2 Str, 15 to 18 SH, 117 x 29 Bet Posts, 15 HP80 Ton ASC 4-Post Cut-Off, 2 Str, 15 to 18 SH, 117 x 29 Bet Posts, 15 HP80 Ton ASC 4-Post Cut-Off, 2 Str, 15 to 18 SH, 117 x 29 Bet Posts, 15 HP80 Ton ASC 4-Post Cut-Off, 2 Str, 15 to 18 SH, 117 x 29 Bet Posts, 15 HP

SPECIFICATIONS:

Stroke: 2"
Shut Height: 15" to 18"
Distance Between Posts: 117" LR x 29" FB
Post Diameter: 4"
Strokes Per Minute: 30
Distance Floor To Platen: 42-1/4"

EQUIPPED WITH:

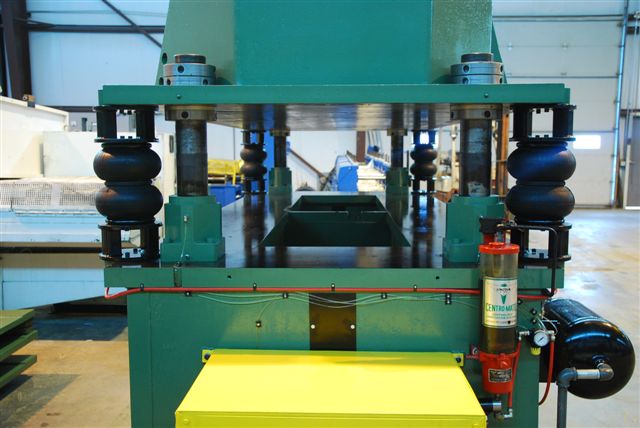

Centro-Matic Centralized Lube System
Wichita Air Tube Disc Clutch

MOTOR DATA: 15 HP, 230/460/60/3, 1800 RPM

At Location ...........................
Photos Available
