New and Used Metalworking Machinery


MODEL 1130 BRYANT Internal Grinder, 30" Chuck, 36" Swing, 12" Grinding Str. Max.   Our stock number: 47075

MODEL 1130 BRYANT Internal Grinder, 30 Chuck, 36 Swing, 12 Grinding Str. Max.

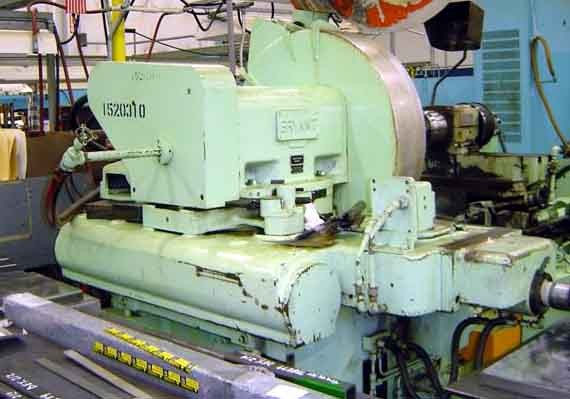

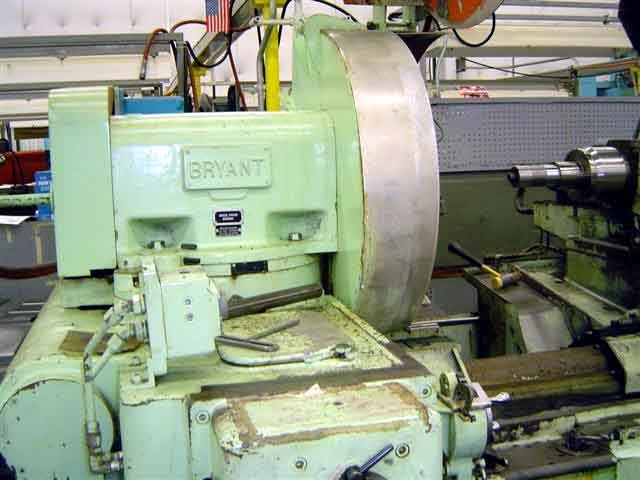

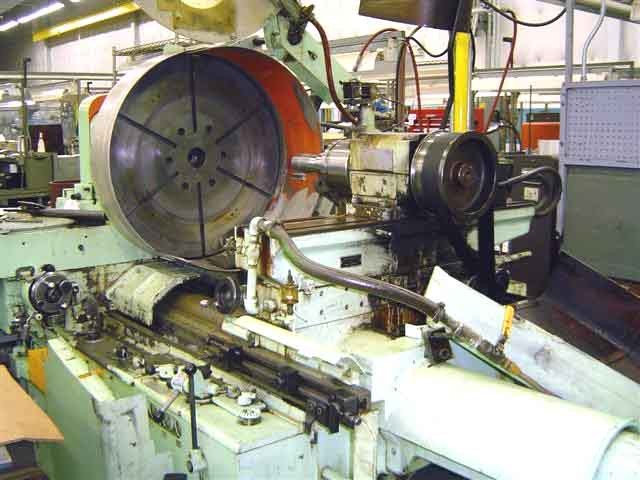

Click on picture below for larger version
MODEL 1130 BRYANT Internal Grinder, 30 Chuck, 36 Swing, 12 Grinding Str. Max.MODEL 1130 BRYANT Internal Grinder, 30 Chuck, 36 Swing, 12 Grinding Str. Max.

AGE: 1980
MODEL NUMBER: 1130

SPECIFICATIONS:

Chuck: 30" Face Plate
Swing, Max.: 36"
Grinding Stroke: 3/8" to 12"
Traverse Stroke: 20"
Gridning Spindle: 6500 RPM
Workhead Adjustment: To 15 Degrees
Grinds Included Angle: To 30 Degrees
Work Spindle: 20 to 260 RPM
Cross Travel: 16"

CONDITION: Good, As Taken Directly from Aerospace Service

OVERALL DIMENSIONS: 108" x 101" (Includes Coolant Tank)
WEIGHT: 14,000 Lbs.

At Location ...........................
Photos Available
