New and Used Metalworking Machinery

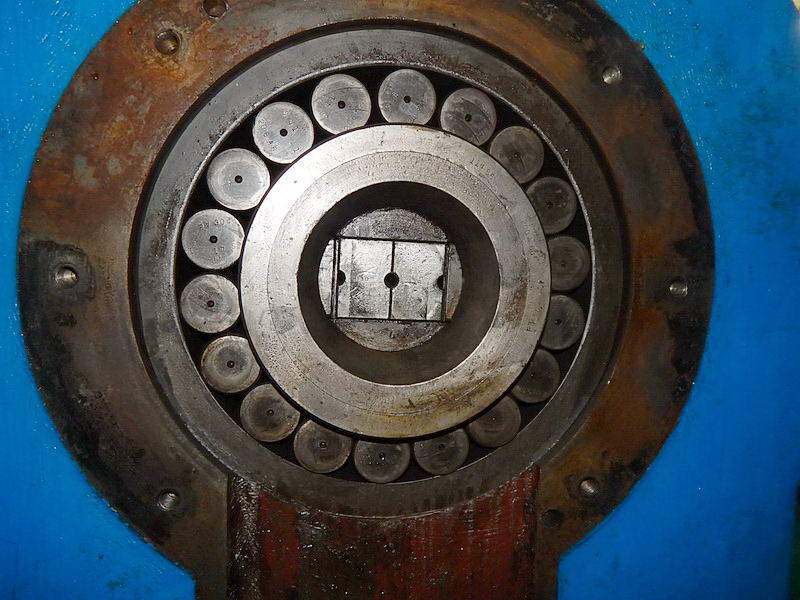

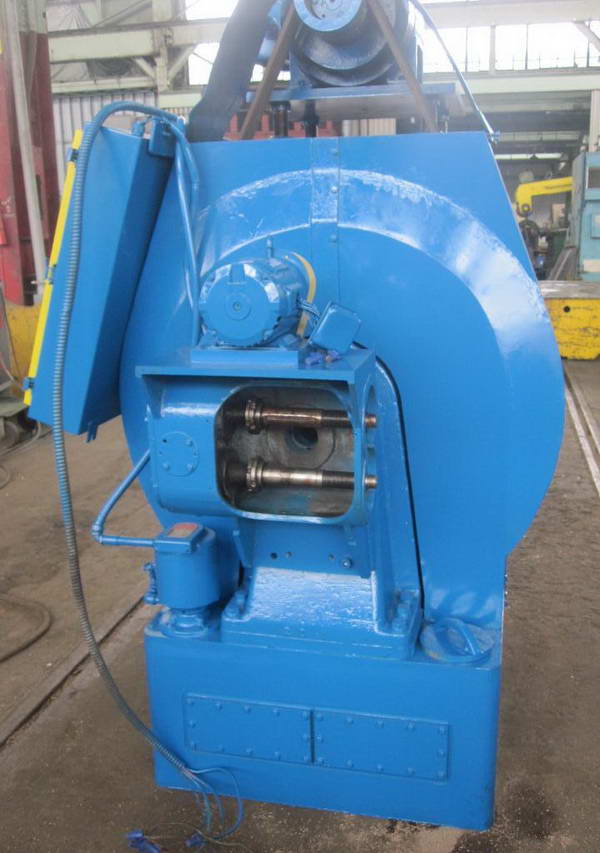

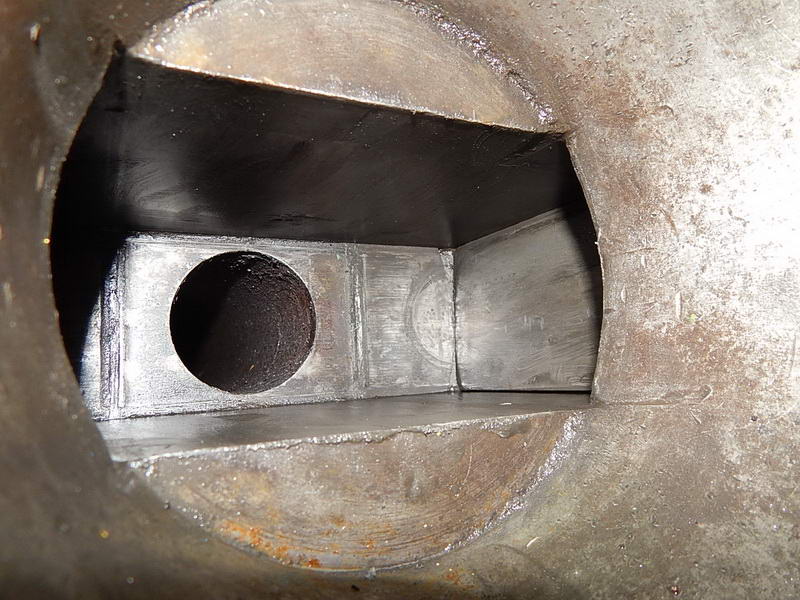

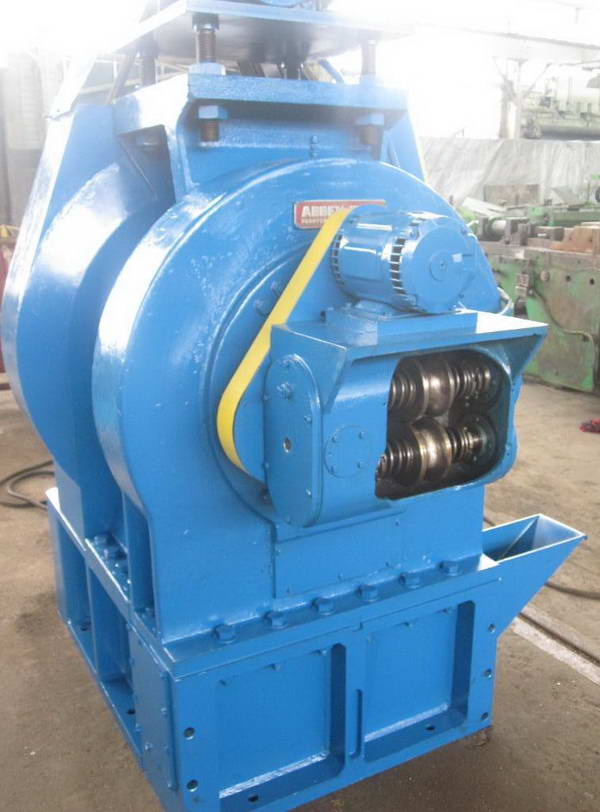

2" ABBEY ETNA NO. 206 Swager, 6" Die Length, Front & Rear Thru Feed Type Feeder   Our stock number: 44228

2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder

Click on picture below for larger version
2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder
2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder2 ABBEY ETNA NO. 206 Swager, 6 Die Length, Front & Rear Thru Feed Type Feeder

MODEL NUMBER: 206


SPECIFICATIONS:

Capacity, Tube, Max.: 2"
Capacity, Solid, Max.: 1"
Roll Diameter: 2-3/8"
Number Of Rolls: 18
Die Width: 3-1/4"
Die Thickness: 2-1/4"
Die Length: 6"
Hole Through Spindle: 2-9/16"

EQUIPPED WITH:

Front & Rear Driven Pinch Type Through Feed Roll Feeder

MOTOR DATA: 15 HP

F.O.B. ...........................
Photos Available
