New and Used Metalworking Machinery


10 STND DAHLSTROM Roll Former, 1-1/2" Spdl Dia, 5" RS, 10 HP   Our stock number: 44046

10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP

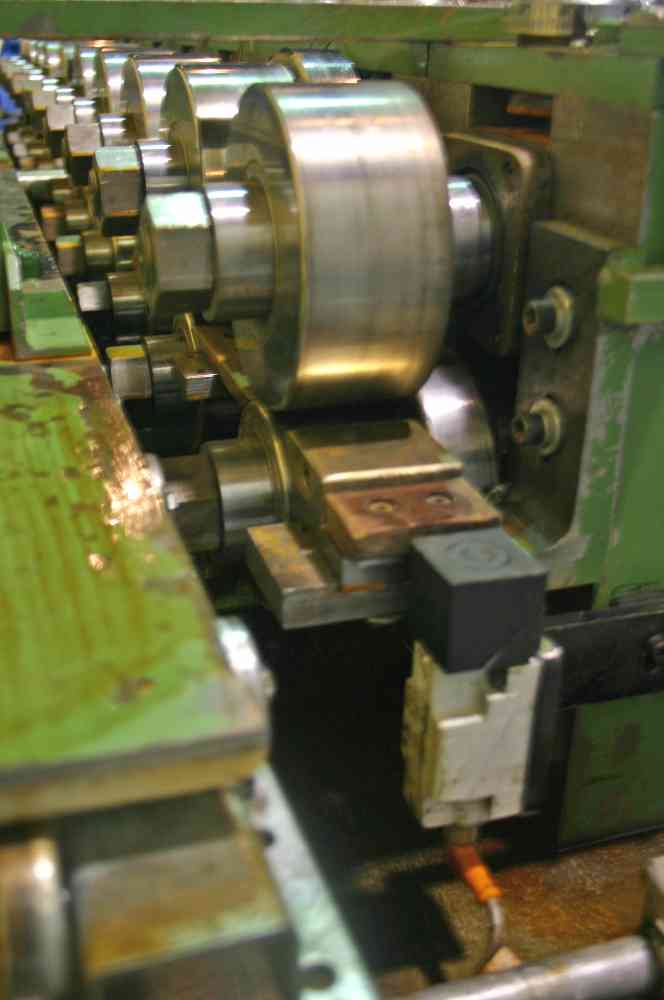

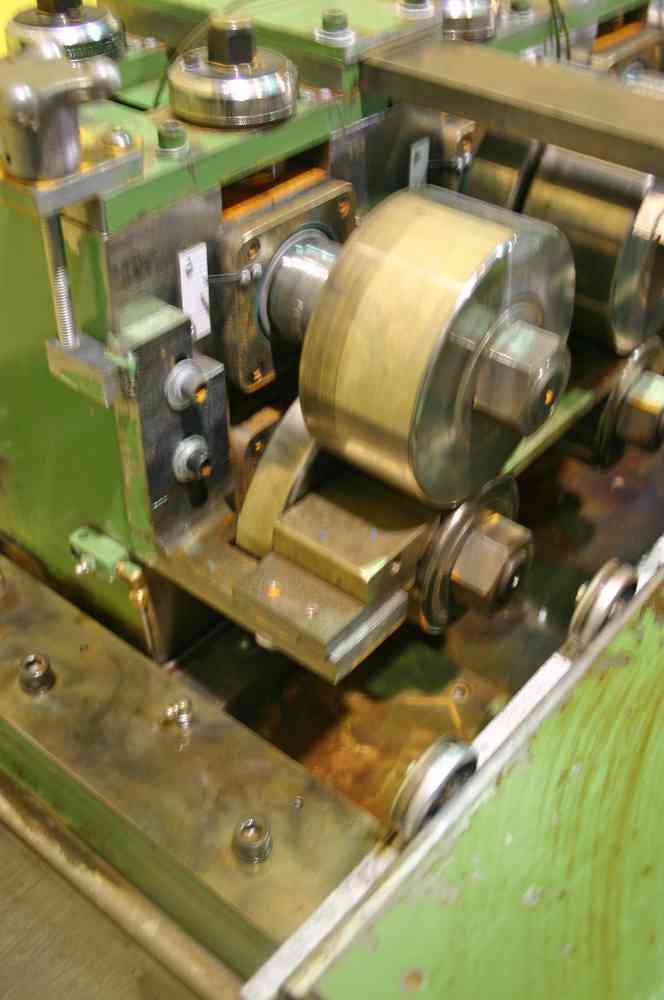

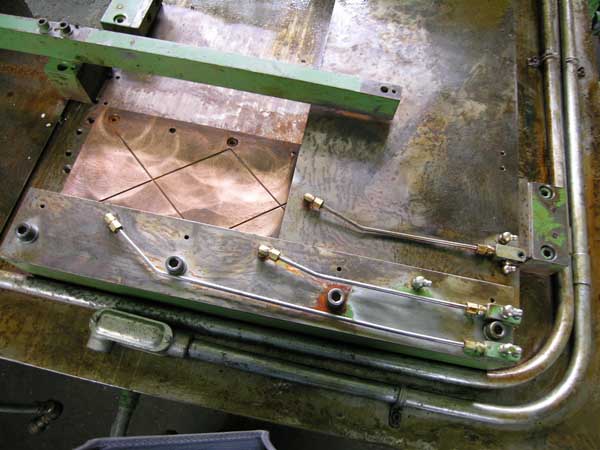

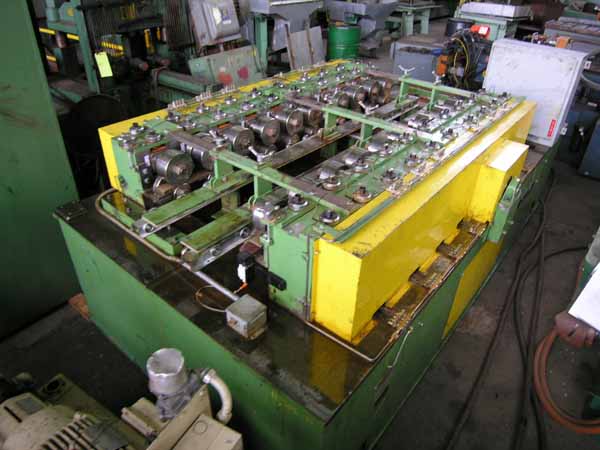

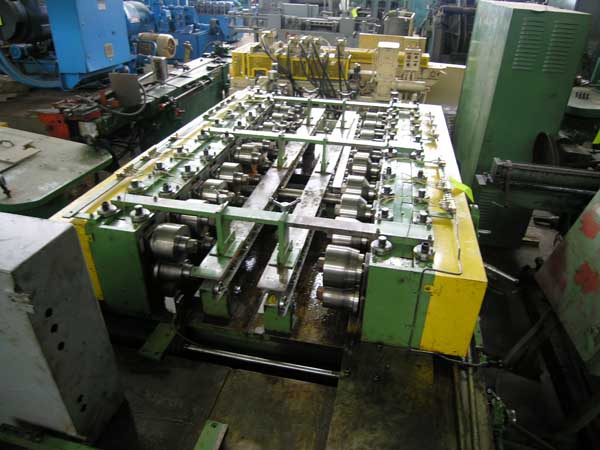

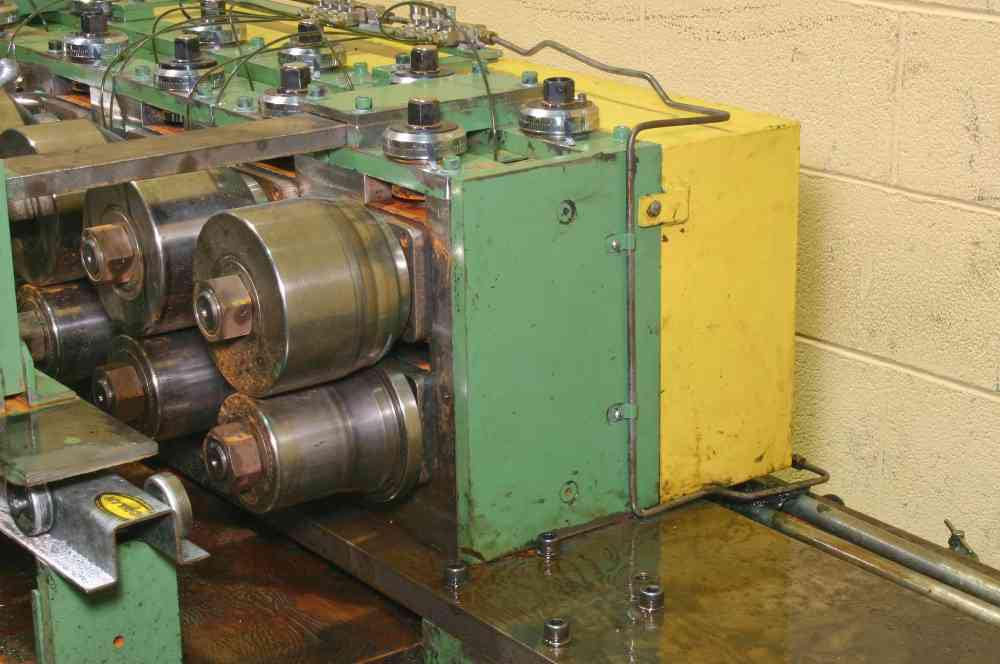

Click on picture below for larger version
10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP
10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP10 STND DAHLSTROM Roll Former, 1-1/2 Spdl Dia, 5 RS, 10 HP

SPECIFICATIONS:

Number Of Stands On Each Side: 10
Spindle Diameter: 1-1/2"
Roll Space: 5"
Horizontal Centers: 8"
Vertical Adjustment: 1"
Blank Width: 18" to 28"
Centerline Of Lower Spindle To Base: 6"
Passline Height: 40"
Roll Range: 4" to 5"
Speed: 100 FPM

NOTE: The Right Side Turns up a Lip up to 1-1/2" & the Left Side

11/16".

EQUIPPED WITH:

One Shot Lubrication
Double Support Cantilever Drive

MOTOR DATA: 10 HP

Loaded on Truck ........................... Toledo, OH
Photos Available
