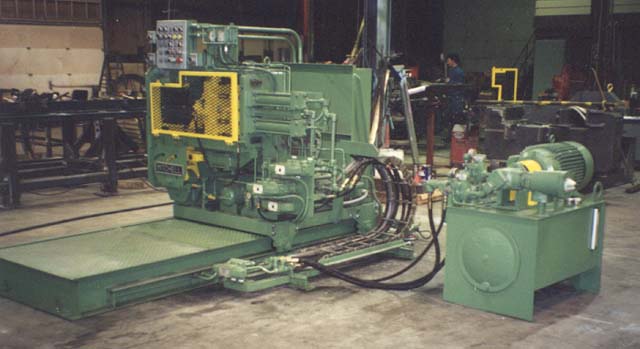

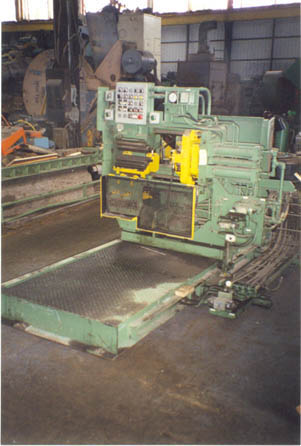

Push Pointer, MITCHELL, 33,000 Lb Rated Cap, 13" Gripper Jaw Length, 20 HP   Our stock number: 43239

Push Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HP

Click on picture below for larger version
Push Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HPPush Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HPPush Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HP
Push Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HPPush Pointer, MITCHELL, 33,000 Lb Rated Cap, 13 Gripper Jaw Length, 20 HP

AGE: 1978, Rebuilt in 1998

Originally built for Nelson Steel & Wire. It was used to point

coiled rod coming off of a horizontal payoff going to a vertical

bull block. Pointer slides into alignment between payoff and

drawer to point the coil then slides back out of the way.

SPECIFICATIONS:
Capacity: Rated - 33,000 Lbs. @ 1989 PSI
Maximum - 41,480 Lbs. @ 2500 PSI

Automatic Cycle:
(1) or (2) Die Reduction in Point Mode or Nibble Mode:
Die #1: Up to 4 Nibble Strokes
Die #2: Up to 4 Nibble Strokes

Pointing Speeds: Advance - 212 IPM @ 2000 PSI
Return - 271 IPM @ 1000 PSI

Die Holder: 2-Hole Rotary W/4.010" Round x 2-9/32" Deep Cavities
Point Length: Automatic By (3) Position Selector Switch
Maximum Travel of Dies: 12"
Length of Gripper Jaws: 13"
Die Index Mechanism: Hydraulic Cylinder
Clamping Mechanism: Hydraulic Cylinder & Double Toggle
Traverse Mechanism: Hydraulic Motor

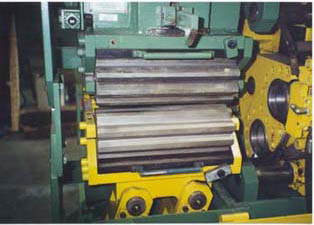

Tube Gripper Jaws: Octagonal - Quick Rotate Type (8 Sided)
Current Grip Sizes: .625", .687", .750", .812", .875",

.937", 1", 1.062"

Current Est. Pointing Dies for Taking 1-1/16" Down to 7/8" in (2)
Hits.
Hits.

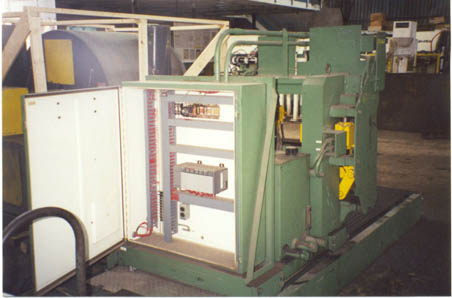

EQUIPPED WITH: Push-Button & Controls; Vickers Pumps & Valves;

MOTOR DATA: Hydraulic - 20 HP Reliance, 230/460/60/3-1160 RPM
Coolant - 1/2 HP Reliance, 230/460/60/3-1140 RPM

O.A. DIMENSIONS: 6' W x 11'4" L x 6'2" High
WEIGHT: 6,900# - Approx.

NOTE: Machines appears to be nearly unused since 1998 rebuild.

Loaded on Truck.................Toledo, (Hendon St. Whse.) OH
**PHOTO & PRINTS AVAILABLE
