75 TON BLISS MODEL 23 OBI PRESS   Our stock number: 41212

75 TON BLISS MODEL 23 OBI PRESS

Click on picture below for larger version

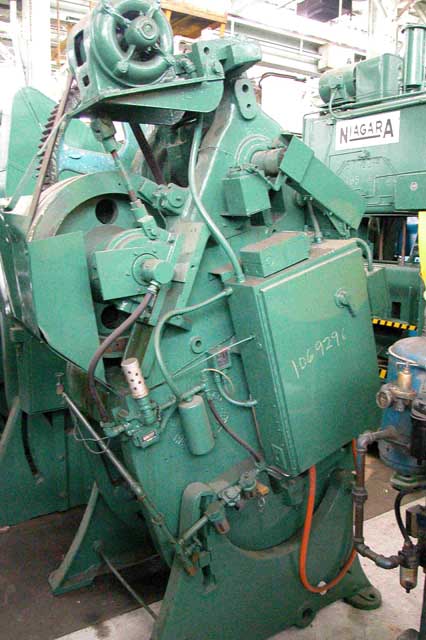

75 TON BLISS MODEL 23 OBI PRESS


SPECIFICATIONS:
MODEL - 23
STROKE - 8"
SHUT HEIGHT (SDAU) - 15"
SLIDE ADJUSTMENT - 3"
STROKES PER MINUTE - 40
SLIDE AREA - 14"FB X 17"LR
BED AREA - 24"FB X 32"LR
HOLE IN BED - 14"FB X 18"LR X 18" DIA.
BED BOLSTER SIZE - 24"FB X 32"LR X 3"THICK
DISTANCE BETWEEN UPRIGHTS - 18"
DISTANCE FROM BED TO GIBS - 27"
THROAT - 12.5"
SINGLE BACK GEARED
EQUIPPED WITH:
AIR CLUTCH
AIR BRAKE
MANUAL SLIDE ADJUSTMENT
DUAL PALM BUTTON CONTROLS
OPERATOR'S CONTROLS W/INCH, SINGLE & CONTINUOUS
BIJUR LUBRICATION
DIGITAL BRAKE MONITOR
CONDITION: GOOD
MOTOR: 7.5 HP/220-440/60/3/1660 RPM
OVERALL DIMENSIONS - 78"FB X 66"LR X 11'4"HIGH
