10-Stand MAPLEWOOD Duplex Roll Former, 1-1/2" Spdl, 8" Horiz, 3.75" - 4.5" Vert   Our stock number: 32436

10-Stand MAPLEWOOD Duplex Roll Former, 1-1/2 Spdl, 8 Horiz, 3.75 - 4.5 Vert

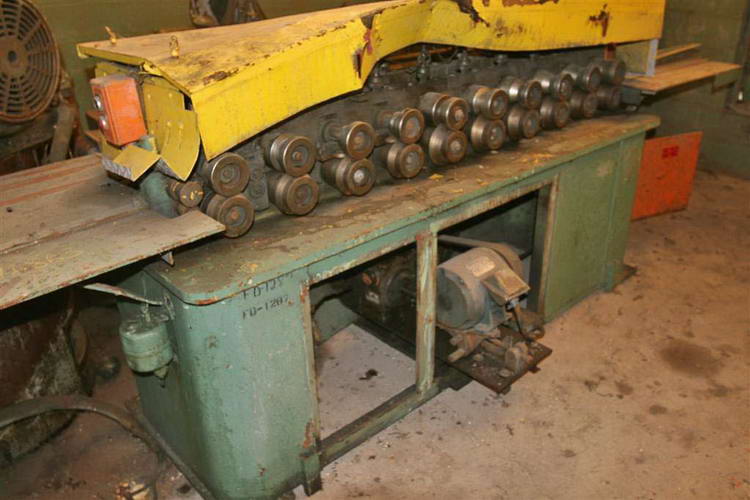

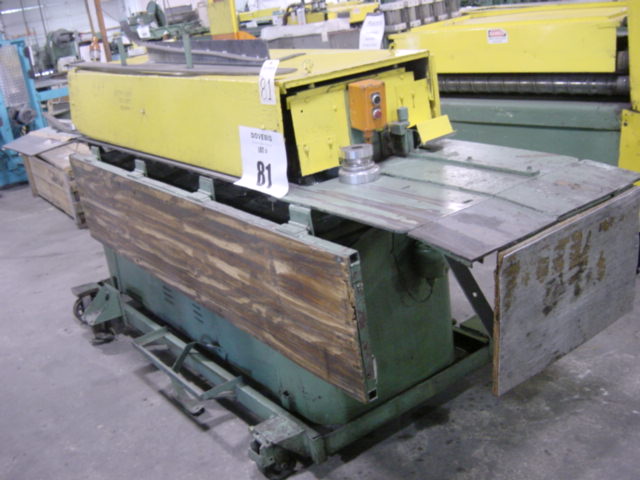

Click on picture below for larger version
10-Stand MAPLEWOOD Duplex Roll Former, 1-1/2 Spdl, 8 Horiz, 3.75 - 4.5 Vert10-Stand MAPLEWOOD Duplex Roll Former, 1-1/2 Spdl, 8 Horiz, 3.75 - 4.5 Vert

SPECIFICATIONS:

Number Of Stands on Each Side: 10
Horizontal Distance Between Spindles: 8"
Vertical: 3-3/4" to 4-1/2"
Centerline of Lower Spindle To Base: 4-1/2"
Spindle Diameter: 1-1/2"
Shaft Extension: 3-3/4"
Pass Line Height: 36"

EQUIPPED WITH:

Gear Driven, Upper & Lower, Equal

MOTOR DATA: 3 HP, 230/460/3/60, 1745 RPM

OVERALL DIMENSIONS: 90" L x 36" W x 48" High
WEIGHT: 6,000 Lbs.
CONDITION: Good

Loaded On Truck .......................... Toledo, OH
Photos Available
