New and Used Metalworking Machinery

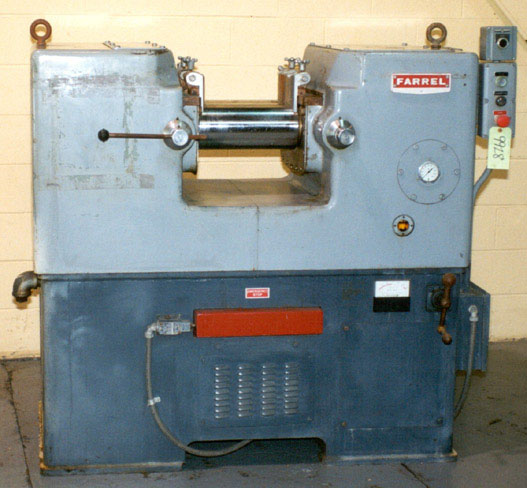

MIXING MILL #6FF350, 2-1/2 Lbs Batch, (2) 6" x 13" Cored Rolls, 7-1/2 HP   Our stock number: 29237

MIXING MILL #6FF350, 2-1/2 Lbs Batch, (2) 6 x 13 Cored Rolls, 7-1/2 HP

AGE: 1973

SPECIFICATIONS:

Batch Capacity: 2 Lbs.
(2) Cored Rolls: 6" Dia. x 13" Face
Distance Between Guides: 10-1/2"
Roll Speeds (Back / Front): 33 / 23-1/2 RPM
Max. Roll Temperature: 350 Degrees
Friction Ratio: 1.4:1

EQUIPPED WITH: Vertical Feed
Product Tray - 18" x 28"
Cored Rolls
(2) Roll Lateral Adjusting Knobs 0 - 150 MM
Reliance Speed Indicator Back Roll 0 - 60 FPM
Electrical Control Cabinet
Limit Switch Knee Operated

Motor Data: 7-1/2 HP, 230/460/3/60, Stearns Magnetic Brake

Overall Dimensions: 5'3" L x 2'9" W x 4'9" High
Weight: 5,500 Lbs. Approx.
Condition: Suggest Inspection of Equipment Prior to Sale.

Loaded on Truck.................Toledo, (Dorr St. Whse.) OH
**PHOTO, CATALOGUE INFO & ELECTRICAL DRAWINGS AVAILABLE
