#1 BAIRD, Four-Slide, 3/32" Soft Steel Wire, 3/4" Ribbon, 7-1/4" Feed Length   Our stock number: 28383

#1 BAIRD, Four-Slide, 3/32 Soft Steel Wire, 3/4 Ribbon, 7-1/4 Feed Length

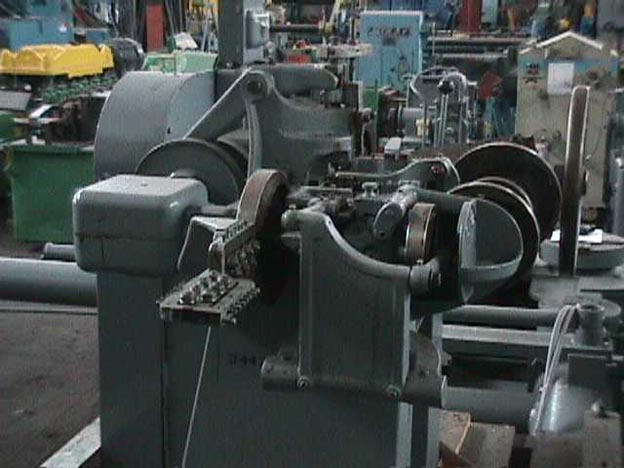

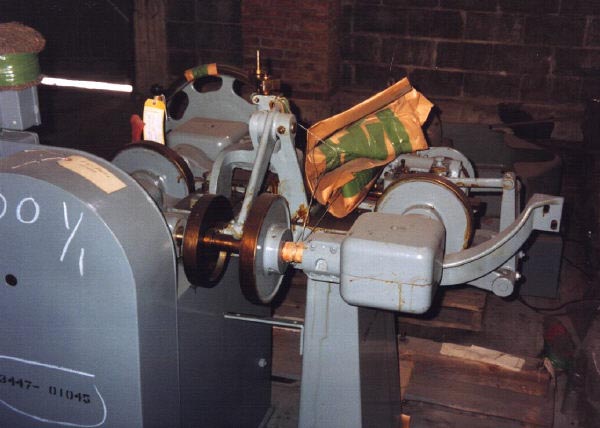

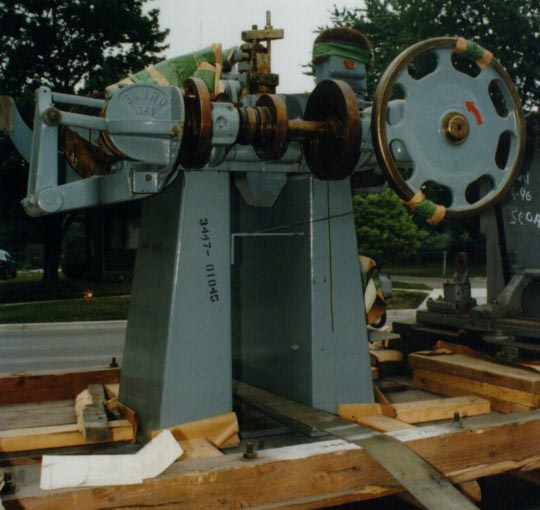

Click on picture below for larger version
#1 BAIRD, Four-Slide, 3/32 Soft Steel Wire, 3/4 Ribbon, 7-1/4 Feed Length#1 BAIRD, Four-Slide, 3/32 Soft Steel Wire, 3/4 Ribbon, 7-1/4 Feed Length#1 BAIRD, Four-Slide, 3/32 Soft Steel Wire, 3/4 Ribbon, 7-1/4 Feed Length

AGE: 1951

CATALOGUE SPECIFICATIONS:

Set Up for Wire

Soft Steel Wire Diameter, Maximum: 3/32"
Ribbon Width Capacity, Maximum: 3/4"
Front Slide Stroke w/Cam: 1"
Rear Slide Stroke w/Cam: 7/8"
Side Slide Strokes, W/Cam: 1-5/8"
Vertical Stroke, Range: 27/64"to 55/64"
Feed Length, Maximum w/out Stops: 7-1/4"
Feed Length, Maximum w/Stops: 6"
Cam Shafts, Diameter: 1-9/16"
Speed Range, Variable: 85 to 255 SPM

EQUIPPED WITH: Overhead Forming Post Attachment
Solid Cams
Variable Speed Drive
14 Roll 2-Plane Wire Straightener
Mechanical Clutch

Motor Data: 1 HP, Main Motor

Overall Dimensions: 4'6" x 3'8"
Weight: 1,010 Lbs. Approximate
Condition: MINT, As Taken From Government Storage

Loaded On Truck...........Toledo, (Campbell St. Whse.) OH
***PHOTO & DIGITAL PHOTO AVAILABLE
